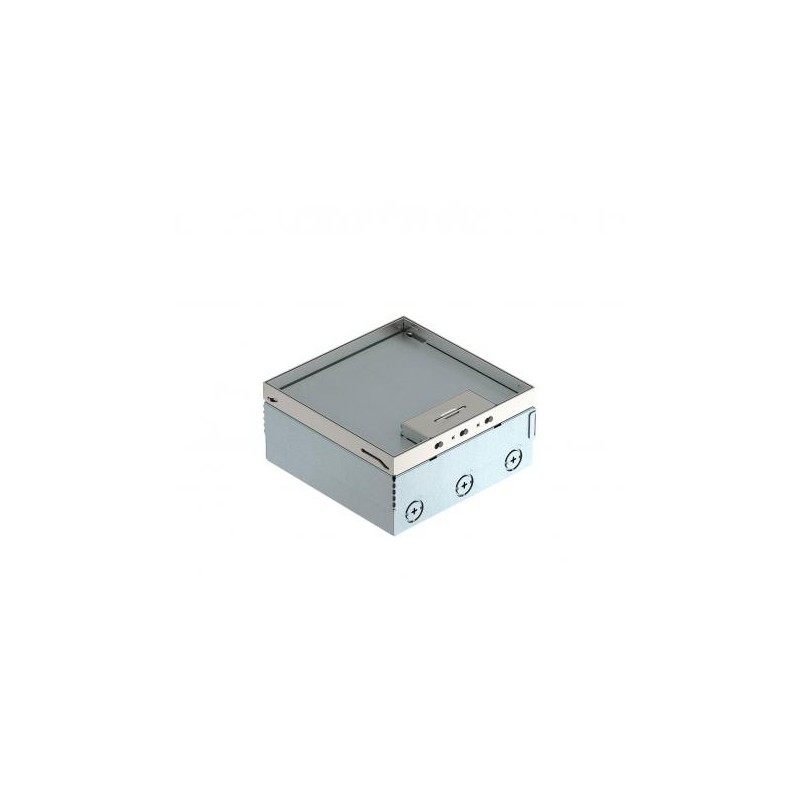

UDHOME4 2V V 7427200 OBO BETTERMANN UNIT PORTAMEC. FULL UDHOME4 2V V
UDHOME4 2V V
7427200
OBO BETTERMANN
UNIT PORTAMEC. FULL UDHOME4 2V V
UDHOME4 floor box, with universal support UT3, triple VDE, stainless steel. Square floor box for use in dry-cleaned cavity and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M25). With two UT3 universal supports and a triple socket. Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 95 mm, the height-adjustment range + 30 mm.Surfaces visible in the floor covering made of stainless steel.
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Cable outlet version | Swivellable cord outlet |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 18,2067 kg CO2e / 1 Piece |
| Cover version | Floor covering recess |
| Equipment | 2 UT3, triple VDE socket |
| Floor covering protection frame | no |
| Floor covering thickness | 15 mm |
| Floor height, max. | 125 mm |
| Floor height, min. | 95 mm |
| Height-adjustment range, max. | 125 mm |
| Height-adjustment range, min. | 95 mm |
| Length | 202 mm |
| Length of external dimensions | 199 mm |
| Length of installation dimensions | 202 mm |
| Material | Stainless steel 1.4301 |
| Number of mounting boxes | 2 |
| Opening mechanism | Handle |
| Protection rating (IP) when unused | IP40 |
|---|---|
| Protection rating (IP) when used | IP20 |
| Protection rating IK code | IK10 |
| Screed height, max. | 110 mm |
| Screed height, min. | 95 mm |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | no |
| Suitable for underfloor ducts | no |
| Suitable for wet care | no |
| Version for | Square |
| Vertical load, large area | to 5,000 N |
| Vertical load, small area | to 3,000 N |
| Wide external dimensions | 199 mm |
| Wide installation dimensions | 202 mm |
| Width | 202 mm |
| With floor covering recess | yes |
Datasheet - PDF
