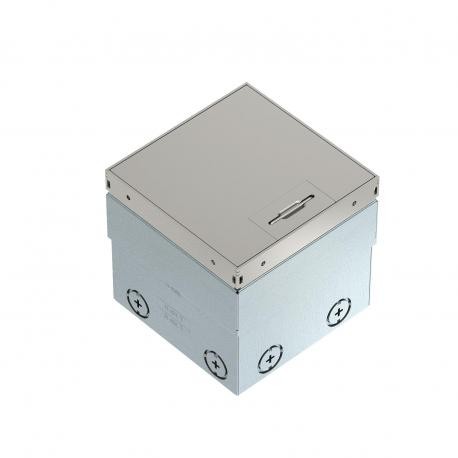

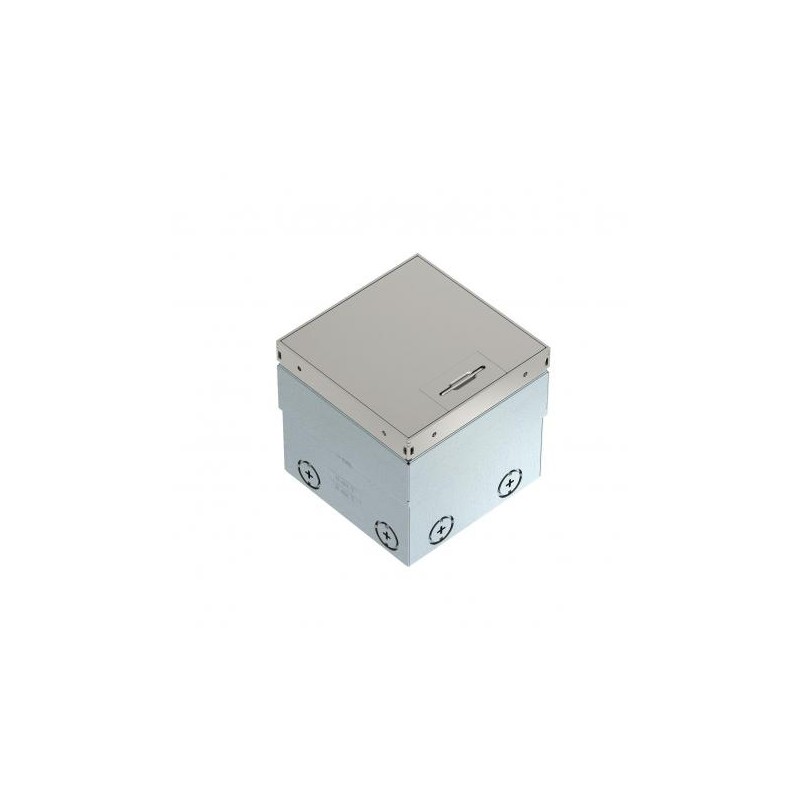

UDHOME2 GVN 7368332 OBO BETTERMANN Complete unit with double NF socket 140x140x110, stainless steel, A2
UDHOME2 GVN
7368332
OBO BETTERMANN
Complete unit with double NF socket 140x140x110, stainless steel, A2
PCEad complete UDHOME2 GVN with double NF socket 140x140x110 Stainless steel, A2
UDHOME2 floor socket, with cord outlet, without floor covering recess, 2x NF, stainless steel. Square floor socket for use in dry-care cavity and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M20/M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 100 mm, the height-adjustment range is +35 mm.Frame and cover made of stainless steel and visible in the floor covering.
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Application when unused | 6.101.1 Dry floor care |
|---|---|
| Application when used | 6.101.1 Dry floor care |
| Approvals | VDE |
| Cable outlet version | Swivellable cord outlet |
| CO2 Footprint (GWP) Cradle-to-Gate | 13,2768 kg CO2e / 1 Piece |
| Cover version | Decorative plate |
| Device support to accept mounting boxes | no |
| Dimension | 140x140x110 |
| Equipment | Double LF socket |
| Floor care | Dry |
| Floor covering protection frame | no |
| Floor height, max. | 135 mm |
| Floor height, min. | 100 mm |
| Frame version | Floor covering contact edge |
| Heavy-duty version | no |
| Height | 100 mm |
| Length | 140 mm |
| Material | Stainless steel |
| Nominal size for device installation units | 2 |
|---|---|
| Number of installable devices | 2 |
| Opening mechanism | Handle |
| Protection rating (IP) when unused | IP40 |
| Protection rating (IP) when used | IP20 |
| Protection rating IK code | IK10 |
| Standard | EN 50085-2-2 |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Suitable for screed-covered underfloor ducts | no |
| Suitable for screed-flush closed underfloor ducts | no |
| Suitable for wet care | no |
| Version for | Square |
| Vertical load, large area | to 15,000 N |
| Vertical load, small area | to 3,000 N |
| Width | 140 mm |
| With floor covering recess | no |
