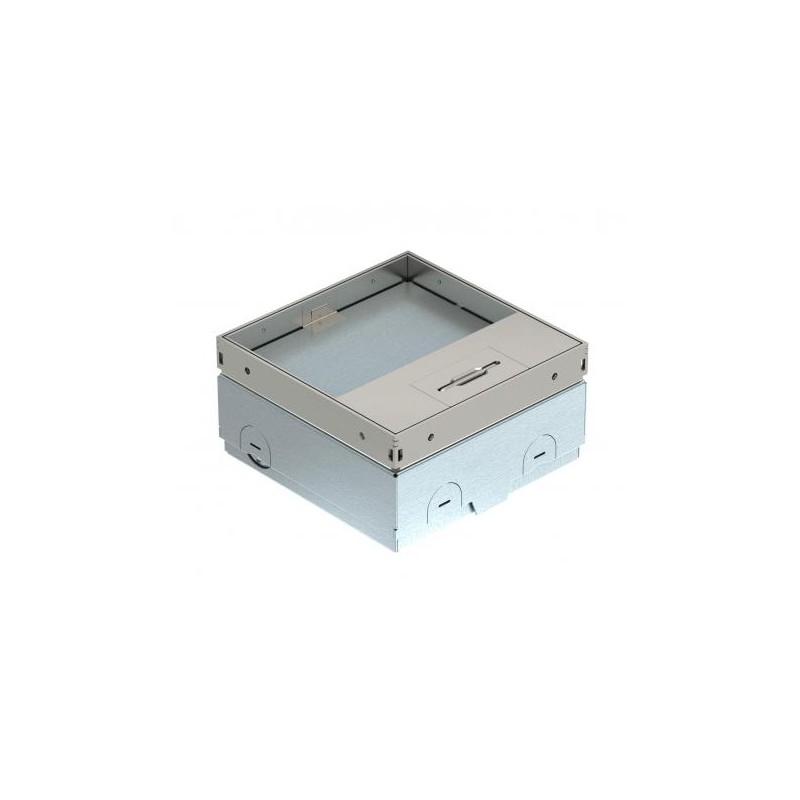

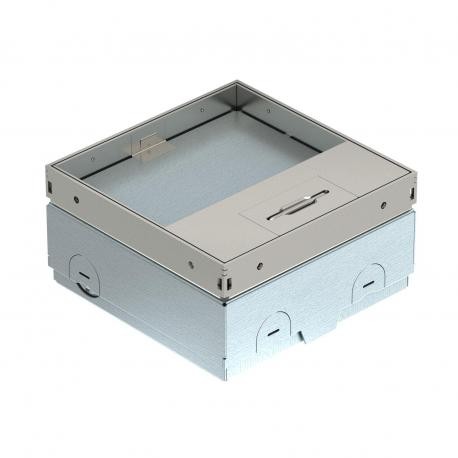

UDHOME-ONE GV15V 7368290 OBO BETTERMANN Complete unit UDHOME-ONE GV15V, with VDE socket 140x140x75 Stainless..
UDHOME-ONE GV15V
7368290
OBO BETTERMANN
Complete unit UDHOME-ONE GV15V, with VDE socket 140x140x75 Stainless steel, A2
Complete unit with VDE socket UDHOME-ONE GV15V
UDHOME-ONE floor socket, with floor covering recess, single protective contact socket, stainless steel. Square floor socket for use in dry-care systems and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M20/M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 75 mm, the height-adjustment range +30 mm. Frame and cover made of stainless steel and visible in the floor covering. Cover with floor covering recess. A protective contact socket is included in the delivery. A data socket can optionally be installed in the data technology plate. When delivered, the item is closed with a blanking plate.
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Application when unused | 6.101.1 Dry floor care |
|---|---|
| Application when used | 6.101.1 Dry floor care |
| Approvals | VDE |
| Cable outlet version | Swivellable cord outlet |
| CO2 Footprint (GWP) Cradle-to-Gate | 11,7005 kg CO2e / 1 Piece |
| Cover version | Floor covering recess |
| Device support to accept mounting boxes | no |
| Dimension | 140x140x75 |
| Equipment | Single VDE socket |
| Floor care | Dry |
| Floor covering protection frame | no |
| Floor covering thickness | 15 mm |
| Floor height, max. | 105 mm |
| Floor height, min. | 75 mm |
| Heavy-duty version | no |
| Height | 75 mm |
| Height-adjustment range, max. | 105 mm |
| Height-adjustment range, min. | 75 mm |
| Installation depth | 75 mm |
| Length | 140 mm |
| Material | Stainless steel |
|---|---|
| Number of installable devices | 2 |
| Number of SCHUKO sockets | 1 |
| Opening mechanism | Handle |
| Protection rating (IP) when unused | IP40 |
| Protection rating (IP) when used | IP20 |
| Protection rating IK code | IK10 |
| Seal installation option | no |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Suitable for screed-covered underfloor ducts | no |
| Suitable for screed-flush closed underfloor ducts | no |
| Suitable for underfloor ducts | no |
| Suitable for wet care | no |
| Version for | Square |
| Vertical load, large area | to 15,000 N |
| Vertical load, small area | to 3,000 N |
| Width | 140 mm |
| With floor covering recess | yes |
| Feature Name | Feature Value |
|---|---|
| Cover model (EF009212) | Square |
| Number of socket outlets with protective contact CEE 7/3 (type F) (EF000411) | 1 |
| With cable outlet in cover (EF015333) | Yes |
| Material cover (EF005414) | Stainless steel |
| With opening carpeting (EF004541) | Yes |
| Protective frame carpeting (EF004543) | No |
| Suitable for subfloor duct (EF006409) | No |
| Suitable for hollow floor (EF006410) | Yes |
| Suitable for double floor built-in (EF006411) | Yes |
| Suitable for wet cleaning (EF005109) | No |
| Min. built-in depth (EF005027) | 75 mm |
