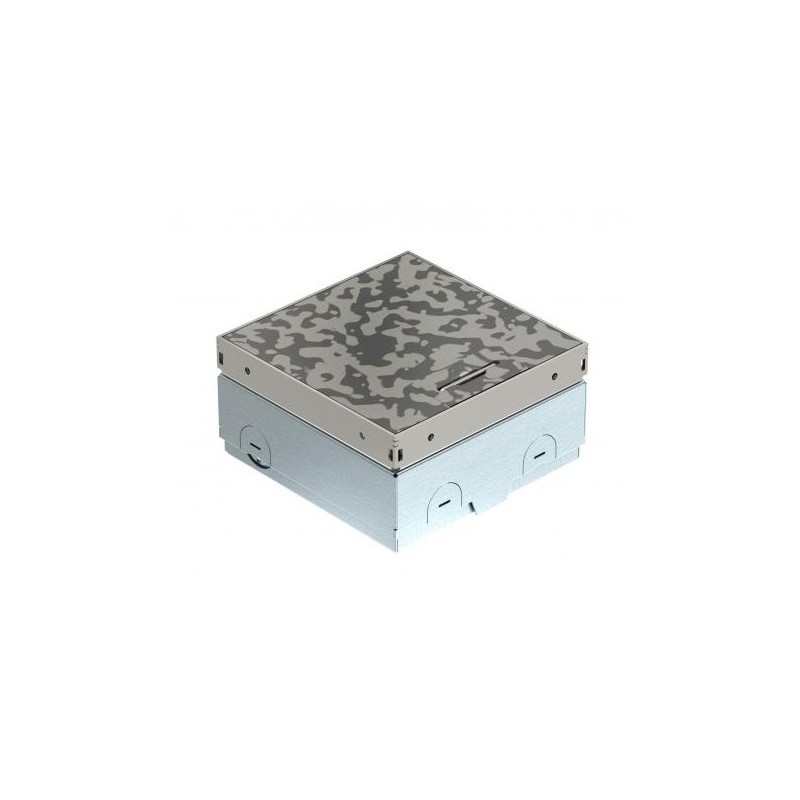

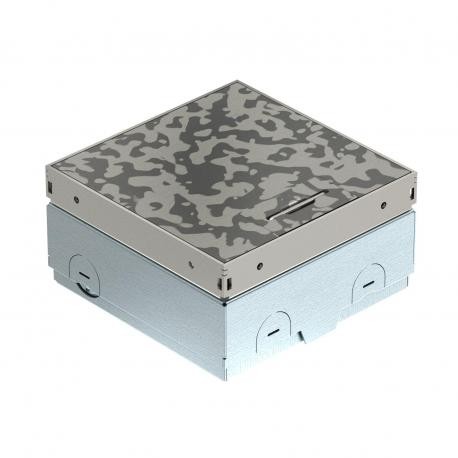

UDHOME-ONE GV D2 7368222 OBO BETTERMANN Complete unit UDHOME-ONE GV D2, empty, Spots 140x140x75
UDHOME-ONE GV D2
7368222
OBO BETTERMANN
Complete unit UDHOME-ONE GV D2, empty, Spots 140x140x75
UDHOME-ONE floor socket, without floor covering recess, freely equippable, stainless steel, decorative plate: spots. Square floor socket for use in dry-care systems and screed floors in indoor areas. Installation housing with pre-marked insertion openings for pipes (M20/M25). Cover adjustable to top edge of floor covering using four height-adjustment supports. The minimum installation depth is 75 mm, the height-adjustment range +30 mm. Frame and cover made of stainless steel and visible in the floor covering. Cover with decorative plate spots. Empty housing for a Modul45® installation device and a data socket. When delivered, the item is closed with a blind plate.
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Application when unused | 6.101.1 Dry floor care |
|---|---|
| Application when used | 6.101.1 Dry floor care |
| Approvals | VDE |
| Cable outlet version | Swivellable cord outlet |
| CO2 Footprint (GWP) Cradle-to-Gate | 11,4764 kg CO2e / 1 Piece |
| Device support to accept mounting boxes | no |
| Dimension | 140x140x75 |
| Equipment | Empty housing |
| Floor care | Dry |
| Floor covering protection frame | no |
| Floor height, max. | 105 mm |
| Floor height, min. | 75 mm |
| Heavy-duty version | no |
| Height | 75 mm |
| Length | 140 mm |
| Number of installable devices | 2 |
| Opening mechanism | Handle |
|---|---|
| Protection rating (IP) when unused | IP40 |
| Protection rating (IP) when used | IP20 |
| Protection rating IK code | IK10 |
| Seal installation option | no |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Suitable for screed-covered underfloor ducts | no |
| Suitable for screed-flush closed underfloor ducts | no |
| Suitable for underfloor ducts | no |
| Suitable for wet care | no |
| Version for | Square |
| Vertical load, large area | to 15,000 N |
| Vertical load, small area | to 3,000 N |
| Width | 140 mm |
| With floor covering recess | no |
| Feature Name | Feature Value |
|---|---|
| Cover model (EF009212) | Square |
| With cable outlet in cover (EF015333) | Yes |
| With opening carpeting (EF004541) | No |
| Protective frame carpeting (EF004543) | No |
| Suitable for subfloor duct (EF006409) | No |
| Suitable for hollow floor (EF006410) | Yes |
| Suitable for double floor built-in (EF006411) | Yes |
| Suitable for wet cleaning (EF005109) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
