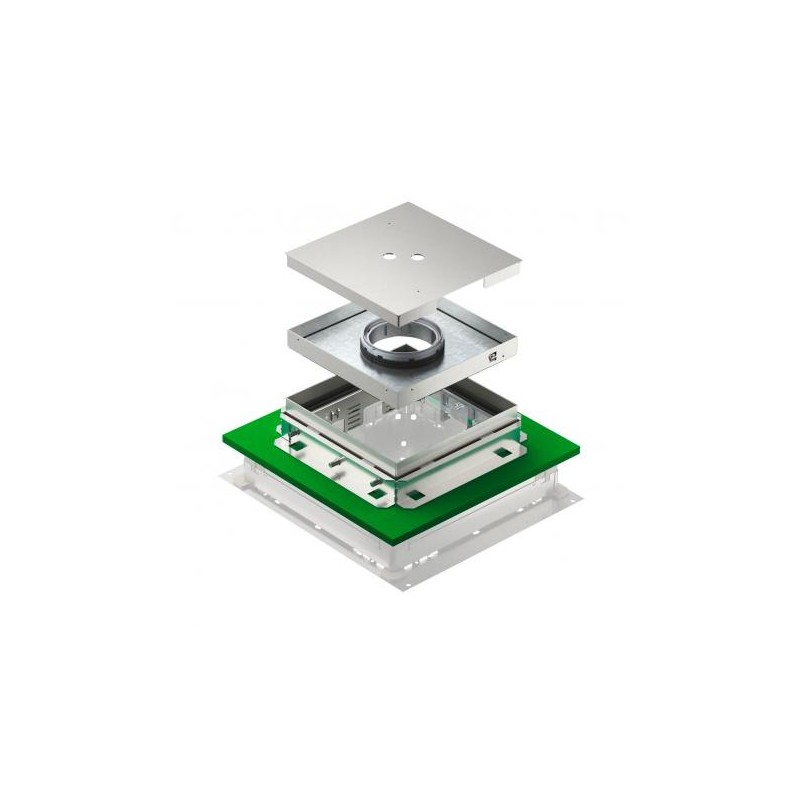

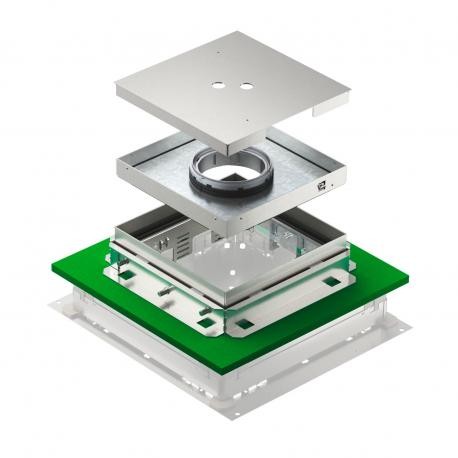

TRKFN 9 VS 250 7409605 OBO BETTERMANN Recessed square box TRKFN 9 VS 250, rectangular, outlet tuno 243x243x8..
TRKFN 9 VS 250
7409605
OBO BETTERMANN
Recessed square box TRKFN 9 VS 250, rectangular, outlet tuno 243x243x83 Stainless steel, A2
Height-adjustable, decouplable cassette for tube body, stainless steel. Height-adjustable and decouplable square cassette for flush-floor and jointless device installation in underfloor connection sockets UZD 250-3 (minimum installation depth 151 mm)/UGD55 250-3 (minimum installation depth 136 mm). Suitable for all cement screeds. Cassette frame with integrated lined body and height adjustment function. The height of the cassette frame is adjusted to the top edge of the floor covering using four slots. Suitable for dry, moist or wet-cleaned floors. The cassette is fixed in the mounting cover by fastening brackets during screed/Terrazzo work and is decoupled in all directions in the installed state. The cassette frame is made of stainless steel with a 25 mm-deep floor covering recess in t
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Approvals | VDE |
|---|---|
| Cable outlet version | Lowerable tube body |
| CO2 Footprint (GWP) Cradle-to-Gate | 42,6229 kg CO2e / 1 Piece |
| Decouplable | yes |
| Device support to accept mounting boxes | no |
| Dimension | 243x243x83 |
| Floor care | Wet |
| Floor covering thickness | 25 mm |
| Floor height, min. | 136 mm |
| Heavy-duty version | no |
| Height | 81 mm |
| Height-adjustment range, max. | 110 mm |
| Height-adjustment range, min. | 69 mm |
| Installation depth | 136 mm |
| Installation system type | UT4 |
| Length | 243 mm |
| Material | Stainless steel |
| Nominal size for device installation units | 9 |
|---|---|
| Number of cable outlets | 1 |
| Number of installable devices | 12 |
| Number of universal supports | 3 x UT4 |
| Protection rating (IP) when unused | IP55 |
| Protection rating (IP) when used | IP20 |
| Protection rating IK code | IK10 |
| Screed height, max. | 110 mm |
| Screed height, min. | 69 mm |
| Standard | EN 50085-2-2 |
| Suitable for cavity floor installation | no |
| Suitable for raised floor installation | no |
| Version for | Square |
| Vertical load, large area | to 5,000 N |
| Vertical load, small area | to 3,000 N |
| Width | 243 mm |
| Feature Name | Feature Value |
|---|---|
| Min. built-in depth (EF005027) | 136 mm |
| Levelling height (EF007999) | 69 mm |
| Floor maintenance (EF004546) | Wet |
| Model (EF000010) | Square |
| Material (EF002169) | Stainless steel |
| Number of conduit outlets (EF004424) | 1 |
| Type of conduit outlet (EF004474) | Tube cable outlet for floor duct |
| Chassis part for device cups (EF004750) | No |
| Number of appliances to build in (EF000219) | 12 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
