SKSU 640 FT 6064435 OBO BETTERMANN CABLE TRAY SKSU SKSU 640 FT
SKSU 640 FT
6064435
OBO BETTERMANN
3 m.

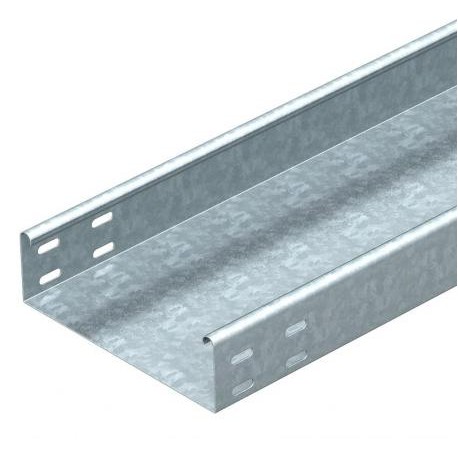

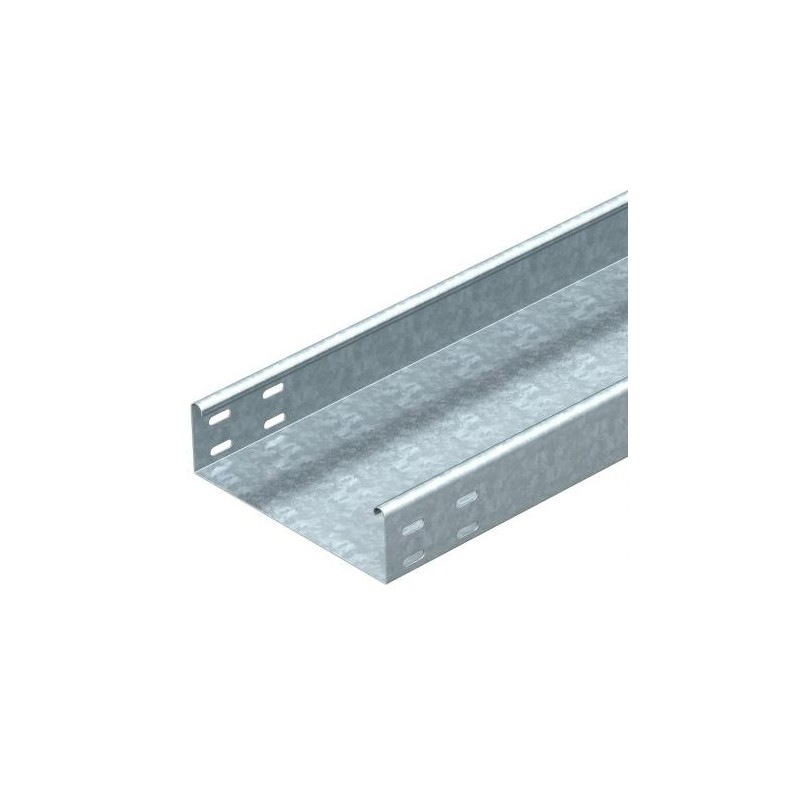

CABLE TRAY SKSU SKSU 640 FT
SKSU SKSU 640 FT cable tray, without perforation, with needle. 60x400x3000 Steel, St,Hot-dip galvanized, DIN EN ISO 1461
SKSU 640 FT 6064435 Cable tray SKSU 60 FS
Cable carrying systems > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲SKS 60 = heavy-duty cable tray system, unperforated, with 60 mm side height.
| Type | SKSU 640 FT |
| Width mm | 400 |
| Plate thickness mm | 1,5 |
| Pack. m | 3 |
| Weight kg/100 m | 687,000 |
| Item No. | 6064435 |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 60 mm |
| Width (EF000008) | 400 mm |
| Material thickness (EF000386) | 1.5 mm |
| Length (EF001438) | 3000 mm |
| Useful cross section (EF005140) | 23800 mm² |
| With cover (EF007965) | No |
| Side perforation (EF001122) | No |
| Bottom perforation (EF004545) | No |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Coupler not included |
| Type of connector (EF000141) | Screwed |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Hot dip galvanized |
| Weight (EF000167) | 6.87 kg/m |
| Load test type according to IEC 61537 (EF015362) | Type II |
| Possible support spacing (EF017261) | 1.5 m |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 2600 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 1900 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 1100 |
| Safe working load according to IEC 61537 with support spacing 3.0 m (EF017267) | 550 |
