SK RK9 7404372 OBO BETTERMANN SK RK9 7404372 Terrazzo lined body for height-adjustable cassettes, nominal si..
SK RK9
7404372
OBO BETTERMANN

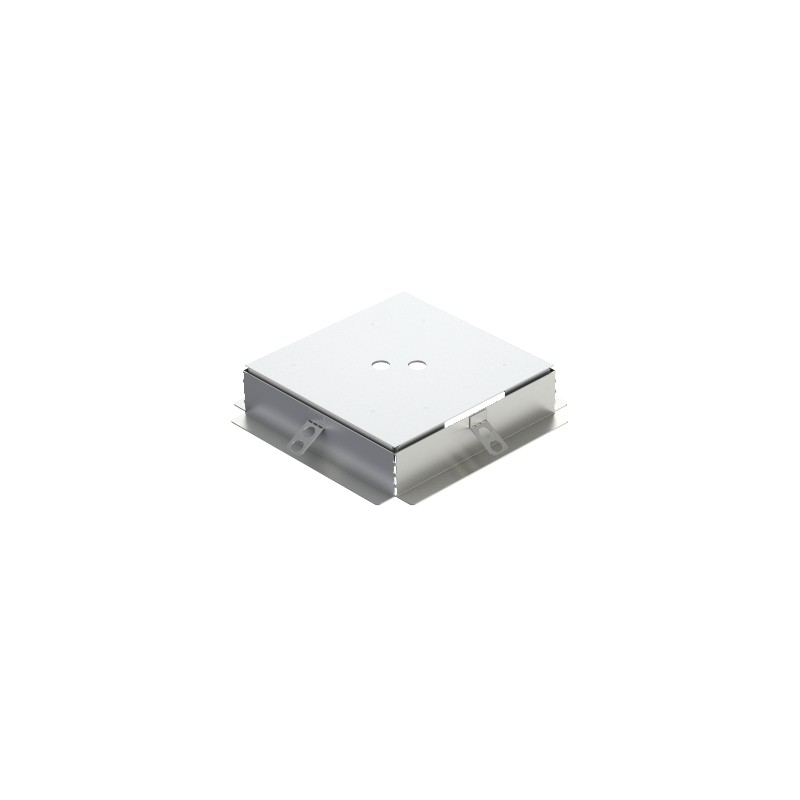

SK RK9 7404372 Terrazzo lined body for height-adjustable cassettes, nominal size 9
Terrazzo lined body for height-adjustable cassettes, nominal size 9. Lined body, suitable for polishing, for the direct and jointless installation of height-adjustable cassettes, nominal size 9, into surface-finished screeds/terrazzo floorings. The casing is laid floatingly onto underfloor boxes with mounting lids of nominal size 9, closing the gaps between underfloor box and cassette frame. The protection cover made from aluminium sheet is put into the cassette frame as a dummy before the screed work is done and can be polished over with the screed or terrazzo.
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 8,0117 kg CO2e / 1 Piece |
|---|---|
| Dimension A | 297 mm |
| Dimension a | 247 mm |
| Dimension h | 55 mm |
| Floor height, max. | 200 mm |
| Floor height, min. | 130 mm |
| Height | 55 mm |
|---|---|
| Length | 247 mm |
| Material | Steel |
| Nominal size for device installation units | 9 |
| Surface | Strip galvanized |
| Width | 247 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
