SGR 55 600 G 6005482 OBO BETTERMANN GR55x600x3000 grid tray, electro-galvanized steel, DIN EN 12329
SGR 55 600 G
6005482
OBO BETTERMANN
3
GR55x600x3000 grid tray, electro-galvanized steel, DIN EN 12329
GR SGR 55 600 G 55x600x3000 zinc Steel, St electro-galvanized grid, EN ISO 19598 / EN ISO 4042

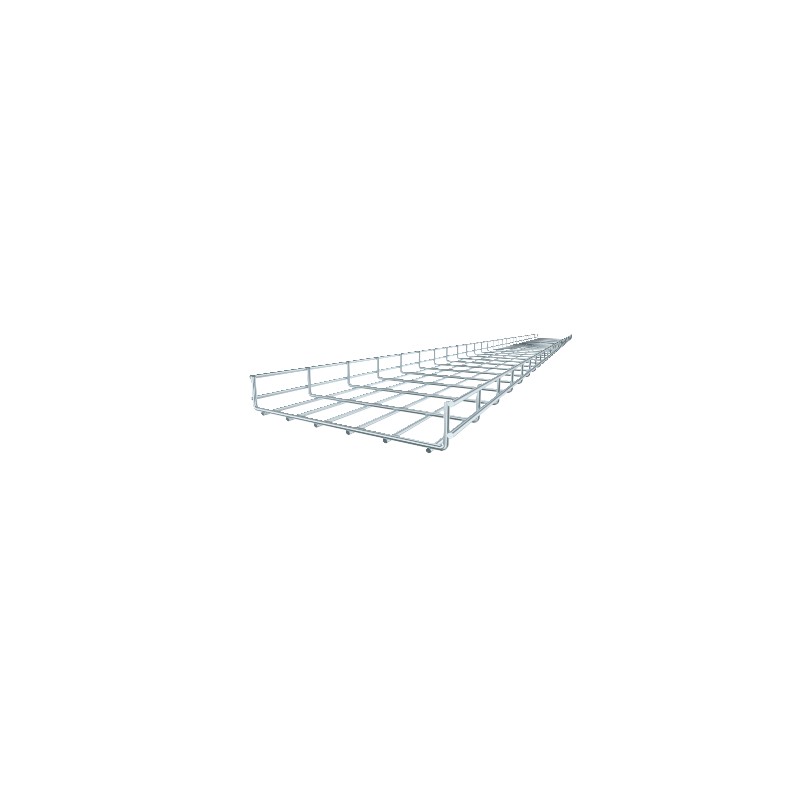

Heavy-duty cable tray SGR 55 G. Mesh cable tray made of spot-welded steel wire of side height 55 mm.Magnetic shield insulation without cover 15 dB, with cover 25 dB.
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 9,3239 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 55x600x3000 |
| Dimension B | 600 mm |
| Height | 2,17 in |
| Height | 55 mm |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Profile shape | U-shaped |
| Rustproof steel, pickled | no |
| Support spacing 1.0 m | 2,9 kN/m |
|---|---|
| Support spacing 1.5 m | 1,5 kN/m |
| Support spacing 2.0 m | 0,75 kN/m |
| Support spacing 3.0 m | 0,4 kN/m |
| Surface | Electrogalvanized |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 265 cm² |
| Usable cross-section | 26500 mm² |
| Wide-span version | no |
| Width | 600 mm |
| Width | 23,62 in |
| Wire diameter | 6 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
