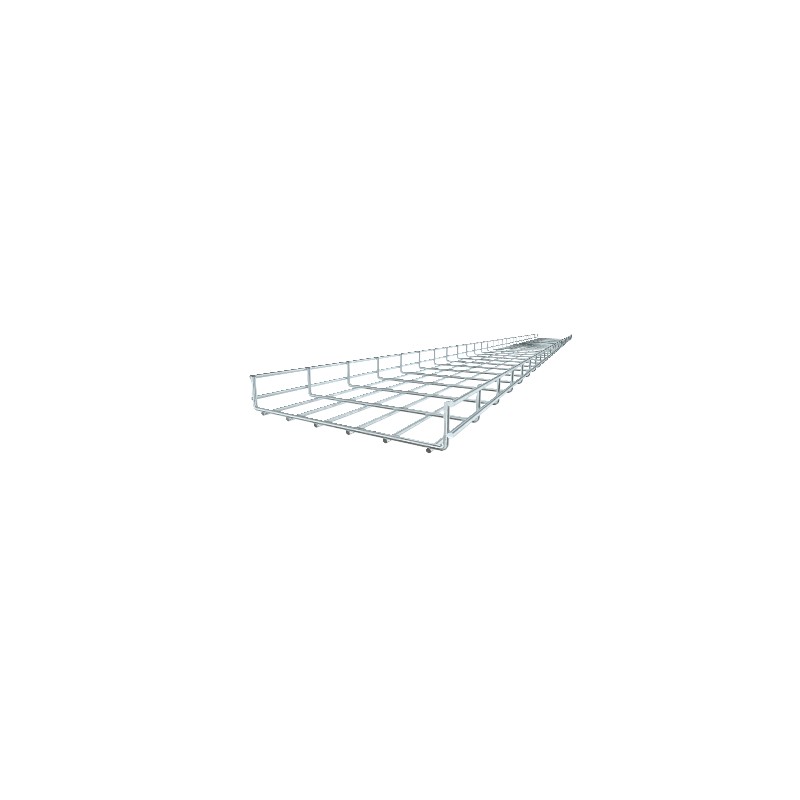

SGR 55 200 FT 6000209 OBO BETTERMANN GR grid tray, 6 mm diameter wire, 55x200x3000, hot-dip galvanized steel..
SGR 55 200 FT
6000209
OBO BETTERMANN
3
GR grid tray, 6 mm diameter wire, 55x200x3000, hot-dip galvanized steel, DIN EN ISO 1461
GR SGR 55 200 FT wire tray diameter 6 mm 55x200x3000 zinc Steel, St Hot dip galvanized, DIN EN ISO 1461
Heavy-duty cable tray SGR 55 FT. Mesh cable tray made of spot-welded steel wire of side height 55 mm.Magnetic shield insulation without cover 15 dB, with cover 25 dB.
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 4,9418 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 55x200x3000 |
| Dimension B | 200 mm |
| Height | 2,17 in |
| Height | 55 mm |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Material | Steel |
| Profile shape | U-shaped |
| Support spacing 1.0 m | 2 kN/m |
| Support spacing 1.5 m | 1,15 kN/m |
|---|---|
| Support spacing 2.0 m | 0,75 kN/m |
| Support spacing 2.5 m | 0,5 kN/m |
| Support spacing 3.0 m | 0,4 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 8700 mm² |
| Usable cross-section | 87 cm² |
| Width | 200 mm |
| Width | 7,87 in |
| Wire diameter | 6 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
