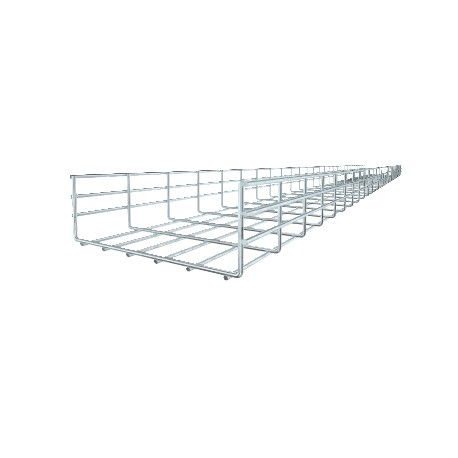

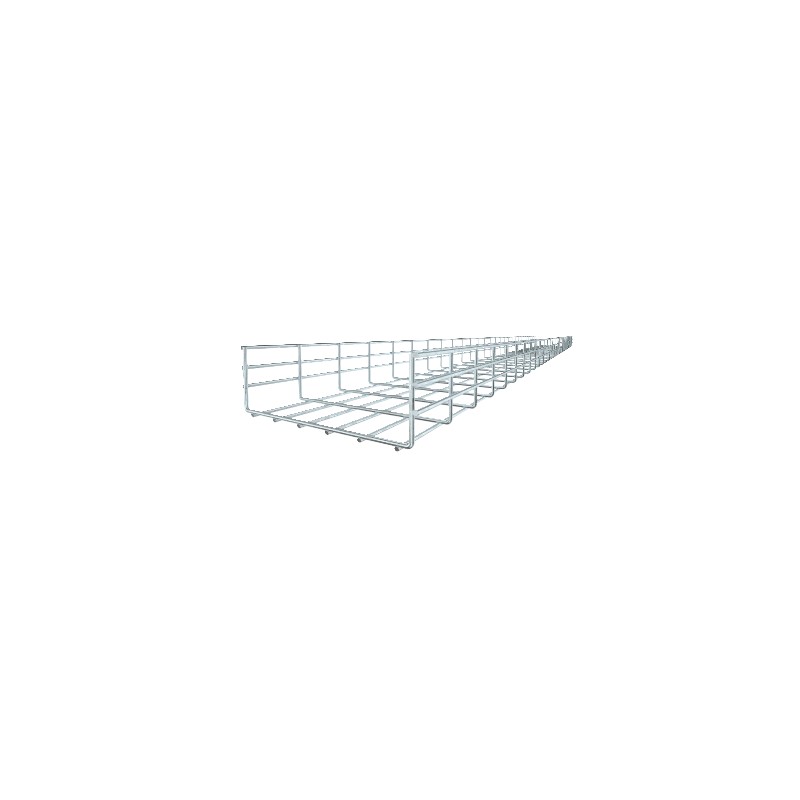

SGR 105 400 FT 6003402 OBO BETTERMANN GR grid tray, 6 mm diameter wire, 105x400x3000, hot-dip galvanized ste..
SGR 105 400 FT
6003402
OBO BETTERMANN
3
GR grid tray, 6 mm diameter wire, 105x400x3000, hot-dip galvanized steel, DIN EN ISO 1461
GR SGR 105 400 FT wire tray diameter 6 mm 105x400x3000 zinc Steel, St Hot dip galvanized, DIN EN ISO 1461
Heavy-duty cable tray SGR 105 FT. Mesh cable tray made of spot-welded steel wire of side height 105 mm.Magnetic shield insulation without cover 15 dB, with cover 25 dB.
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 9,041 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 105x400x3000 |
| Dimension B | 400 mm |
| Height | 105 mm |
| Height | 4,13 in |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Profile shape | U-shaped |
| Rustproof steel, pickled | no |
| Support spacing 1.0 m | 3,5 kN/m |
| Support spacing 1.5 m | 1,9 kN/m |
|---|---|
| Support spacing 2.0 m | 1,2 kN/m |
| Support spacing 2.5 m | 0,85 kN/m |
| Support spacing 3.0 m | 0,7 kN/m |
| Support spacing 3.5 m | 0,62 kN/m |
| Support spacing 4.0 m | 0,45 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 36300 mm² |
| Usable cross-section | 363 cm² |
| Wide-span version | no |
| Width | 400 mm |
| Width | 15,75 in |
| Wire diameter | 6 mm |
Datasheet - PDF
