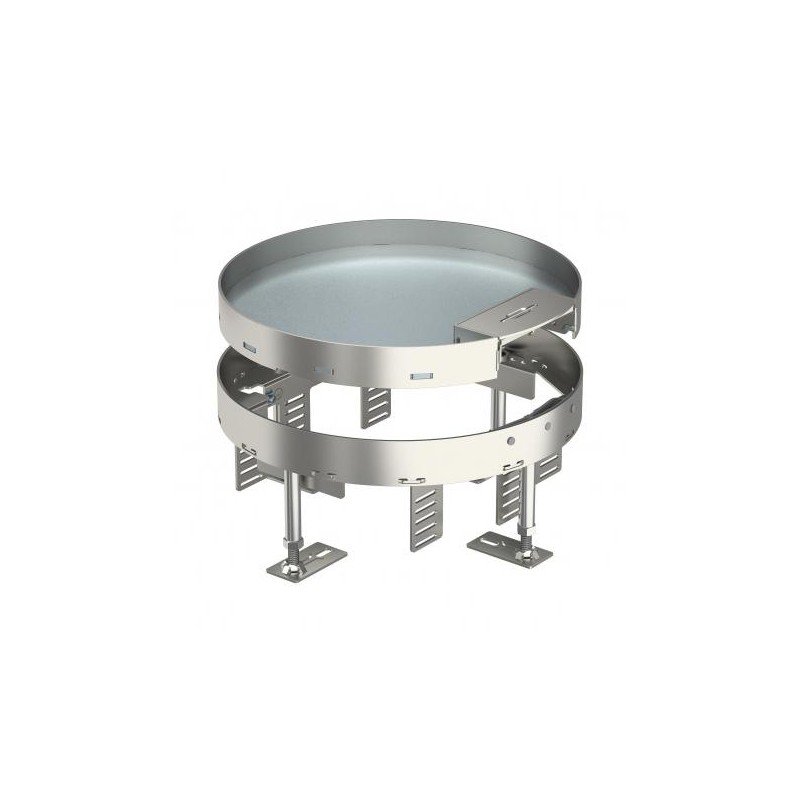

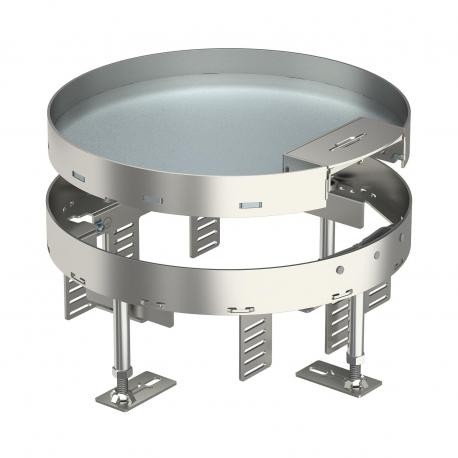

RKS2 R7 V25 7409270 OBO BETTERMANN SET COVER AND FRAME ROUND RKS2 R7 V25
RKS2 R7 V25
7409270
OBO BETTERMANN
SET COVER AND FRAME ROUND RKS2 R7 V25
RKS2 R7 V25 round cover and frame set, with cable outlet Ø275mm Stainless steel 1.4301, A2, 1.4301,
Height-adjustable cassette with cord outlet, RKSR, stainless steel. Height-adjustable cassette of nominal size R7 with cord outlet for installation of accessories in dry-care floors for indoor use.Height-adjustable cassette for cord outlet, 3-compartment. 2 APMT2 cover plates and 1 APMT5 cover plate can be installed. For the installation of 2 UT3 universal supports and one UT4 universal support for 7 individual installation devices with support ring/support clamp or 10 Modul 45 devices.
Sub-floor systems > Levelling cassette for duct mounting, raised and underfloor installation
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Approvals | VDE |
|---|---|
| Cable outlet version | Swivellable cord outlet |
| CO2 Footprint (GWP) Cradle-to-Gate | 16,2745 kg CO2e / 1 Piece |
| Decouplable | no |
| Device support to accept mounting boxes | yes |
| Dimension | Ø275mm |
| Floor care | Dry |
| Floor covering thickness | 25 mm |
| Floor height, max. | 155 mm |
| Floor height, min. | 110 mm |
| Heavy-duty version | no |
| Height-adjustment range, max. | 155 mm |
| Height-adjustment range, min. | 110 mm |
| Installation depth | 110 mm |
| Installation diameter | 275 |
| Installation system type | UT3 / UT4 |
| Length | 274 mm |
|---|---|
| Material | Stainless steel 1.4301 |
| Nominal size for device installation units | R7 |
| Number of cable outlets | 1 |
| Number of installable devices | 10 |
| Number of mounting boxes | 3 |
| Protection rating (IP) when unused | IP40 |
| Protection rating (IP) when used | IP20 |
| Protection rating IK code | IK10 |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Version for | Round |
| Vertical load, large area | to 5,000 N |
| Vertical load, small area | to 3,000 N |
| Width | 274 mm |
| Feature Name | Feature Value |
|---|---|
| Min. built-in depth (EF005027) | 110 mm |
| Levelling height (EF007999) | 110 mm |
| Floor maintenance (EF004546) | Dry |
| Model (EF000010) | Round |
| Material (EF002169) | Stainless steel |
| Number of conduit outlets (EF004424) | 1 |
| Type of conduit outlet (EF004474) | Swivelling |
| Chassis part for device cups (EF004750) | Yes |
| Built-in diameter (EF000943) | 275 mm |
| Number of appliances to build in (EF000219) | 10 |
| Number of device cups (EF000436) | 3 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
