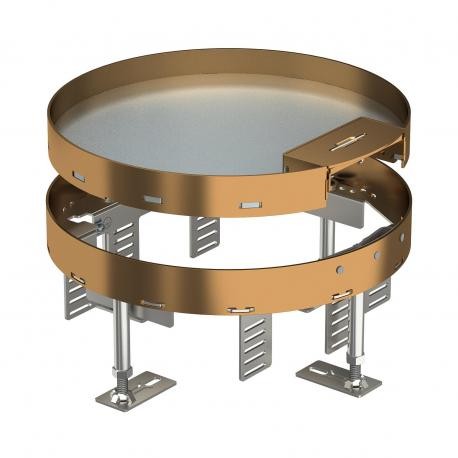

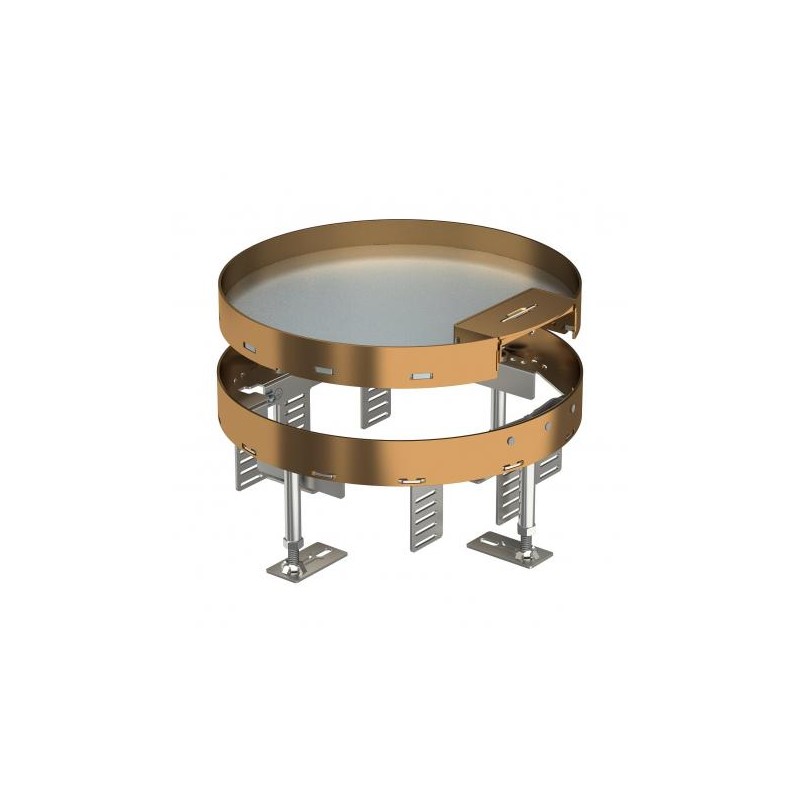

RKS2 R7 M25 7409264 OBO BETTERMANN SET COVER AND FRAME ROUND RKS2 R7 M25
RKS2 R7 M25
7409264
OBO BETTERMANN
SET COVER AND FRAME ROUND RKS2 R7 M25
Height-adjustable cassette with cord outlet, RKSR, brass. Height-adjustable cassette of nominal size R7 with cord outlet for installation of accessories in dry-care floors for indoor use.Height-adjustable cassette for cord outlet, 3-compartment. 2 APMT2 cover plates and 1 APMT5 cover plate can be installed. For the installation of 2 UT3 universal supports and one UT4 universal support for 7 individual installation devices with support ring/support clamp or 10 Modul 45 devices.
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Approvals | VDE |
|---|---|
| Cable outlet version | Swivellable cord outlet |
| CO2 Footprint (GWP) Cradle-to-Gate | 13,0756 kg CO2e / 1 Piece |
| Decouplable | no |
| Device support to accept mounting boxes | yes |
| Dimension | Ø275mm |
| Floor care | Dry |
| Floor covering thickness | 25 mm |
| Floor height, max. | 155 mm |
| Floor height, min. | 110 mm |
| Heavy-duty version | no |
| Height-adjustment range, max. | 155 mm |
| Height-adjustment range, min. | 110 mm |
| Installation depth | 110 mm |
| Installation diameter | 275 |
| Installation system type | UT3 / UT4 |
| Length | 274 mm |
|---|---|
| Material | Brass |
| Nominal size for device installation units | R7 |
| Number of cable outlets | 1 |
| Number of installable devices | 10 |
| Number of mounting boxes | 3 |
| Protection rating (IP) when unused | IP40 |
| Protection rating (IP) when used | IP20 |
| Protection rating IK code | IK10 |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Version for | Round |
| Vertical load, large area | to 5,000 N |
| Vertical load, small area | to 3,000 N |
| Width | 274 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
