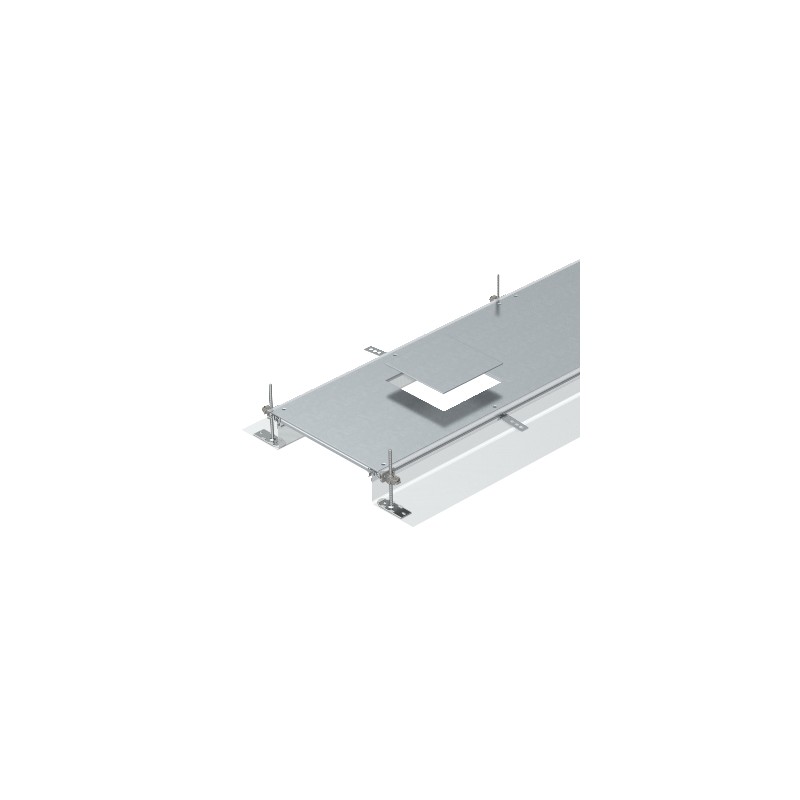

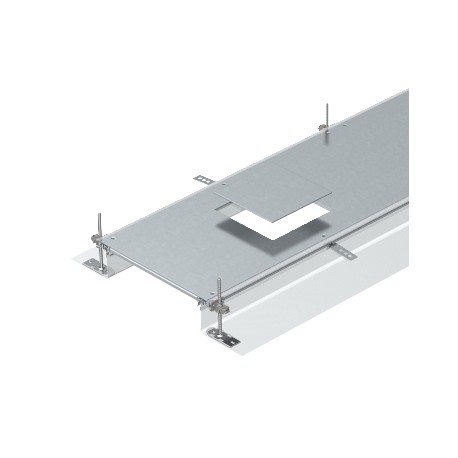

OKA-G40040140D4 7424122 OBO BETTERMANN Trunking unit for GES4, height 40−140 mm
OKA-G40040140D4
7424122
OBO BETTERMANN
Trunking unit for GES4, height 40−140 mm
Trunking unit for GES4, height 40−140 mm. Ready-to-mount screed-flush trunking unit for cable routing, consisting of three system covers, two side profiles with attached flexible side wall made of metallic mesh, floor covering contact profiles with H = 3 mm. For dry interior rooms with dry-care floors. Also suitable for wet-care floors with appropriate system accessories. The scope of delivery contains six height-adjustable fastening brackets, six screed ties and three lid butt seals for nominal trunking widths 200, 300 and 400 or six lid butt supports for trunking widths 500 and 600. The essential levelling units (please observe adjustment height) for the lid butt supports 400, 500 and 600 are not contained in the scope of supply, please order separately. On delivery, the trunking lids
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 61,8299 kg CO2e / 1 Meter |
|---|---|
| Cover fastening, locking | no |
| Cover material thickness | 4 |
| Covers | 3 |
| Decouplable | yes |
| Dimension | 2400x400x140 |
| Duct height, min. | 40 mm |
| Floor plate | no |
| Height-adjustment range, max. | 140 mm |
| Height-adjustment range, min. | 40 mm |
| Installation opening for on-floor tank | no |
| Length | 2400 mm |
| Material | Steel |
| Minimum screed height | 40 |
| Mounting opening | Square |
| Mounting opening | For service outlet |
|---|---|
| Mounting opening cover | yes |
| Nominal size for device installation units | 4 |
| Number of planned flush-mount units | 3 |
| Removable cover | yes |
| Seal installation option | yes |
| Suitable for expansion joint | no |
| Surface | Strip galvanized |
| Trunking height, max. | 140 mm |
| Width | 400 mm |
| With connection opening | yes |
| With equipotential bonding | no |
| With overhang | yes |
| With separating retainer | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
