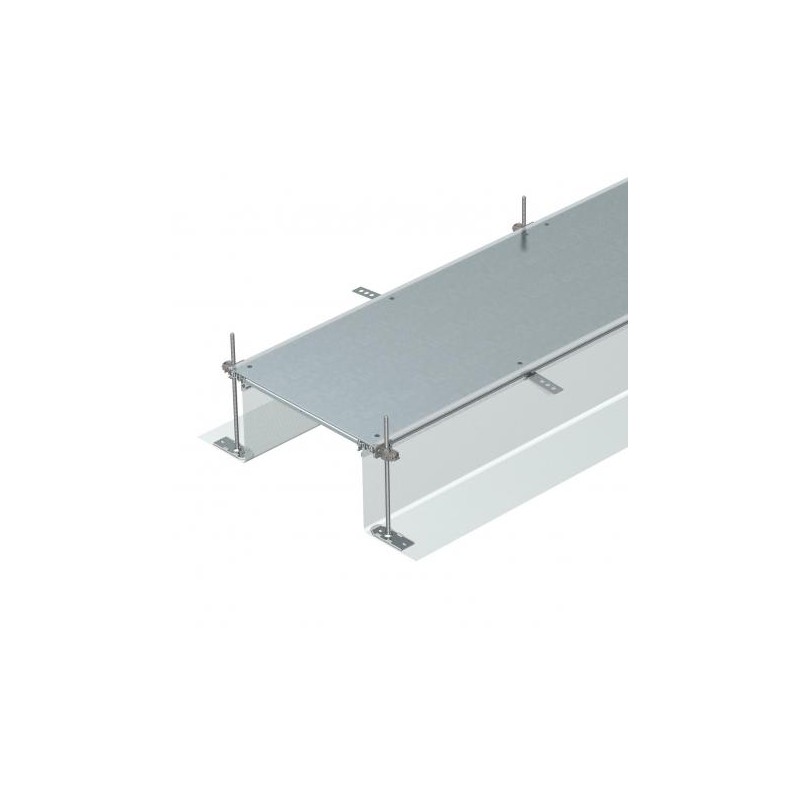

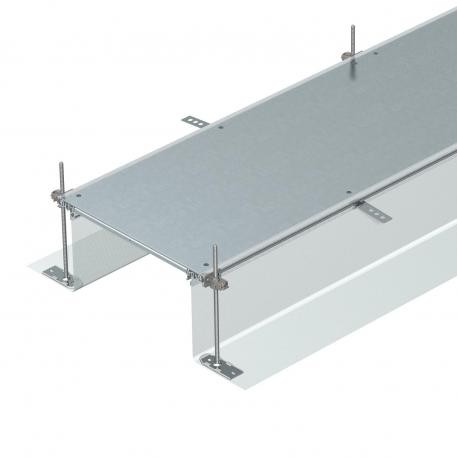

OKA-G20040240 7424020 OBO BETTERMANN Trunking unit, blank, height 40−240 mm
OKA-G20040240
7424020
OBO BETTERMANN
2
Trunking unit, blank, height 40−240 mm
OKA-G20040240 flush pavement channel, blind 2400x200x240 Steel, St, strip galvanized, DIN EN 10346
Channel unit, blind, height 40-240 mm
Sub-floor systems > Underfloor installation duct flush floor open
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲With three blanking lids (L = 800 mm).
| Type | OKA-G20040240 |
| Width mm | 200 |
| Length mm | 2400 |
| Trunking height mm | 40-240 |
| Covers pc. | 3 |
| Pack. m | 2,4 |
| Weight kg/100 m | 867,080 |
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 200 mm |
| Length (EF001438) | 2400 mm |
| Levelling range (EF005136) | 40 mm |
| Mounting opening (EF005090) | None |
| Cover mounting opening (EF004340) | No |
| With partition panel (EF007973) | No |
| Bottom duct (EF004547) | No |
| Material side wall/bottom duct (EF005415) | Steel |
| Surface side wall/bottom duct (EF008008) | Galvanised |
| Decoupling possibility base from main body (EF007746) | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
