N 6-5/49 A4 3498399 OBO BETTERMANN ANCHOR NAIL SCREW N 6-5/49 A4
N 6-5/49 A4
3498399
OBO BETTERMANN
50
ANCHOR NAIL SCREW N 6-5/49 A4

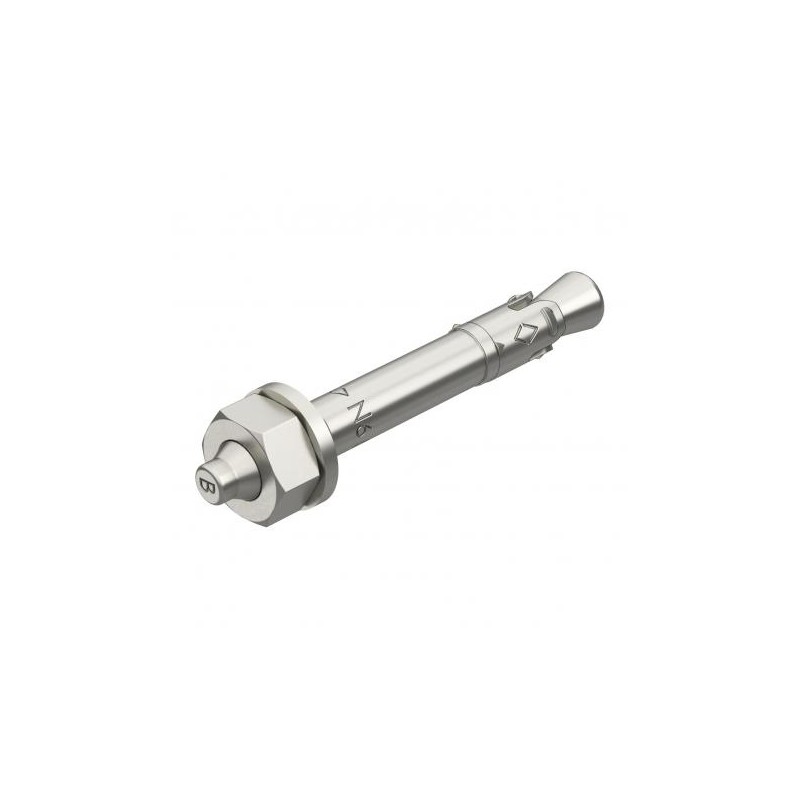

Nail anchor N with thread, V4A. The nail anchor N can be used for multiple fastenings of non-load-bearing systems, indoors and outdoors, in cracked and non-cracked concrete, thereby combining the benefits of a bolt tie with even easier mounting. The nail anchor only needs to be hammered into the drill hole. It is not necessary to apply torque subsequently. When the load occurs, the nail anchor spreads itself and bolts itself in the drill hole.
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Approvals available | yes |
|---|---|
| Clamping strength | 5 mm |
| Colour | stainless steel |
| Dimension | 6x49mm |
| Dimension L | 49 mm |
| Drill hole depth | 40 mm |
| Drill hole diameter, min. | 6 mm |
| Fastening unit | Miscellaneous |
| Length | 49 mm |
| Material | Stainless steel |
|---|---|
| Mounting type, anchor, tie | Push-through mounting |
| Self-drilling | no |
| Suitable for material | Concrete |
| Surface | Bright, treated |
| Thread | M6 |
| Thread metric | 6 |
| Version for | Lightning strike |
| WAF | 10 |
