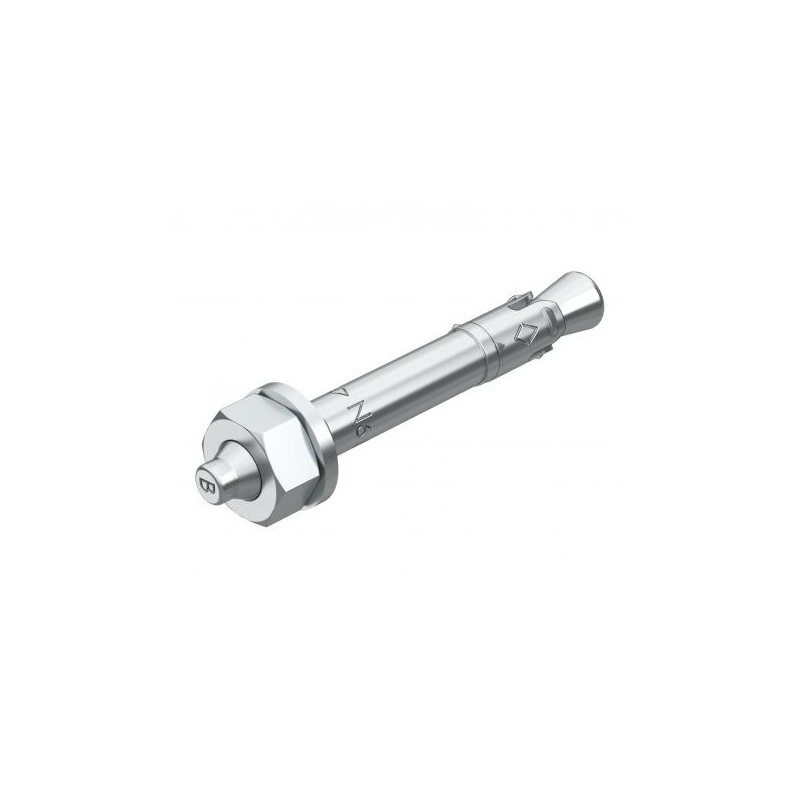

N 6-5-10/49 3498396 OBO BETTERMANN ANCHOR NAIL SCREW N 6-5-10/49
N 6-5-10/49
3498396
OBO BETTERMANN
100
ANCHOR NAIL SCREW N 6-5-10/49
Nail anchor with thread N N 6-5-10/49, with thread M6 6x49mm Steel, St, electrozinc-plated, EN ISO 19598 / EN ISO 4042
N 6-5-10/49 3498396 Nail anchor N with thread
Fasteners > Hammer set anchor
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Best sellers
▲More info
▲European technical approval ETA-11/0240, including characteristic values under fire exposure to fire resistance R 120.
| Type | N 6-5-10/49 |
| Thread | M6 |
| Bore hole Ø mm | 6 |
| Bore hole depth mm | 40 |
| Clamping range mm | 5-10 |
| Dimen- sion L mm | 49 |
| Pack. pcs | 100 |
| Weight kg/100 pcs. | 1,160 |
| Feature Name | Feature Value |
|---|---|
| Fastening provision (EF005644) | Other |
| Push-through installation (EF015003) | Yes |
| Pre-positioned installation (EF015004) | No |
| Spaced installation (EF015005) | No |
| Suitable for concrete (EF006354) | Yes |
| Suitable for natural stone (EF006362) | No |
| Material sleeve (EF001260) | Steel |
| Surface protection (EF000139) | Galvanic/electrolytic zinc plated |
| Thread size (metric) (EF003563) | 6 |
| Drill hole diameter (EF004562) | 6 mm |
| Length (EF001438) | 49 mm |
| Min. drill hole depth (EF000384) | 40 mm |
| With approval (EF005449) | Yes |
| Self boring (EF005269) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
