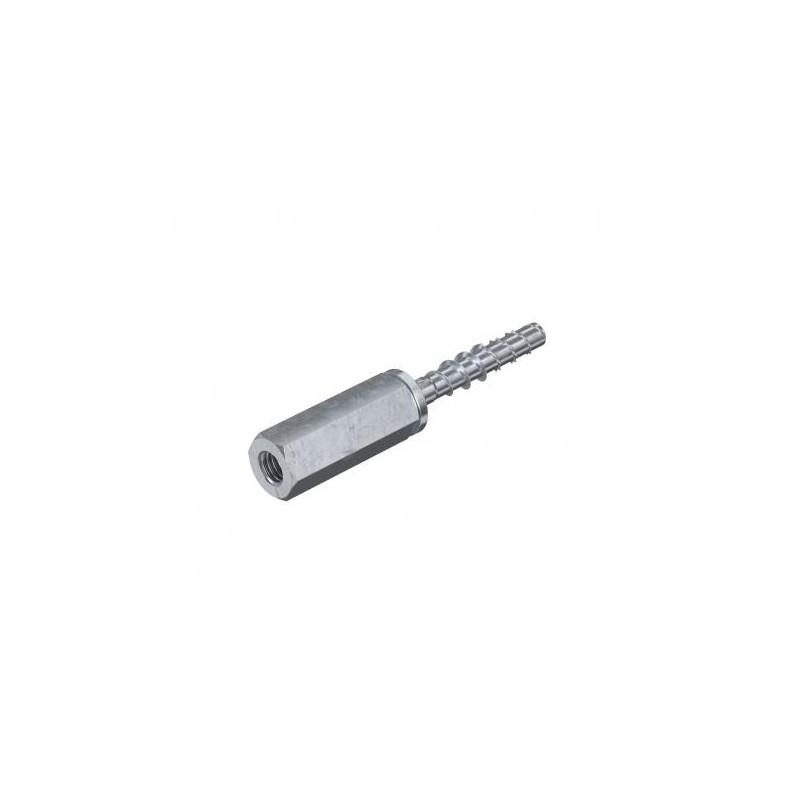

MMS+ I 7.5x40 3498266 OBO BETTERMANN Fire protection screw, for combine. threaded sleeve, 7.5x40, electro-ga..
MMS+ I 7.5x40
3498266
OBO BETTERMANN
40
Fire protection screw, for combine. threaded sleeve, 7.5x40, electro-galvanized steel, DIN EN 12329
MMS+ I 7.5x40 p/combine fire protection screw. threaded sleeve 7.5x40 zinc Steel, St electrozinc-plated, EN ISO 19598 / EN ISO 4042
MMS-plus I 7.5x40 internal thread tie, with combination thread sleeve. Bolt tie for direct mounting without additional anchors in cracked and uncracked concrete and masonry. With M8/M10 combination thread sleeve for fastening threaded rods.Construction product tested according to EAD and CE mark, with European Technical Assessment (ETA) and proof of suitability. Load-bearing capacities under fire loads proven up to fire resistance class R120.
BSS fire protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Anchor length | 33,5 mm |
|---|---|
| Colour | zinc |
| Diameter | 7,5 mm |
| Dimension | 7,5x40 |
| Dimension | 7,5x40 |
| Dimension L | 40 mm |
| Drill hole depth | 45 mm |
| Drill hole diameter, min. | 6 mm |
| Hardened | yes |
| Head shape | Hexagonal |
| Length | 40 mm |
| Material | Steel |
|---|---|
| Screw system | Hexagonal |
| Surface | Electrogalvanized |
| Thread | M8/M10 |
| Thread diameter ST | 7,5 |
| Tie fastening device | Miscellaneous |
| Tie screw system | Hexagon head |
| Torque | 120 Nm |
| Version, tie | Internal thread |
| WAF | 13 |
| With flange | yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FIRE TESTED SUPPORT AND ROUTING SYSTEMS OBO EN.pdf | 18 Mbytes |
|
| PDF CATALOGUE INSULATION AND CABLE BANDAGES OBO EN.pdf | 12 Mbytes |
|
