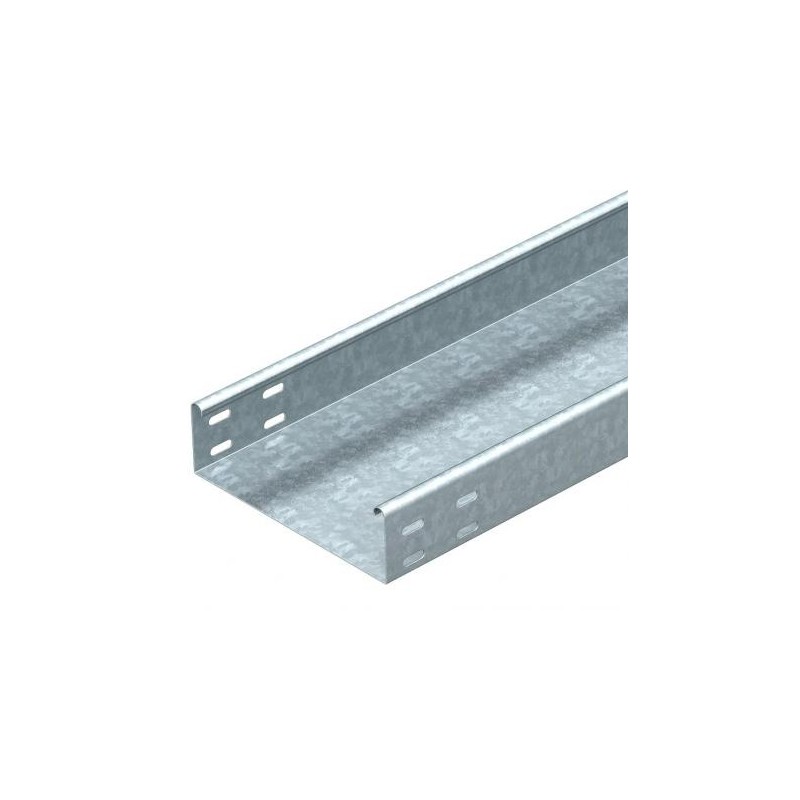

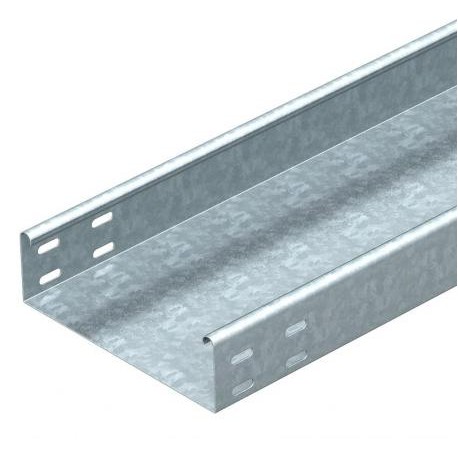

MKSU 615 FS 6063179 OBO BETTERMANN CABLE TRAY MKSU MKSU 615 FS
MKSU 615 FS
6063179
OBO BETTERMANN
3 m.
CABLE TRAY MKSU MKSU 615 FS
Mksu tray, without perfora.,with aguj. bonding, 60x150x3000, galvanized steel in band, DIN EN 10346
Cable tray MKSU 60 FS. MKSU 60 = medium-duty cable tray system, unperforated, with a side height of 60 mm. Straight connectors should be ordered in the appropriate quantity.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Cable carrying systems > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 5,2008 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 60 x 150 |
| Dimension | 60x150x3000 |
| Dimension B | 150 mm |
| Height | 2 in |
| Height | 60 mm |
| Length | 10 ft |
| Length | 3000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Plate thickness | 0,04 in |
| Plate thickness | 1 mm |
|---|---|
| Rustproof steel, pickled | no |
| Side perforation | no |
| Support spacing 1.5 m | 1,5 kN/m |
| Support spacing 1.75 m | 1,25 kN/m |
| Support spacing 2.0 m | 1 kN/m |
| Support spacing 2.5 m | 0,5 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 8800 mm² |
| Usable cross-section | 88 cm² |
| Wide-span version | no |
| Width | 6 in |
| Width | 150 mm |
| With cover | no |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 60 mm |
| Width (EF000008) | 150 mm |
| Material thickness (EF000386) | 1 mm |
| Length (EF001438) | 3000 mm |
| Useful cross section (EF005140) | 8800 mm² |
| With cover (EF007965) | No |
| Side perforation (EF001122) | No |
| Bottom perforation (EF004545) | No |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Coupler not included |
| Type of connector (EF000141) | Screwed |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Pre-galvanised |
| Weight (EF000167) | 2.29 kg/m |
| Load test type according to IEC 61537 (EF015362) | Type II |
| Possible support spacing (EF017261) | 1.5 m |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 1500 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 1000 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 500 |
