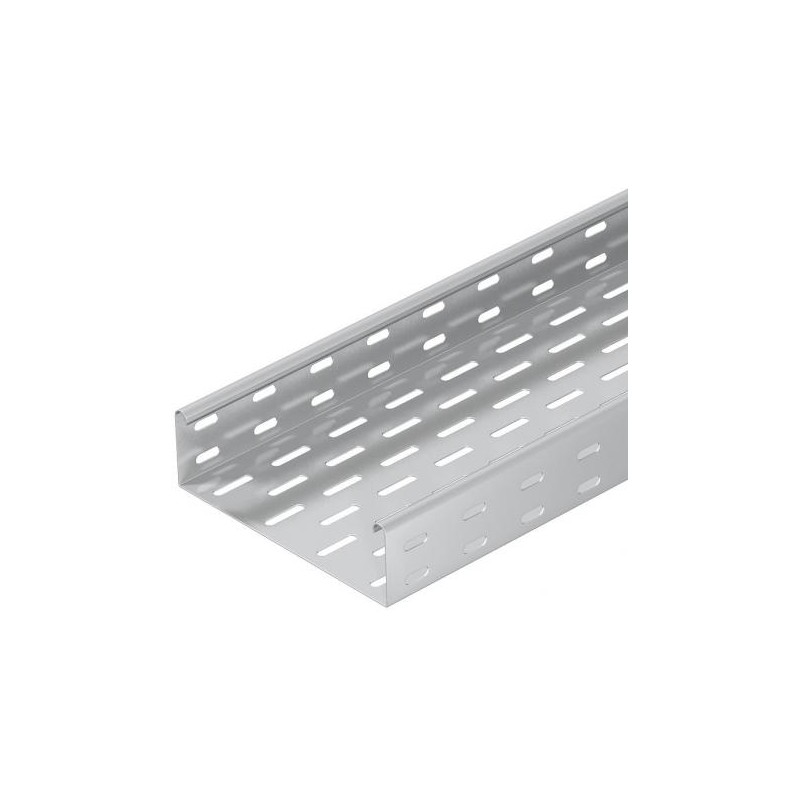

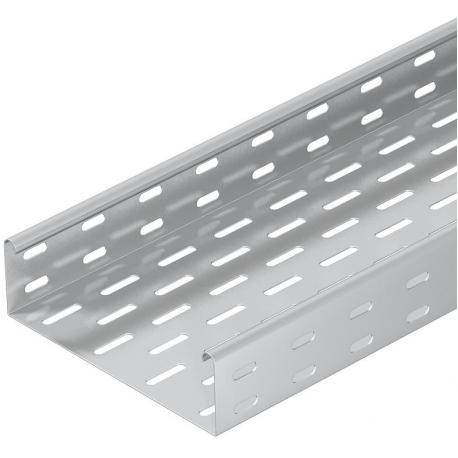

MKS 630 VA4301 6056040 OBO BETTERMANN CABLE TRAY MKS MKS 630 VA4301
MKS 630 A2
6056040
OBO BETTERMANN
3 m.
CABLE TRAY MKS MKS 630 VA4301
Cable tray MKS 60 A2. MKS 60 = Medium-duty cable tray system with a side height of 60 mm.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 16,7438 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Connector version | Without connectors |
| Dimension | 60x300x3000 |
| Dimension B | 300 mm |
| Dimension W | 300 mm |
| Height | 2 in |
| Height | 60 mm |
| Length | 3000 mm |
| Length | 10 ft |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Plate thickness | 0,04 in |
| Plate thickness | 1 mm |
|---|---|
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Support spacing 1.5 m | 1,5 kN/m |
| Support spacing 1.75 m | 1,25 kN/m |
| Support spacing 2.0 m | 1 kN/m |
| Support spacing 2.5 m | 0,5 kN/m |
| Surface | Bright, treated |
| Type of connector, cable support system | Screwed |
| Usable cross-section | 17800 mm² |
| Usable cross-section | 178 cm² |
| Wide-span version | no |
| Width | 300 mm |
| Width | 12 in |
| With cover | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
