MKR 15 250 FT 6045251 OBO BETTERMANN BAND. CORD CONSTR. NAVAL MKR 15 250 FT
MKR 15 250 FT
6045251
OBO BETTERMANN
2 m.
BAND. CORD CONSTR. NAVAL MKR 15 250 FT

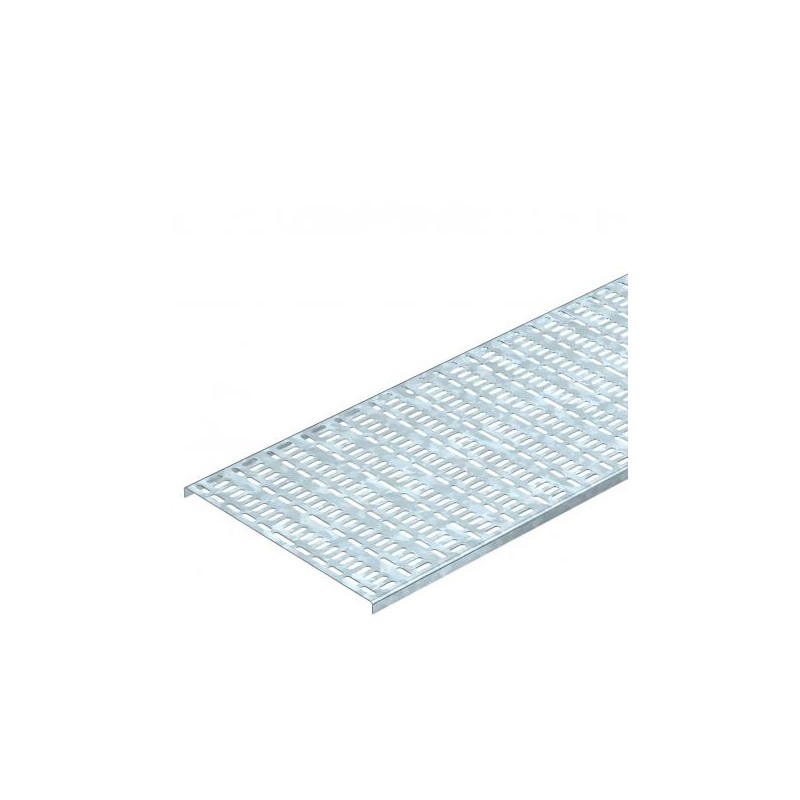

Band. Constr. cable holder Naval MKR 15 250 FT, Thickness 1.50mm 15x250x2000 Steel, St, Hot dipped galvanized, DIN EN ISO 1461
MKR 15 250 FT 6045251 Cable tray, marine standard FS
Cable carrying systems > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲Cable tray according to marine standard.
| Type | MKR 15 250 FT |
| Width mm | 250 |
| Plate thickness mm | 1,5 |
| Pack. m | 2 |
| Weight kg/100 m | 253,000 |
| Item No. | 6045251 |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 15 mm |
| Width (EF000008) | 250 mm |
| Material thickness (EF000386) | 1.5 mm |
| Length (EF001438) | 2000 mm |
| With cover (EF007965) | No |
| Side perforation (EF001122) | No |
| Bottom perforation (EF004545) | Yes |
| NATO-mounting holes (EF006059) | Yes |
| Model (EF000010) | Coupler not included |
| Type of connector (EF000141) | Screwed |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Hot dip galvanized |
| Weight (EF000167) | 2.51 kg/m |
| Load test type according to IEC 61537 (EF015362) | Type II |
| Safe working load according to IEC 61537 with support spacing 1.0 m (EF017263) | 700 |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 200 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
