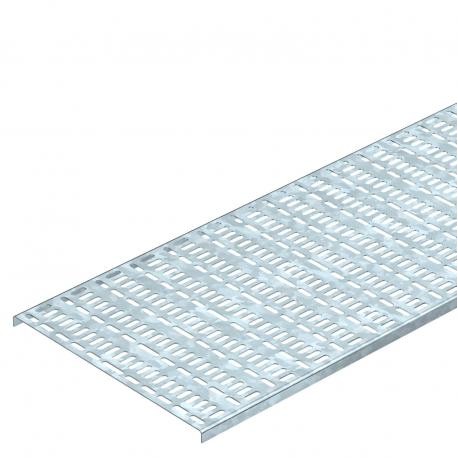

MKR 15 200 FT 6045200 OBO BETTERMANN BAND. CORD CONSTR. NAVAL MKR 15 200 FT
MKR 15 200 FT
6045200
OBO BETTERMANN
2 m.
BAND. CORD CONSTR. NAVAL MKR 15 200 FT

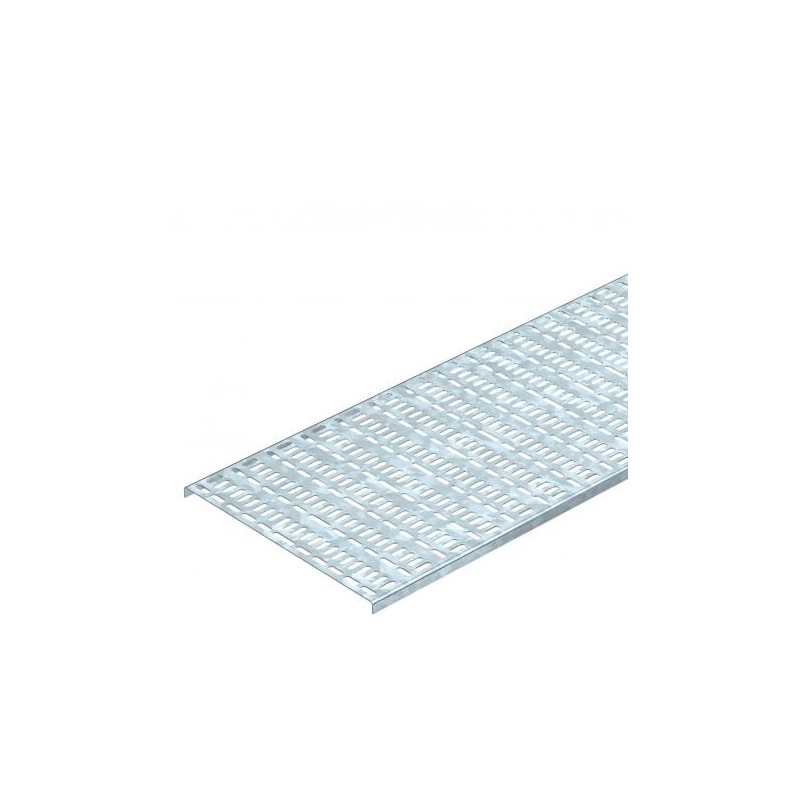

Cable tray, marine standard FT. Cable tray for use in ship construction, produced according to the marine standard VG 88900-1.
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 5,5517 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 15 x 200 |
| Dimension | 15x200x2000 |
| Dimension B | 200 mm |
| Height | 15 mm |
| Length | 2000 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | yes |
|---|---|
| Plate thickness | 1,5 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Support spacing 1.0 m | 0,7 kN/m |
| Support spacing 1.5 m | 0,2 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 200 mm |
| With cover | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
