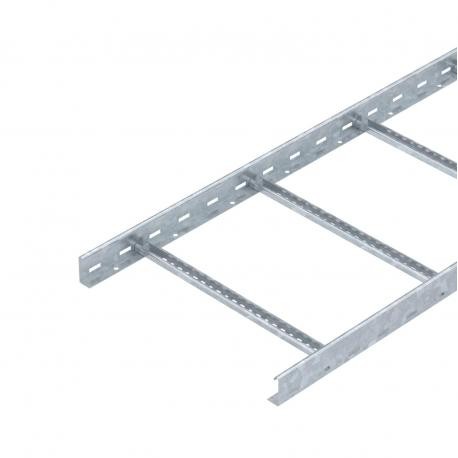

LG 650 VS 6 FT 6208659 OBO BETTERMANN TRAY LADDER LG 650 VS 6 FT
LG 650 VS 6 FT
6208659
OBO BETTERMANN
6 m.

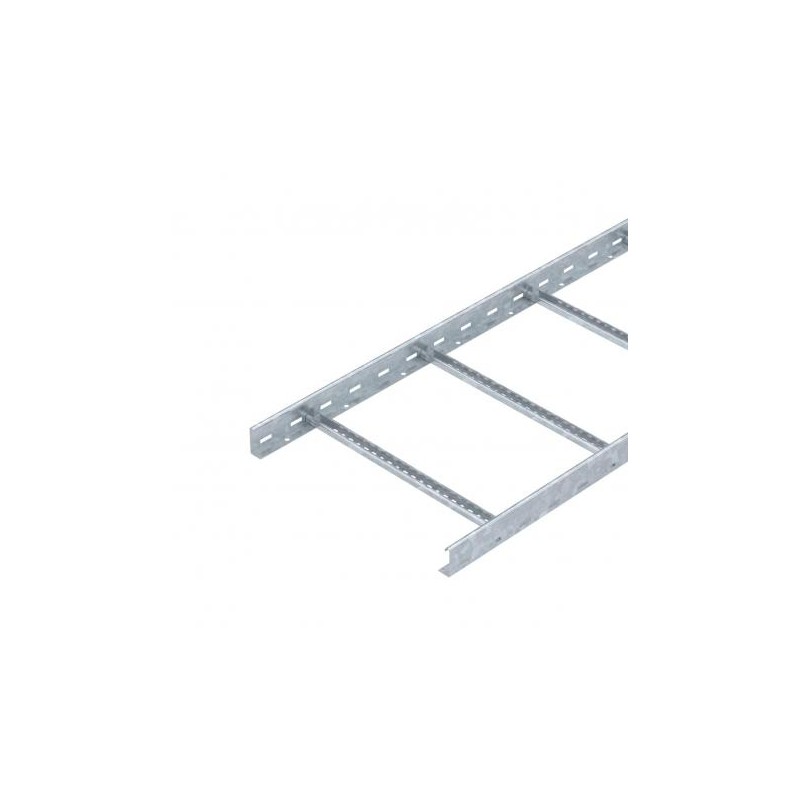

TRAY LADDER LG 650 VS 6 FT
Ladder tray, perforated, with step VS, 60x500x6000, hot-dip galvanized steel, DIN EN ISO 1461
Cable ladder LG 60, 6 m VS FT. Cable ladder with perforated side rail of side height 60 mm with riveted C profile frames, open in an upwards direction (VS version).Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Cable carrying systems > Cable ladder/wide span cable ladder
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 7,8759 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 60x500x6000 |
| Dimension | 60x500x6000 |
| Dimension B | 500 mm |
| Fastening of rung | Blind riveted |
| Height | 60 mm |
| Length | 6000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rail thickness | 1,5 mm |
| Rung distance | 300 mm |
| Rung slot dimension | 16,50 |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Side rail version | Flat profile |
|---|---|
| Support spacing 1.5 m | 3,1 kN/m |
| Support spacing 2.0 m | 2,25 kN/m |
| Support spacing 2.5 m | 1,5 kN/m |
| Support spacing 3.0 m | 1,1 kN/m |
| Support spacing 3.5 m | 0,75 kN/m |
| Support spacing 4.0 m | 0,45 kN/m |
| Support spacing 4.5 m | 0,3 kN/m |
| Support spacing 5.0 m | 0,15 kN/m |
| Surface | Hot-dip galvanised |
| Usable cross-section | 248 cm² |
| Usable cross-section | 24800 mm² |
| Version of the rungs | Profile perforated |
| Wide-span version | no |
| Width | 500 mm |
| Feature Name | Feature Value |
|---|---|
| Type of side joist (EF007666) | Flat profile |
| Side perforation (EF001122) | Yes |
| Type of rung (EF001060) | Slotted channel |
| Fixation rung (EF008307) | Blind riveted |
| Height (EF000040) | 60 mm |
| Width (EF000008) | 500 mm |
| Length (EF001438) | 6000 mm |
| Useful cross section (EF005140) | 24800 mm² |
| Suitable for circuit integrity (EF007806) | No |
| Rung centre spacing (EF008185) | 300 mm |
| Vertical cable ladder (EF017249) | Yes |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Hot dip galvanized |
| Weight (EF000167) | 3.55 kg/m |
| Possible support spacing (EF017261) | 1.5 m |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 3100 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 2250 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 1500 |
| Safe working load according to IEC 61537 with support spacing 3.0 m (EF017267) | 1100 |
| Safe working load according to IEC 61537 with support spacing 4.0 m (EF017268) | 450 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
