LG 620 VS 6 FS 6208627 OBO BETTERMANN TRAY LADDER LG 620 VS 6 FS
LG 620 VS 6 FS
6208627
OBO BETTERMANN
6 m.

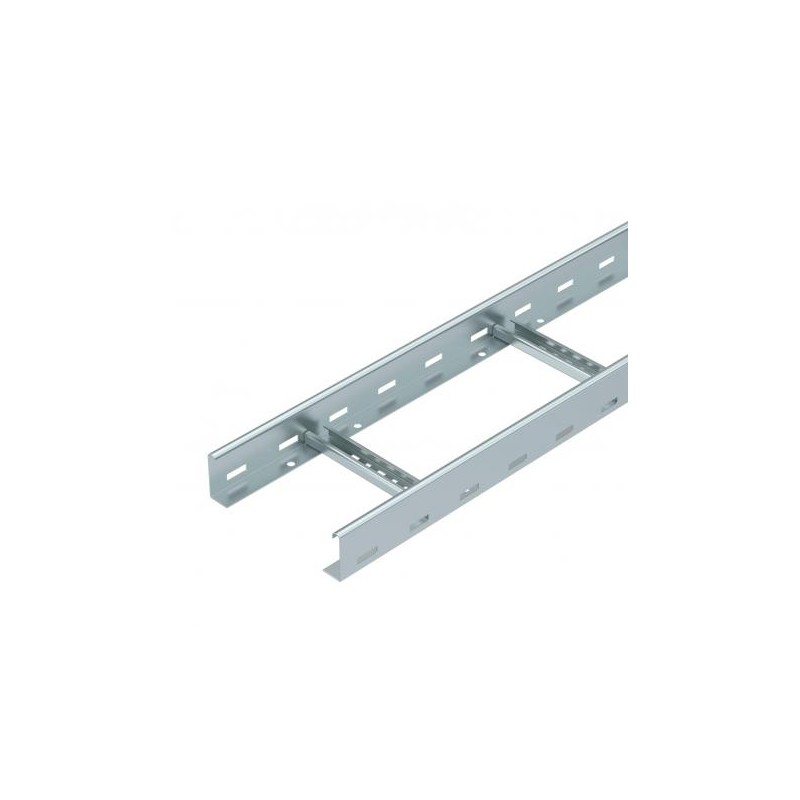

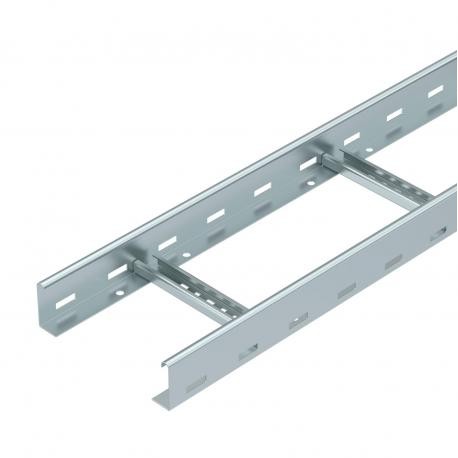

TRAY LADDER LG 620 VS 6 FS
LG 620 VS 6 FS ladder tray, perforated, with step VS 60x200x6000 Steel, St, galvanized in band, DIN EN 10346
LG 620 VS 6 FS 6208627 Cable ladder LG 60, 3 m VS FS
Cable carrying systems > Cable ladder/wide span cable ladder
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲The cable ladder is shipped folded up.
| Type | LG 620 VS 6 FS |
| Width mm | 200 |
| Rail thickness mm | 1,5 |
| Pack. m | 6 |
| Weight kg/100 m | 269,750 |
| Item No. | 6208627 |
| Feature Name | Feature Value |
|---|---|
| Type of side joist (EF007666) | Flat profile |
| Side perforation (EF001122) | Yes |
| Type of rung (EF001060) | Slotted channel |
| Fixation rung (EF008307) | Blind riveted |
| Height (EF000040) | 60 mm |
| Width (EF000008) | 200 mm |
| Length (EF001438) | 6000 mm |
| Useful cross section (EF005140) | 9800 mm² |
| Suitable for circuit integrity (EF007806) | Yes |
| Rung centre spacing (EF008185) | 300 mm |
| Vertical cable ladder (EF017249) | Yes |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Pre-galvanised |
| Weight (EF000167) | 2.67 kg/m |
| Possible support spacing (EF017261) | 1.5 m |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 3100 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 2250 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 1500 |
| Safe working load according to IEC 61537 with support spacing 3.0 m (EF017267) | 1100 |
| Safe working load according to IEC 61537 with support spacing 4.0 m (EF017268) | 450 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
