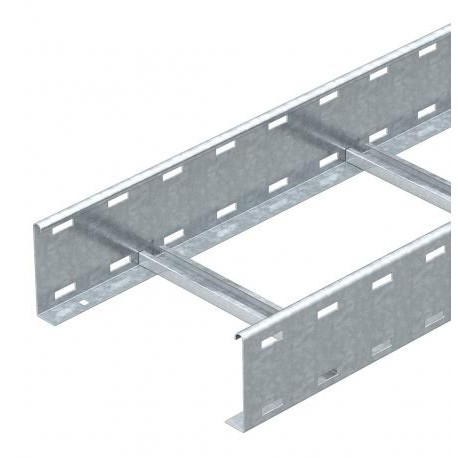

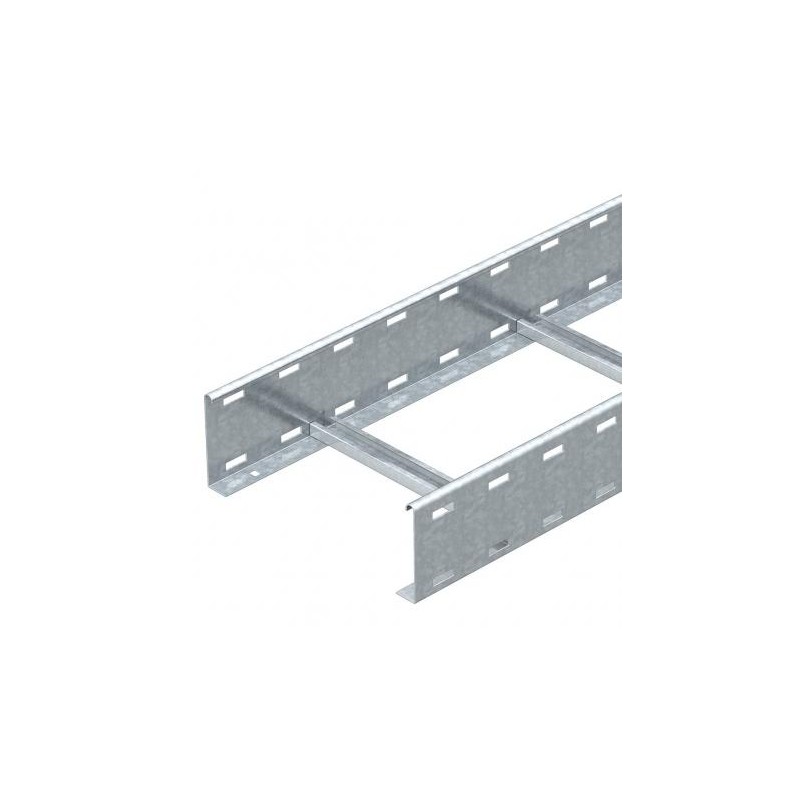

LG 112 VS 6 FS 6216442 OBO BETTERMANN TRAY LADDER LG 112 VS 6 FS
LG 112 VS 6 FS
6216442
OBO BETTERMANN
6 m.
TRAY LADDER LG 112 VS 6 FS
Ladder tray, perforated, with step VS, 110x200x6000, galvanized steel in band, DIN EN 10346
Cable ladder LG 110, 6 m VS FS. Cable ladder with perforated side rail of side height 110 mm with riveted C profile rungs, open in an upwards direction.Magnetic shield insulation without cover 10 dB, with cover 15 dB.
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 9,0338 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 110x200x6000 |
| Dimension | 110x200x6000 |
| Dimension B | 200 mm |
| Fastening of rung | Blind riveted |
| Height | 110 mm |
| Length | 6000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rail thickness | 1,5 mm |
| Rung distance | 300 mm |
| Rung slot dimension | 16,50 |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Side rail version | Flat profile |
|---|---|
| Support spacing 2.0 m | 3,1 kN/m |
| Support spacing 2.5 m | 2 kN/m |
| Support spacing 3.0 m | 1,4 kN/m |
| Support spacing 3.5 m | 0,9 kN/m |
| Support spacing 4.0 m | 0,65 kN/m |
| Support spacing 4.5 m | 0,55 kN/m |
| Support spacing 5.0 m | 0,5 kN/m |
| Support spacing 6.0 m | 0,15 kN/m |
| Surface | Strip galvanized |
| Usable cross-section | 188 cm² |
| Usable cross-section | 18800 mm² |
| Version of the rungs | Profile perforated |
| Wide-span version | no |
| Width | 200 mm |
Datasheet - PDF
