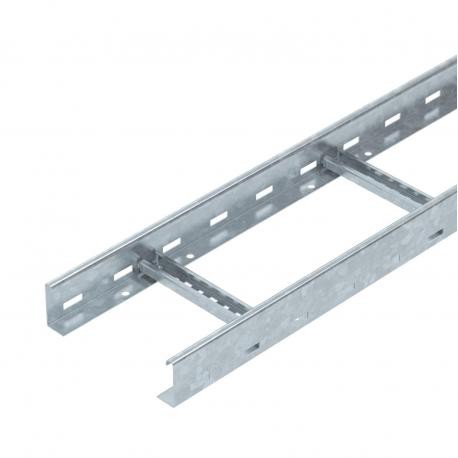

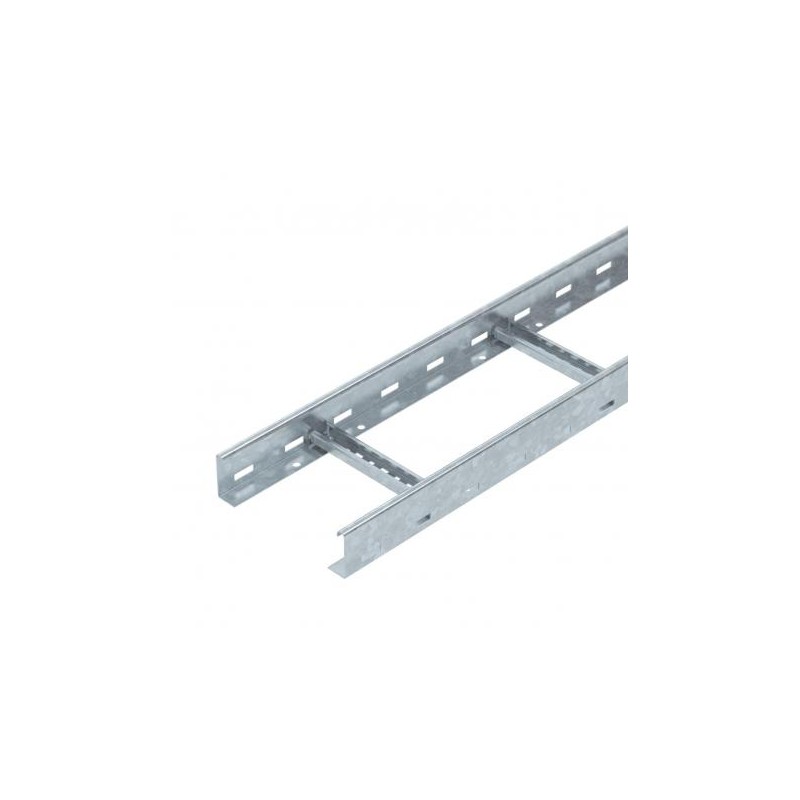

LCIS 620 6 FT 6209643 OBO BETTERMANN TRAY LADDER TREAD PERFORATED, WELDED, LCIS 620 6 FT
LCIS 620 6 FT
6209643
OBO BETTERMANN
6 m.
TRAY LADDER TREAD PERFORATED, WELDED, LCIS 620 6 FT
LCIS 620 6 FT ladder tray, Perforated step, welded 60x200x6000 Steel, St, Hot dip galvanized, DIN EN ISO 1461
LCIS 60 cable ladder, 6 m C30 FT. Cable ladder with a 60 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using hold-down clamps, type LKS 40. The slot dimension of the rung is 16.5 mm and the appropriate clamp clip is type 2056. Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Cable carrying systems > Cable ladder/wide span cable ladder
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 6,1553 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 60x200x6000 |
| Dimension B | 200 mm |
| Fastening of rung | Welded |
| Height | 60 mm |
| Length | 6000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rail thickness | 1,5 mm |
| Rung distance | 300 mm |
| Rung slot dimension | 17,00 |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Side rail version | Flat profile |
| Support spacing 1.5 m | 3,3 kN/m |
|---|---|
| Support spacing 2.0 m | 2 kN/m |
| Support spacing 2.5 m | 1,3 kN/m |
| Support spacing 3.0 m | 1 kN/m |
| Support spacing 3.5 m | 0,78 kN/m |
| Support spacing 4.0 m | 0,4 kN/m |
| Support spacing 4.5 m | 0,3 kN/m |
| Support spacing 5.0 m | 0,2 kN/m |
| Surface | Hot-dip galvanised |
| Usable cross-section | 80 cm² |
| Usable cross-section | 8000 mm² |
| Version of the rungs | Profile perforated |
| Wide-span version | no |
| Width | 200 mm |
| Feature Name | Feature Value |
|---|---|
| Type of side joist (EF007666) | Flat profile |
| Side perforation (EF001122) | Yes |
| Type of rung (EF001060) | Slotted channel |
| Fixation rung (EF008307) | Welded |
| Height (EF000040) | 60 mm |
| Width (EF000008) | 200 mm |
| Length (EF001438) | 6000 mm |
| Useful cross section (EF005140) | 8000 mm² |
| Suitable for circuit integrity (EF007806) | No |
| Rung centre spacing (EF008185) | 300 mm |
| Vertical cable ladder (EF017249) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Hot dip galvanized |
| Weight (EF000167) | 2.83 kg/m |
| Possible support spacing (EF017261) | 1.5 m |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 3300 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 2000 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 1300 |
| Safe working load according to IEC 61537 with support spacing 3.0 m (EF017267) | 1000 |
| Safe working load according to IEC 61537 with support spacing 4.0 m (EF017268) | 400 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
