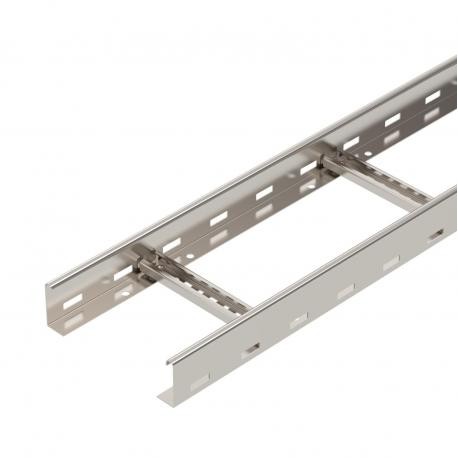

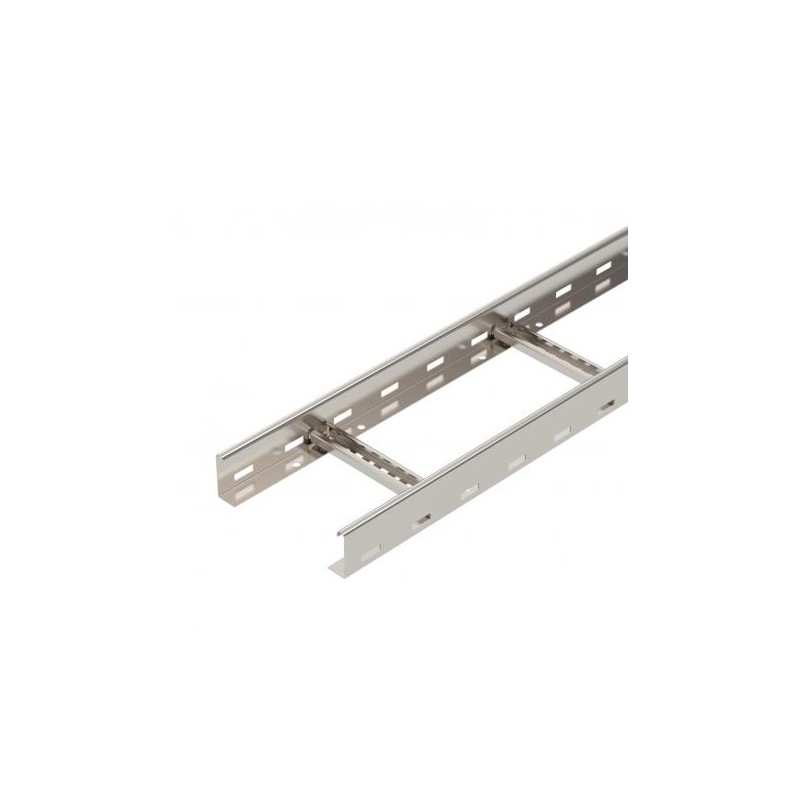

LCIS 620 6 A2 6207252 OBO BETTERMANN TRAY LADDER TREAD PERFORATED, WELDED, LCIS 620 6 A2
LCIS 620 6 A2
6207252
OBO BETTERMANN
6 m.
TRAY LADDER TREAD PERFORATED, WELDED, LCIS 620 6 A2
Perforated rung ladder tray, welded 60x200x6000, stainless steel 1.4301, A2, 1.4301
Cable ladder LCIS 60, 6 m C30 A2. Cable ladder with 60 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using clamps, type LKS 40. The slot dimension of the frame is 16.5 mm and the appropriate clamp clip is type 2056. Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Cable carrying systems > Cable ladder/wide span cable ladder
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 13,4903 kg CO2e / 1 Meter |
|---|---|
| Colour | stainless steel |
| Dimension | 60x200x6000 |
| Dimension B | 200 mm |
| Fastening of rung | Welded |
| Height | 60 mm |
| Length | 6000 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4301 |
| Rail thickness | 1,5 mm |
| Rung distance | 300 mm |
| Rung slot dimension | 17,00 |
| Rustproof steel, pickled | yes |
| Side perforation | yes |
| Side rail version | Flat profile |
| Support spacing 1.5 m | 3,3 kN/m |
|---|---|
| Support spacing 2.0 m | 2 kN/m |
| Support spacing 2.5 m | 1,3 kN/m |
| Support spacing 3.0 m | 1 kN/m |
| Support spacing 3.5 m | 0,78 kN/m |
| Support spacing 4.0 m | 0,4 kN/m |
| Support spacing 4.5 m | 0,3 kN/m |
| Support spacing 5.0 m | 0,2 kN/m |
| Surface | Bright, treated |
| Usable cross-section | 8000 mm² |
| Usable cross-section | 80 cm² |
| Version of the rungs | Profile perforated |
| Wide-span version | no |
| Width | 200 mm |
| Feature Name | Feature Value |
|---|---|
| Type of side joist (EF007666) | Flat profile |
| Side perforation (EF001122) | Yes |
| Type of rung (EF001060) | Slotted channel |
| Fixation rung (EF008307) | Welded |
| Height (EF000040) | 60 mm |
| Width (EF000008) | 200 mm |
| Length (EF001438) | 6000 mm |
| Useful cross section (EF005140) | 8000 mm² |
| Suitable for circuit integrity (EF007806) | No |
| Rung centre spacing (EF008185) | 300 mm |
| Vertical cable ladder (EF017249) | No |
| Material (EF002169) | Stainless steel |
| Material quality (EF001257) | Stainless steel 304 (1.4301) |
| Surface protection (EF000139) | Untreated |
| Weight (EF000167) | 2.67 kg/m |
| Possible support spacing (EF017261) | 1.5 m |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 3300 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 2000 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 1300 |
| Safe working load according to IEC 61537 with support spacing 3.0 m (EF017267) | 1000 |
| Safe working load according to IEC 61537 with support spacing 4.0 m (EF017268) | 400 |
