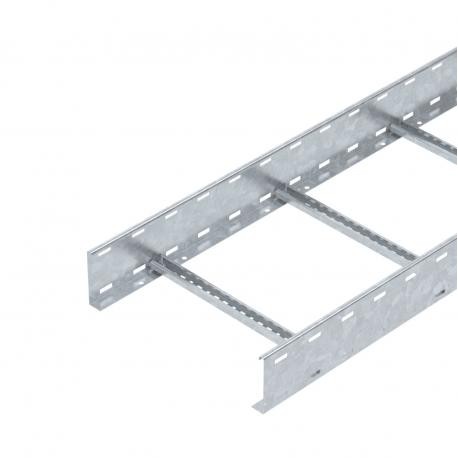

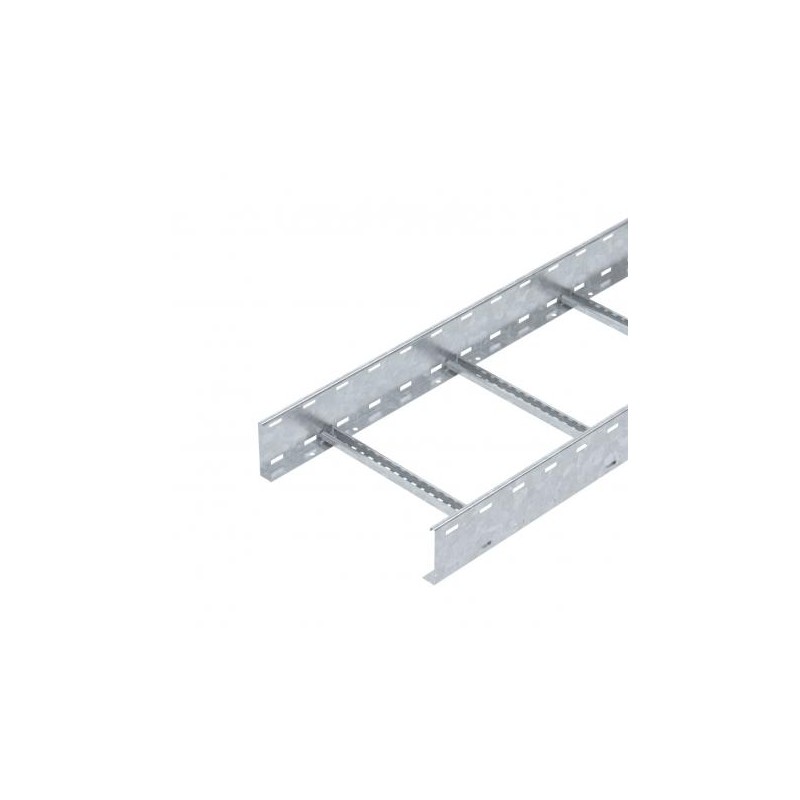

LCIS 1130 6 FT 6209822 OBO BETTERMANN TRAY LADDER TREAD PERFORATED, WELDED, LCIS 1130 6 FT
LCIS 1130 6 FT
6209822
OBO BETTERMANN
6 m.
TRAY LADDER TREAD PERFORATED, WELDED, LCIS 1130 6 FT
Ladder tray, perforated rung, welded, 110x300x6000, hot dip galvanized steel, DIN EN ISO 1461
Cable ladder LCIS 110, 6 m C30 FT. Cable ladder with 110 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using clamps, type LKS 40. The slot dimension of the frame is 16.5 mm and the appropriate clamp clip is type 2056. Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Cable carrying systems > Cable ladder/wide span cable ladder
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 9,3065 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Dimension | 110x300x6000 |
| Dimension B | 300 mm |
| Fastening of rung | Welded |
| Height | 110 mm |
| Length | 6000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Rail thickness | 1,5 mm |
| Rung distance | 300 mm |
| Rung slot dimension | 16,50 |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Side rail version | Flat profile |
| Support spacing 2.0 m | 3 kN/m |
|---|---|
| Support spacing 2.5 m | 2 kN/m |
| Support spacing 3.0 m | 1,4 kN/m |
| Support spacing 3.5 m | 1,05 kN/m |
| Support spacing 4.0 m | 0,8 kN/m |
| Support spacing 4.5 m | 0,7 kN/m |
| Support spacing 5.0 m | 0,65 kN/m |
| Support spacing 6.0 m | 0,35 kN/m |
| Surface | Hot-dip galvanised |
| Usable cross-section | 270 cm² |
| Usable cross-section | 27000 mm² |
| Version of the rungs | Profile perforated |
| Wide-span version | no |
| Width | 300 mm |
| Feature Name | Feature Value |
|---|---|
| Type of side joist (EF007666) | Flat profile |
| Side perforation (EF001122) | Yes |
| Type of rung (EF001060) | Slotted channel |
| Fixation rung (EF008307) | Welded |
| Height (EF000040) | 110 mm |
| Width (EF000008) | 300 mm |
| Length (EF001438) | 6000 mm |
| Useful cross section (EF005140) | 27000 mm² |
| Suitable for circuit integrity (EF007806) | No |
| Rung centre spacing (EF008185) | 300 mm |
| Vertical cable ladder (EF017249) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Hot dip galvanized |
| Weight (EF000167) | 4.23 kg/m |
| Possible support spacing (EF017261) | 2 m |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 3000 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 2000 |
| Safe working load according to IEC 61537 with support spacing 3.0 m (EF017267) | 1400 |
| Safe working load according to IEC 61537 with support spacing 4.0 m (EF017268) | 800 |
