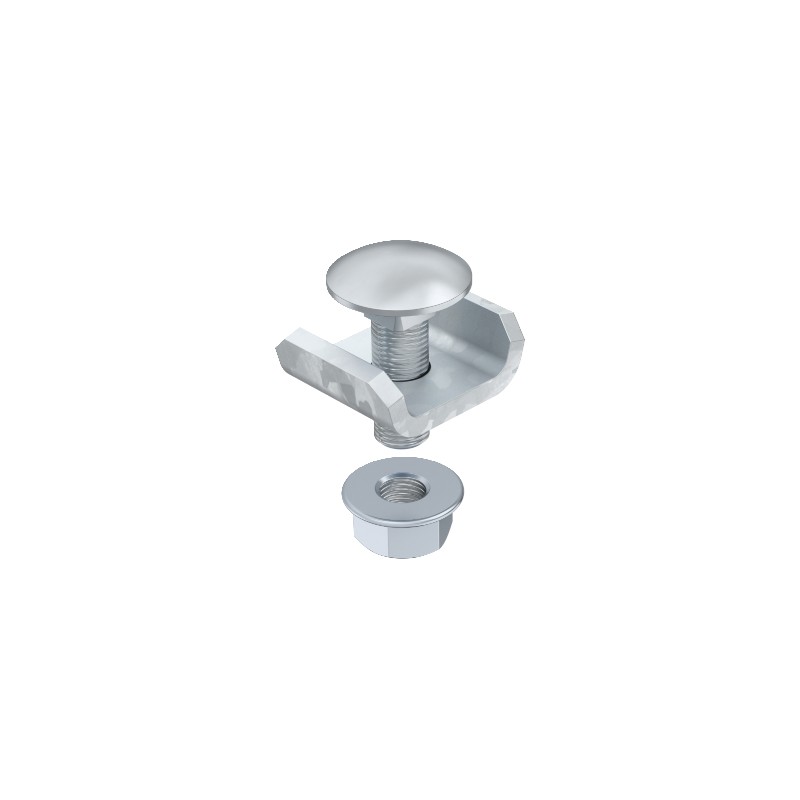

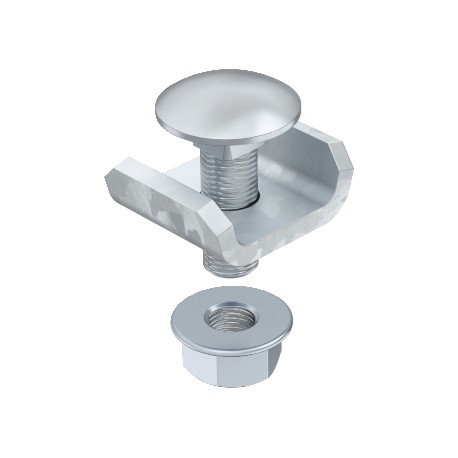

GUV 6 FT 6016573 OBO BETTERMANN U-shaped connector, for grid tray, 24x28x30, hot-dip galvanized steel, DIN E..
GUV 6 FT
6016573
OBO BETTERMANN
20
U-shaped connector, for grid tray, 24x28x30, hot-dip galvanized steel, DIN EN ISO 1461
GUV 6 FT U-Connector for 24x28x30 Zinc Grid Tray Steel, St Hot Dip Galvanized, DIN EN ISO 1461
Joint connector FT. Joint connector for mesh cable tray, type SGR.Figure: Positioning and quantity of mesh cable tray connectors.50–150 mm = 2 units200–300 mm = 3 units400–450 mm = 4 units500–600 mm = 5 units
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Adjustable connector, horizontal | no |
|---|---|
| Articulated connector, vertical | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1111 kg CO2e / 1 Piece |
| Colour | zinc |
| Connection type | Screw connector |
| Dimension | 24 x 28 |
| Dimension | 24x28x30 |
| Height | 1,18 in |
| Height | 30 mm |
| Length | 24 mm |
| Maintain electrical functions | no |
|---|---|
| Material | Steel |
| Rustproof steel, pickled | yes |
| Suitable for cable ladder | no |
| Suitable for cable tray | no |
| Suitable for mesh cable tray | yes |
| Suitable for mesh cable tray wire, min. | 6 mm |
| Surface | Hot-dip galvanised |
| Width | 1,1 in |
| Width | 28 mm |
| Feature Name | Feature Value |
|---|---|
| Hinged joint horizontal (EF006392) | No |
| Hinged joint vertical (EF006393) | No |
| Type of connection (EF000064) | Screw connector |
| Suitable for wire mesh tray (EF005163) | Yes |
| Suitable for cable ladder (EF005165) | No |
| Suitable for cable tray (EF005166) | No |
| Length (EF001438) | 24 mm |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Stainless steel, pickled (EF006388) | Yes |
| Surface protection (EF000139) | Hot dip galvanized |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
