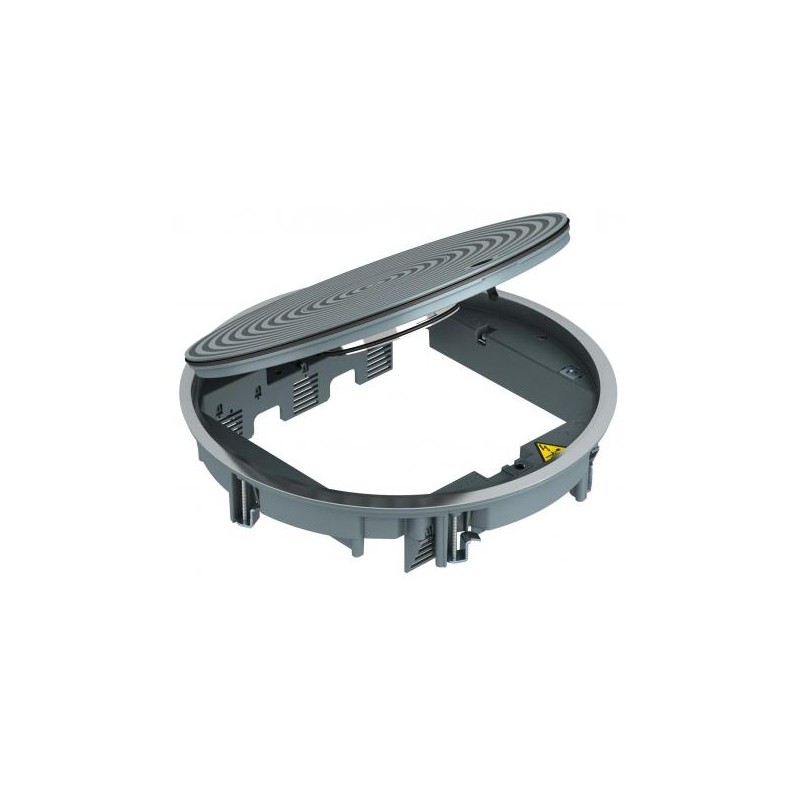

GRAF9-2 U 7011 7405746 OBO BETTERMANN SET P. CLEANING WITH WATER GRAF9-2 U 7011
GRAF9-2 U 7011
7405746
OBO BETTERMANN
SET P. CLEANING WITH WATER GRAF9-2 U 7011
GRAF9 universal service outlet, wet-cleaned with structured lid. Service outlet with tube body for wet-cleaned floors for up to 12 individual Modul 45 devices in 3 UT4 universal supports, use in duct and trunking systems and system floors indoors.Service outlet with tube body for wet cleaned floors, 3-compartment, for the installation of MT9 mounting support. Three type APMT5 cover plates can be installed.
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Approvals | VDE |
|---|---|
| Cable outlet version | Lowerable tube body |
| Clamping range D, max. | 73 mm |
| Clamping range D, min. | 4 mm |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,9255 kg CO2e / 1 Piece |
| Colour | Iron grey; RAL 7011 |
| Dimension | Ø325x74 |
| External diameter | 325 mm |
| Floor care | Wet |
| Floor covering protection frame | yes |
| Floor height, min. | 80 mm |
| Frame version | Carpet protection frame |
| Heavy-duty version | yes |
| Installation depth | 80 mm |
| Installation diameter | 305 |
| Installation system type | UT4 |
| Material | Cast aluminium |
| Nominal size for device installation units | R9 |
| Number of installable devices | 12 |
|---|---|
| Number of mounting boxes | 3 |
| Opening mechanism | Sash lock |
| Protection rating (IP) when unused | IP45 |
| Protection rating (IP) when used | IP20 |
| Protection rating IK code | IK10 |
| Seal installation option | yes |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | yes |
| Suitable for underfloor ducts | yes |
| Suitable for wet care | yes |
| Version for | Round |
| Vertical load, large area | to 10,000 N |
| Vertical load, small area | to 3,000 N |
| With floor covering recess | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
