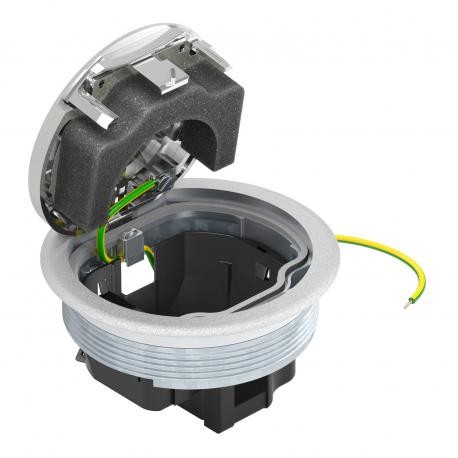

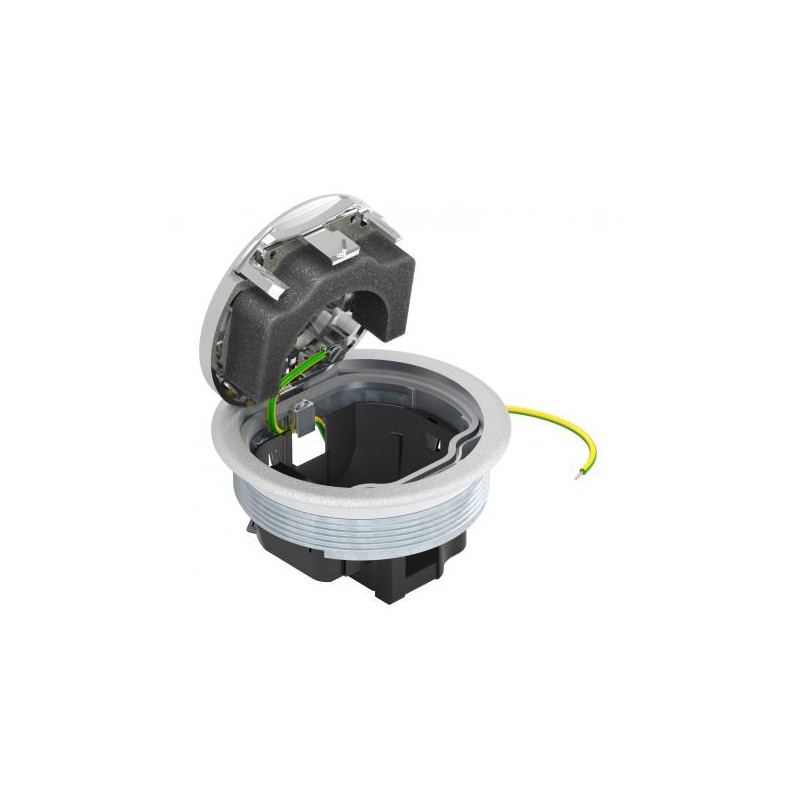

GESRC2 7405595 OBO BETTERMANN Mechanism holder assembly, c. prot. frame, chrome-plated, 130x130x64Die-cast w..
GESRC2
7405595
OBO BETTERMANN
Mechanism holder assembly, c. prot. frame, chrome-plated, 130x130x64Die-cast with zinc, Zn, chrome-plated
GESRC2 mechanism set with prot. frame, chrome plated 130x130x64 Die-cast with zinc, Zn chrome plated
Service outlet - Empty chromium version. Round installation unit with floor covering protection frame for direct installation in the connection socket UDL2-120 for indoor use. When closed, the installation unit can be wet-cleaned. The minimum installation depth is 70 mm.Cover plate and socket of the Modul 45 series should be ordered separately.
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,907 kg CO2e / 1 Piece |
|---|---|
| Dimension | 130x130x64 |
| External diameter | 130 mm |
| Floor care | Wet |
| Floor covering protection frame | yes |
| Material | Die-cast zinc |
| Opening mechanism | Locking slider |
| Protection rating (IP) when unused | IP66 |
| Protection rating (IP) when used | IP20 |
| Protection rating IK code | IK10 |
|---|---|
| Suitable for cavity floor installation | no |
| Suitable for raised floor installation | no |
| Suitable for underfloor ducts | yes |
| Suitable for wet care | yes |
| Surface | Chrome-plated |
| Version for | Round |
| With floor covering recess | no |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
