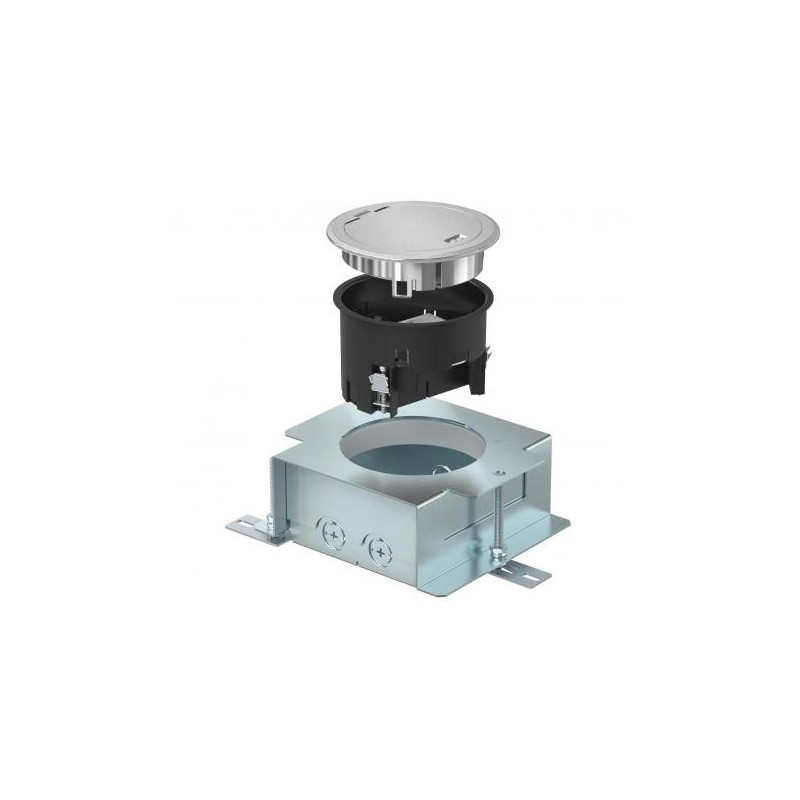

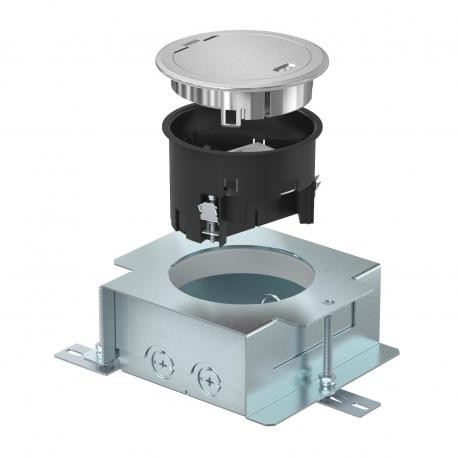

GES R2 Cr V SFB 7408845 OBO BETTERMANN Floor socket with lid Chrome 2xtomas VDE and box 140x140x85 Die casti..
GES R2 Cr V SFB
7408845
OBO BETTERMANN
Floor socket with lid Chrome 2xtomas VDE and box 140x140x85 Die casting with zinc, Zn
GES R2 as an assembly kit. Round GES R2 service outlet with hinged cover, floor covering protection frame and UD GES R2 screed socket for installation in floors with screed structures in internal areas. Installation unit with a double power socket with a 33° insertion direction. At the side, next to the socket, there is space for an optional two connection sockets for data technology applications. When closed, the installation unit can be wet-cleaned. The minimum installation depth is 85 mm. Chrome-plated surface.
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Approvals | VDE |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 11,4724 kg CO2e / 1 Piece |
| Dimension | 140x140x85 |
| External diameter | 140 mm |
| Floor care | Wet |
| Floor height, max. | 130 mm |
| Floor height, min. | 85 mm |
| Frame version | Carpet protection frame |
| Installation depth | 85 mm |
| Installation diameter | 122 |
| Material | Die-cast zinc |
| Opening mechanism | Locking slider |
|---|---|
| Protection rating | IP66 |
| Protection rating (IP) when unused | IP66 |
| Protection rating (IP) when used | IP20 |
| Protection rating IK code | IK10 |
| Screed height, max. | 130 mm |
| Screed height, min. | 85 mm |
| Standard | EN 50085-2-2 |
| Vertical load, large area | to 15,000 N |
| Vertical load, small area | to 3,000 N |
| Feature Name | Feature Value |
|---|---|
| Material cover (EF005414) | Other |
| Outer diameter (EF000015) | 140 mm |
| Built-in diameter (EF000943) | 122 mm |
| Min. built-in depth (EF005027) | 85 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
