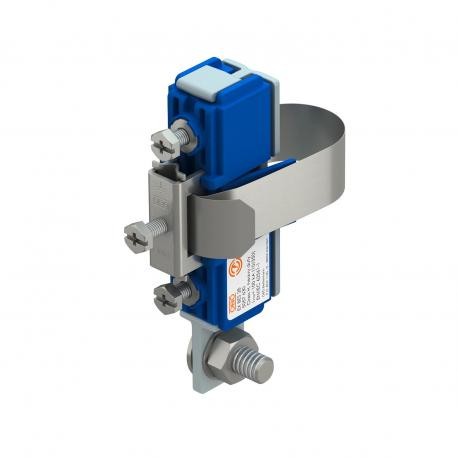

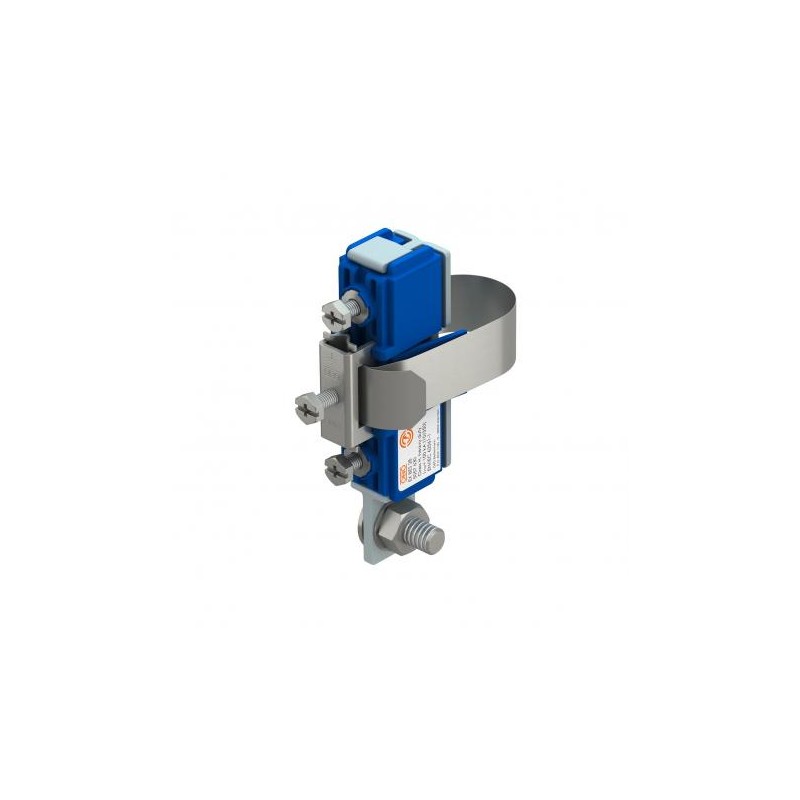

EX BES 500 5057645 OBO BETTERMANN Grounding clamp For EX areas 500mm
EX BES 500
5057645
OBO BETTERMANN
Grounding clamp For EX areas 500mm
Earthing pipe clamp for EX Zone 1/21, 2/22. For ignition spark-free protection/functional equipotential bonding according to DIN VDE 0100-410/-540 and ignition spark-free lightning protection equipotential bonding according to VDE 0185-305 (IEC 62305) in systems according to VDE 0165-1 (IEC/EN 60079-14).• For pipes of 6–500 mm external diameter• Use in potentially explosive areas, Ex zone 1 and 2/21 and 22• Tested according to explosion group IIC• Lightning current carrying capacity class H (100 kA) to VDE 0185-561-1 (IEC/EN 62561-1)• UV-resistant and halogen-free plastic hood• Secured with bolts against self-loosening to VDE 0185-305-3, Supplementary Sheet 2• Suitable for indoor and outdoor applications
TBS Transient and lightning protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 2,4809 kg CO2e / 1 Piece |
|---|---|
| Cross-section of cable to be connected, max. | 78 mm² |
| Cross-section of cable to be connected, min. | 16 mm² |
| Dimension | 500mm |
| Dimension L | 1800 mm |
| For pipe diameter, max. | 500 mm |
|---|---|
| For pipe diameter, min. | 300 mm |
| Lightning current carrying capacity | H/100 kA |
| Number of conductors | 2 |
| Feature Name | Feature Value |
|---|---|
| Cross section of the connecting conductor (EF003520) | 16 mm² |
| Number of conductors (EF000879) | 2 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SURGE PROTECTION OBO EN.pdf | 24 Mbytes |
|
