DUG 250-3 R4SL 7401406 OBO BETTERMANN CAP ADAPT. FOR HEAVY LOADS, DUG 250-3 R4SL
DUG 250-3 R4SL
7401406
OBO BETTERMANN
CAP ADAPT. FOR HEAVY LOADS, DUG 250-3 R4SL

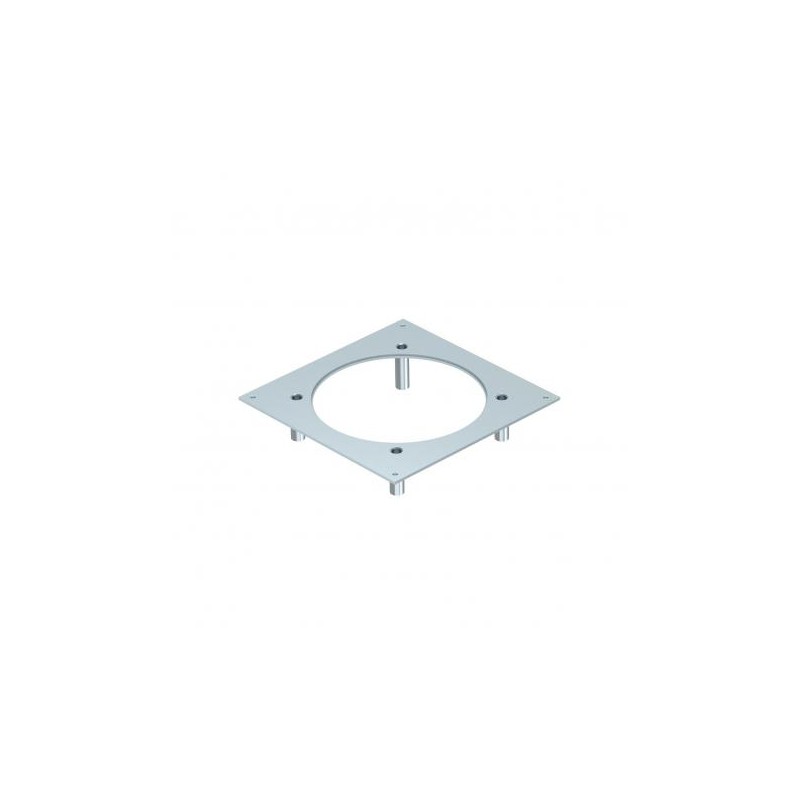

Heavy-duty mounting lid for 250, nominal size R4. The heavy-duty mounting lid for the UZD250 underfloor box is suitable for the installation of a round heavy-duty cassette of nominal size R4. The installation opening is recessed by 3 mm and can be closed subsequently by a lid blanking plate.
UFS Underfloor piping systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 7,8409 kg CO2e / 1 Piece |
|---|---|
| Dimension | 282x282x59 |
| Dimension A | 282 mm |
| Dimension d Ø | 215 mm |
| Floor care | Dry |
| Heavy-duty version | yes |
| Installation opening for on-floor tank | no |
| Length | 282 mm |
| Material | Steel |
| Material thickness | 4 mm |
| Mounting opening | Round |
|---|---|
| Mounting opening cover | no |
| Nominal size | 250 mm |
| Nominal size for device installation units | R4 |
| Seal installation option | no |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Surface | Strip galvanized |
| Width | 282 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FLOOR INSTALLATION SYSTEMS AND UNDERFLOOR APPLICATIONS OBO EN.pdf | 42 Mbytes |
|
