BSKH09-E0511 7215593 OBO BETTERMANN BSKH09-E0511 End Cap, for BSKH09-K0511 50x110 Lightweight Concrete with ..
BSKH09-E0511
7215593
OBO BETTERMANN

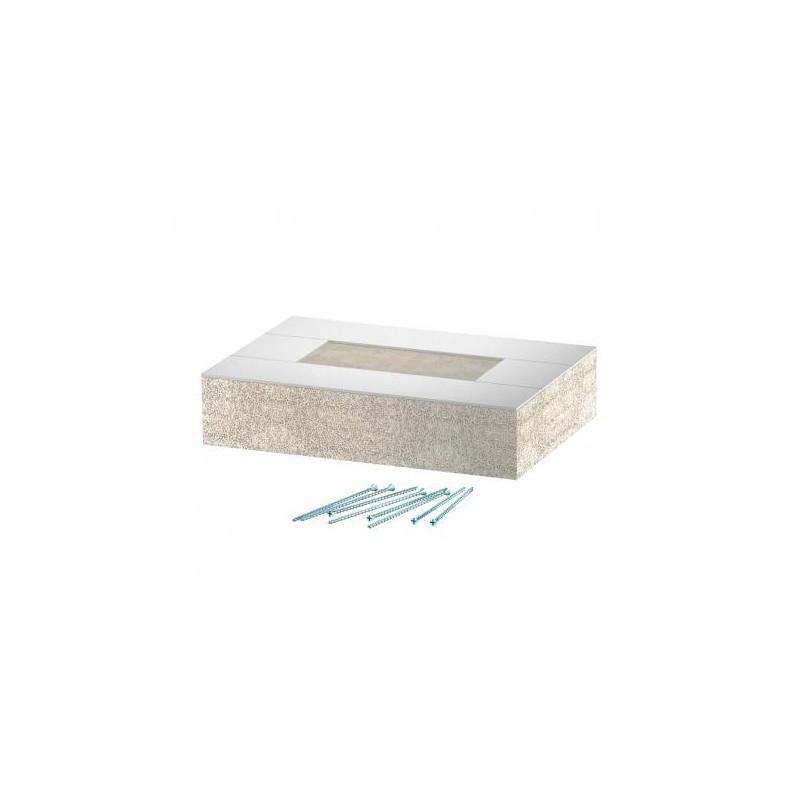

BSKH09-E0511 End Cap, for BSKH09-K0511 50x110 Lightweight Concrete with Fiberglass
Final cover BSKH09-E0511 for BSKH09-K0511 50x110 grey
End piece for PYROLINE® Con S BSKH09-K0511 fire protection duct. End piece for PYROLINE® Con S fire protection duct, type BSKH09-K0511, consisting of fibreglass lightweight concrete which is resistant to water and frost for closing the duct ends.Including countersunk head screws and stuck-on sealing strip.
BSS fire protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Colour | Grey |
|---|---|
| Dimension | 50x110 |
| Dimension A | 40 mm |
| Dimension B | 190 mm |
| Dimension H | 133 mm |
| Dimension L | 40 mm |
| Fire resistance class E − function maintenance | 30 |
| Fire resistance class I − installation duct | 90 |
| Height | 133 mm |
|---|---|
| Jacketing | Without |
| Length | 40 mm |
| Material | Fibreglass lightweight concrete |
| Material of the insulation | Glass-fibre lightweight concrete |
| Number of flammable sides | 4 |
| Version for | Left/right |
| Width | 190 mm |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Left/right |
| Fire resistance class I - installation duct (EF007765) | 90 |
| Fire resistance class E - circuit integrity (EF007764) | 30 |
| Outer height (EF008489) | 133 mm |
| Outer width (EF008488) | 190 mm |
| Number of flame resistant sides (EF007591) | 4 |
| Insulating material (EF002520) | Glass fibre enforced light concrete |
| Sheathing (EF008096) | None |
| Colour (EF000007) | Grey |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FIRE TESTED SUPPORT AND ROUTING SYSTEMS OBO EN.pdf | 18 Mbytes |
|
| PDF CATALOGUE INSULATION AND CABLE BANDAGES OBO EN.pdf | 12 Mbytes |
|
