BSKD09-K1021 7215144 OBO BETTERMANN Fireproof channel I90/E30 BSKD09-K1021, Direct mount 1000x105x210 Lightw..
BSKD09-K1021
7215144
OBO BETTERMANN
1 m.

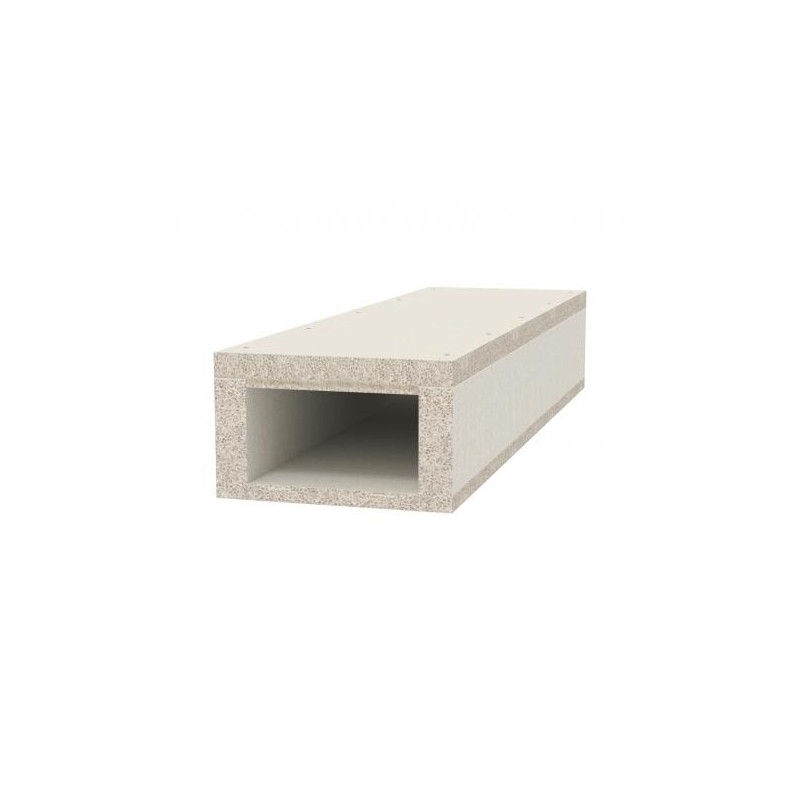

Fireproof channel I90/E30 BSKD09-K1021, Direct mount 1000x105x210 Lightweight concrete with fiberglass. Unit price and packaging units in meters.
Flame retardant channel I90/E30 BSKD09-K1021 Direct mounting 1000x105x210 grey
PYROLINE® Con D BSK I90/E30 fire protection duct. Fire protection duct made from water and frost-proof fibreglass lightweight concrete of building material class A1 according to EN 13501-1 for fireproof laying of cables in rescue and emergency routes, and for the maintenance of electrical functionality of safety-relevant systems. Classification I90 as I duct according to DIN 4102 Part 11 and classification E30 as E duct according to DIN 4102 Part 12.Mounting of the duct directly on walls or under ceilings.Including countersunk head screws and sealing strip.
BSS fire protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Colour | Grey |
|---|---|
| Cover fastening | Screw |
| Dimension | 1000x105x210 |
| Dimension b | 210 mm |
| Dimension B | 290 mm |
| Dimension h | 105 mm |
| Dimension H | 165 mm |
| Fire resistance class E − function maintenance | 30 |
| Fire resistance class I − installation duct | 90 |
| Height | 165 mm |
| Jacketing | Without |
|---|---|
| Length | 1000 mm |
| Material | Fibreglass lightweight concrete |
| Material of the insulation | Glass-fibre lightweight concrete |
| Number of flammable sides | 3 |
| Partitions possible | yes |
| Usable cross-section | 22050 mm² |
| Width | 290 mm |
| With perforation | no |
| Feature Name | Feature Value |
|---|---|
| Fire resistance class I - installation duct (EF007765) | 90 |
| Fire resistance class E - circuit integrity (EF007764) | 30 |
| Outer height (EF008489) | 165 mm |
| Outer width (EF008488) | 290 mm |
| Length (EF001438) | 1000 mm |
| Useful cross section (EF005140) | 22050 mm² |
| Number of flame resistant sides (EF007591) | 3 |
| Insulating material (EF002520) | Glass fibre enforced light concrete |
| Sheathing (EF008096) | None |
| Colour (EF000007) | Grey |
| Partitions possible (EF008089) | Yes |
| Cover attachment (EF004586) | Screw tight |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE FIRE TESTED SUPPORT AND ROUTING SYSTEMS OBO EN.pdf | 18 Mbytes |
|
| PDF CATALOGUE INSULATION AND CABLE BANDAGES OBO EN.pdf | 12 Mbytes |
|
