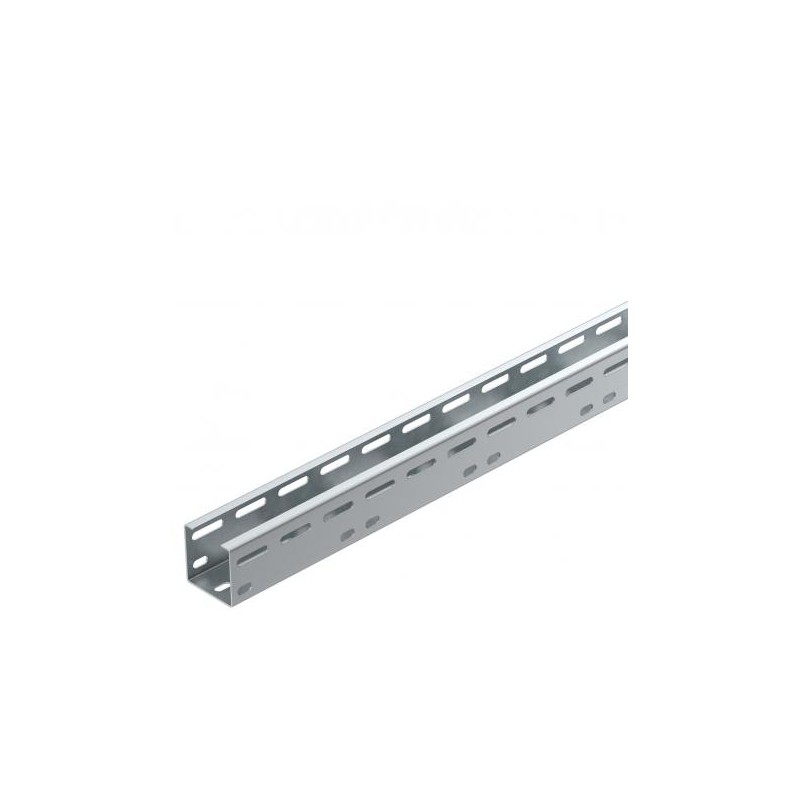

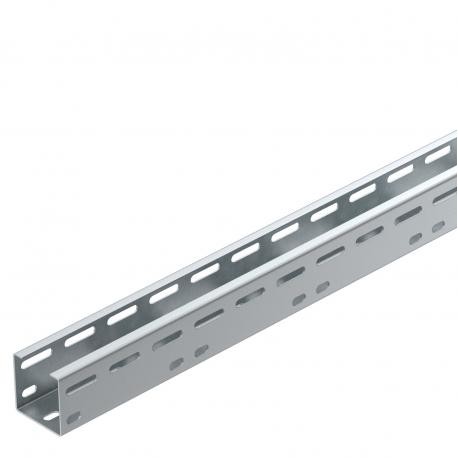

AZK A 050 FT 6076149 OBO BETTERMANN CHANNEL FOR SMALL-TO-Z AZK A 050 FT
AZK A 050 FT
6076149
OBO BETTERMANN
3 m.
CHANNEL FOR SMALL-TO-Z AZK A 050 FT
Small channel A-Z, specific drilling, 50x50x3000, hot dip galvanized steel, DIN EN ISO 1461
AZ small duct 50 FT, without side windows. AZ channel with a side height of 50 mm.Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Cable carrying systems > Cable tray/wide span cable tray
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 3,963 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 50x50x3000 |
| Height | 50 mm |
| Length | 3000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Plate thickness | 1,5 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
|---|---|
| Support spacing 1.0 m | 3 kN/m |
| Support spacing 1.5 m | 2,5 kN/m |
| Support spacing 2.0 m | 1,7 kN/m |
| Support spacing 2.5 m | 0,85 kN/m |
| Support spacing 3.0 m | 0,5 kN/m |
| Surface | Hot-dip galvanised |
| Usable cross-section | 2500 mm² |
| Usable cross-section | 25 cm² |
| Wide-span version | no |
| Width | 50 mm |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 50 mm |
| Width (EF000008) | 50 mm |
| Material thickness (EF000386) | 1.5 mm |
| Length (EF001438) | 3000 mm |
| Useful cross section (EF005140) | 2500 mm² |
| Side perforation (EF001122) | Yes |
| Bottom perforation (EF004545) | Yes |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Coupler not included |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Hot dip galvanized |
| Weight (EF000167) | 1.66 kg/m |
| Possible support spacing (EF017261) | 1 m |
| Safe working load according to IEC 61537 with support spacing 1.0 m (EF017263) | 3000 |
| Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) | 2500 |
| Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) | 1700 |
| Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) | 850 |
| Safe working load according to IEC 61537 with support spacing 3.0 m (EF017267) | 500 |
