3498776 OBO BETTERMANN ANCHORAGE OF ROOF HOLE EASY M12
Easy M12
3498776
OBO BETTERMANN
25
ANCHORAGE OF ROOF HOLE EASY M12

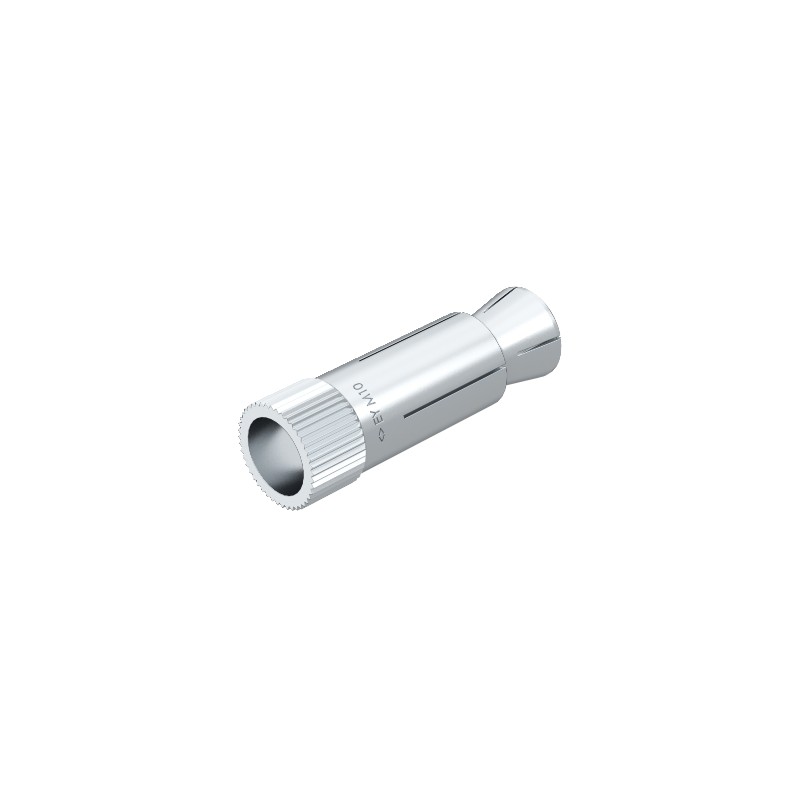

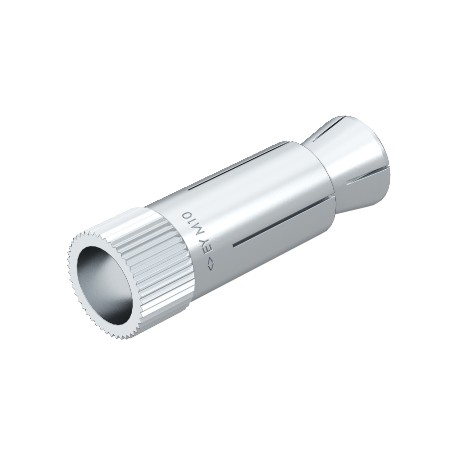

Hollow core anchor Easy. Hollow core anchor "Easy" for mounting in prestressed hollow concrete slabs. When the screw or the nut is tightened, the cone is released from the anchor sleeve and pulled into it. This makes the anchor expand in the hollow space, thereby creating form lock. The hollow core anchor can also be used when the expansion area is not located in the cavity.The fastening of the component can be done with standard screws and threaded rods.
Fasteners > Cavity fixing
KTS cable support systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| Colour | zinc |
|---|---|
| Dimension | M12 |
| Dimension L | 58 mm |
| Drill hole depth | 70 mm |
| Drill hole diameter, min. | 18 mm |
| Length | 58 mm |
| Material | Steel |
|---|---|
| Surface | Electrogalvanized |
| Thread | M12 |
| Thread metric | 12 |
| With bolts | no |
| With thread | yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KABELTRAGSYSTEME OBO EN.pdf | 41 Mbytes |
|
| 3498776 OBO BETTERMANN ANCHORAGE OF ROOF HOLE EASY M12 | 52 Kbytes |
|
