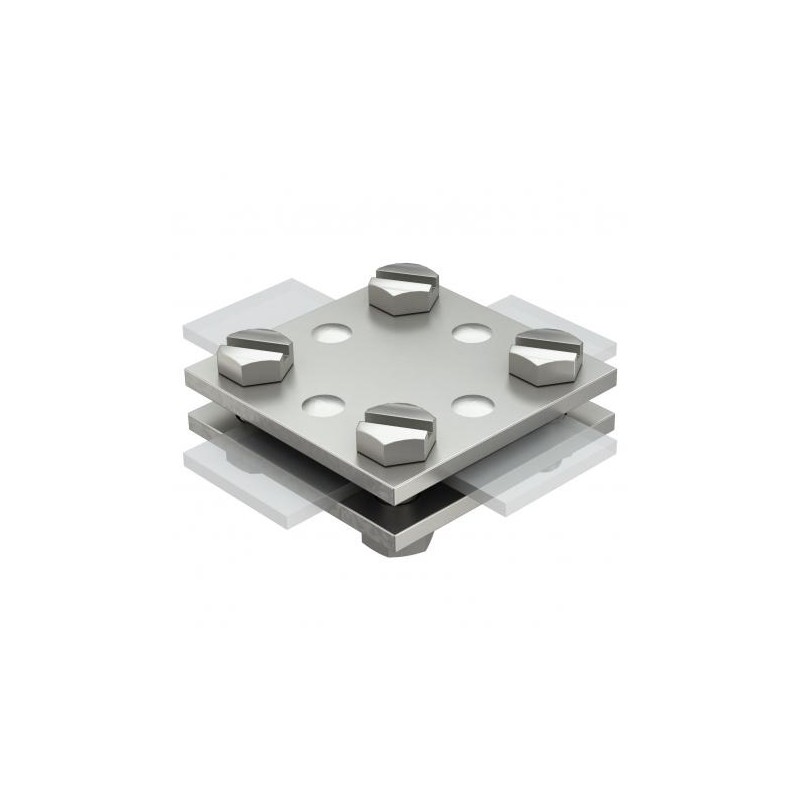

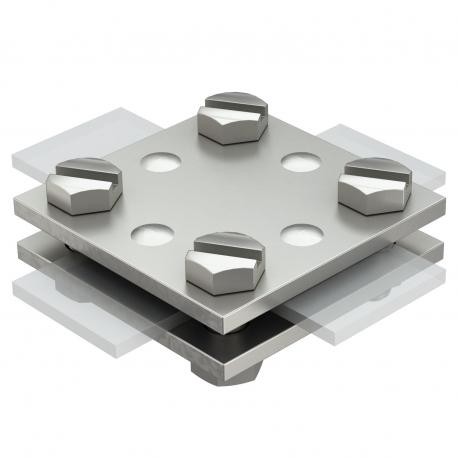

256 S6 V4A 5314574 OBO BETTERMANN Flat/flat cross connector 256 S6 V4A, without intermediate plate 30mm Stai..
256 S6 V4A
5314574
OBO BETTERMANN
3600
Flat/flat cross connector 256 S6 V4A, without intermediate plate 30mm Stainless steel 1.4401, V4A, 1.4401
Cross-connector flat/flat without adapter plate A4. • Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)• Fit: Max. FL 30 x FL 30• Without adapter plate• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8
TBS Transient and lightning protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 1,1874 kg CO2e / 1 Piece |
|---|---|
| Dimension | 30mm |
| Dimension A | 60 mm |
| Dimension B | 60 mm |
| Fit | max. FL30 mm |
| Lightning current carrying capacity | H/100 kA |
|---|---|
| Material | Stainless steel 1.4401 |
| Suitable for connection | Flat conductor Fl 30 / Fl 30 |
| Type of connector | Cross-connectors |
| Type of fastening screw | Hexagonal bolt |
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Stainless steel 316 |
| Type of fastening screws (EF000609) | Hexagon screw |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SURGE PROTECTION OBO EN.pdf | 24 Mbytes |
|
