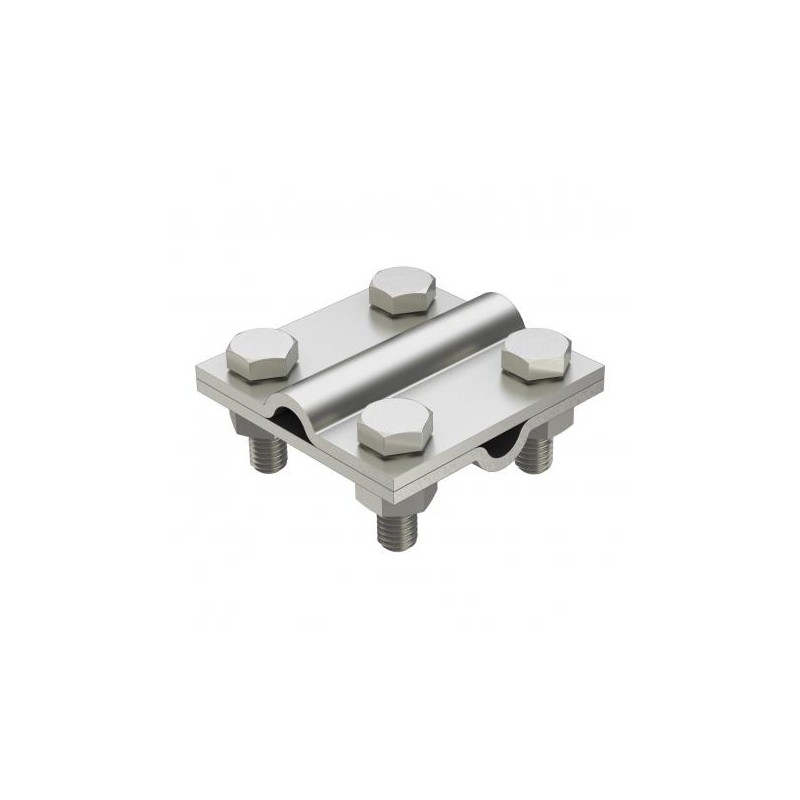

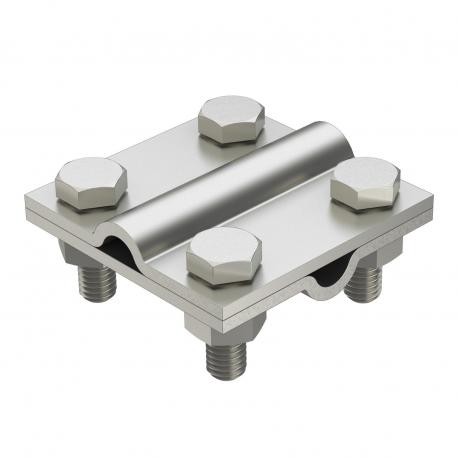

253 S3 V4A 5312594 OBO BETTERMANN Cross connector redon./redon. 253 S3 V4A, without intermediate plate 8-10m..
253 S3 V4A
5312594
OBO BETTERMANN
3400
Cross connector redon./redon. 253 S3 V4A, without intermediate plate 8-10mm Stainless steel 1.4401, V4A, 1.4401
Cross-connector round/round without intermediate plate A4. • Meets the requirements of VDE 0185-305-3 (IEC/ EN 62305-3)• Fit: Rd 8–10 x Rd 8–10• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8 (F)
TBS Transient and lightning protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 1,1945 kg CO2e / 1 Piece |
|---|---|
| Dimension | 8-10mm |
| Fit | Rd 8-10 mm |
| Intermediate plate | no |
| Lightning current carrying capacity | H/100 kA |
| Material | Stainless steel 1.4401 |
|---|---|
| Suitable for connection | Round conductor Rd 8–10 / Rd 8–10 |
| Type of connector | Cross-connectors |
| Type of fastening screw | Hexagonal bolt |
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Stainless steel 316 |
| Type of fastening screws (EF000609) | Hexagon screw |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SURGE PROTECTION OBO EN.pdf | 24 Mbytes |
|
