1814 FT D14 5014471 OBO BETTERMANN Connection terminal, for armatures 6-14mm, 47x22x55, hot dip galvanized s..
1814 FT D14
5014471
OBO BETTERMANN
25

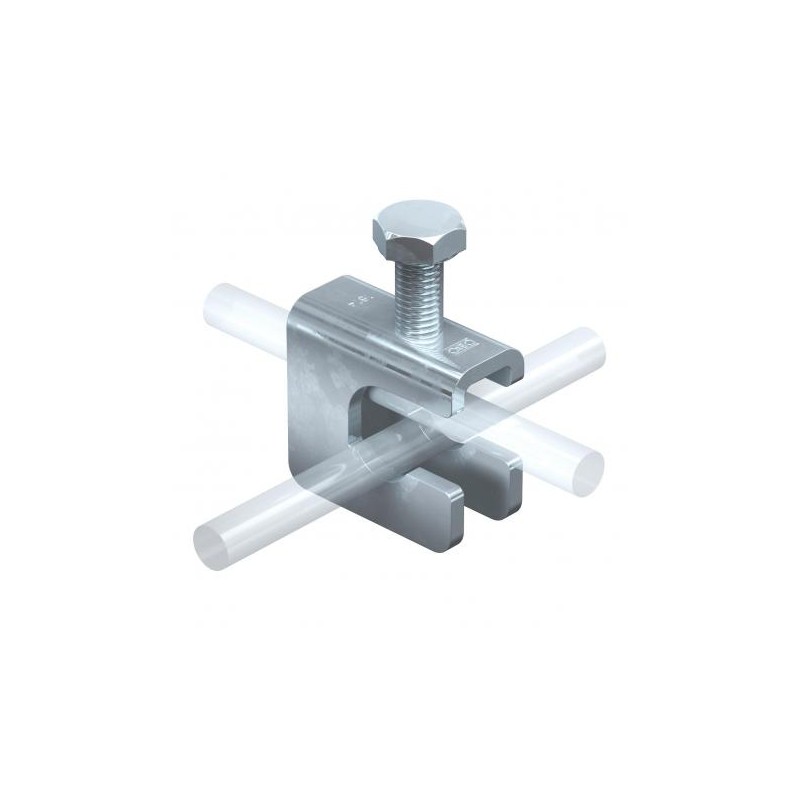

Connection terminal, for armatures 6-14mm, 47x22x55, hot dip galvanized steel, DIN EN ISO 1461
VARIO earthing terminal for reinforced steels. • For reinforced steel with 6–14 mm diameter and round and flat conductors• Rapid installation using elongated open slot and only one M10 bolt
TBS Transient and lightning protection systems - OBO BETTERMANN
Brand new product in its original packaging covered by the warranties and certifications provided by OBO BETTERMANN
Related products
▲Best sellers
▲More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,521 kg CO2e / 1 Piece |
|---|---|
| Dimension | 47x22x55 |
| Earthing connection diameter | Other |
| Fit | FL30x3-4mm /Rd 8-10 x Rd 6-14 mm |
| Flat conductor width, conductor 1, max. | 30 mm |
| Flat conductor width, conductor 1, min. | 20 mm |
| Lightning current carrying capacity | N/50 kA |
| Material | Steel |
| Round conductor diameter, conductor 1, max. | 10 mm |
|---|---|
| Round conductor diameter, conductor 1, min. | 8 mm |
| Round conductor diameter, conductor 2, max. | 14 mm |
| Round conductor diameter, conductor 2, min. | 8 mm |
| Suitable for connection | Miscellaneous |
| Surface | Hot-dip galvanised |
| Type of connector | Multipurpose connection clamp |
| Type of fastening screw | Hexagonal bolt |
| Feature Name | Feature Value |
|---|---|
| Material (EF002169) | Steel |
| Surface protection (EF000139) | Hot dip galvanized |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SURGE PROTECTION OBO EN.pdf | 24 Mbytes |
|
