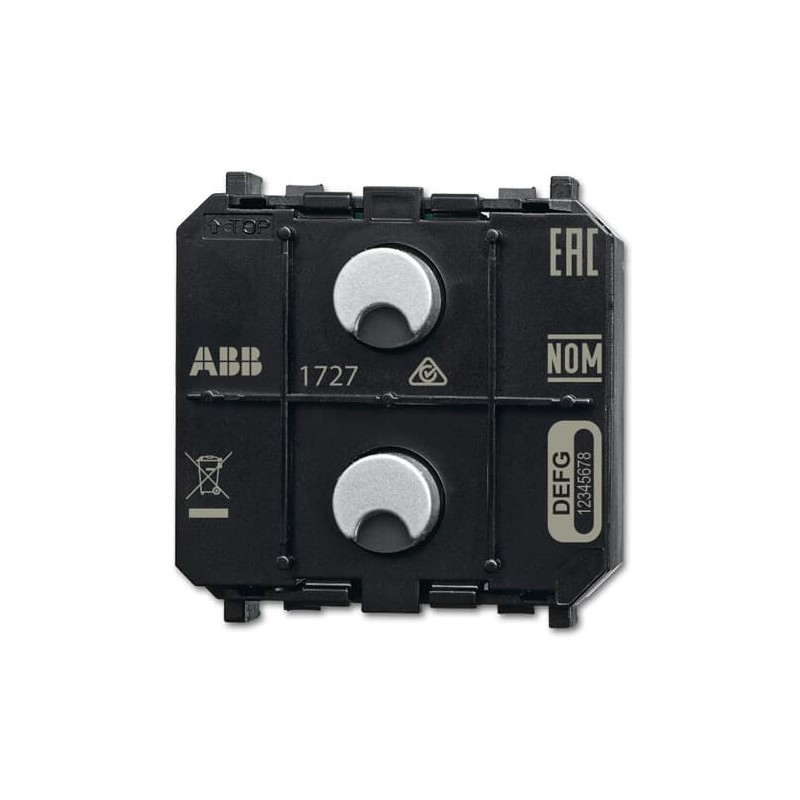

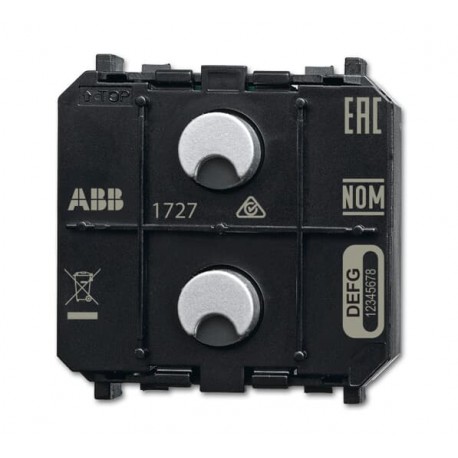

2CKA006200A0106 SU-F-1.0.PB.1-WL NIESSEN Sensor 1 channel, WL
2CKA006200A0106
SU-F-1.0.PB.1-WL
NIESSEN
Sensor 1 canal, WL
Sensor 1 channel, WL
For transmitting switching, push-button, dimming and blind commands to an ABB-free@home® actuator. Communication with the free@home system is carried out wireless. For contacting 1gang rocker 6230-10-xxx, 6231-10-xxx, 6232-10-xxx, 6233-10-xxx und 6234-10-xxx. With fixing claws.
Installation bus systems > Touch sensor for bus system
Home Automation
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲- Extended Product Type:
- SU-F-1.0.PB.1-WL
- Product ID:
- 2CKA006200A0106
- EAN:
- 4011395215951
- Catalog Description:
- SU-F-1.0.PB.1-WL WL-Sensor Unit 1gang, 44
- Long Description:
- For transmitting switching, push-button, dimming and blind commands to an ABB-free@home® actuator. Communication with the free@home system is carried out wireless. For contacting 1gang rocker 6230-10-xxx, 6231-10-xxx, 6232-10-xxx, 6233-10-xxx und 6234-10-xxx. With fixing claws.
Installation
- Instructions and Manuals:
- No document needed
Technical
- Data Sheet, Technical Information:
- No document needed
- Rated Voltage (Ur):
- 230 V
- Auxiliary Voltage AC/DC:
- 230 V AC/DC
- Rated Frequency (f):
- 50 ... 60 Hz
- Number of Buttons:
- 1
- Number of Actuation Points:
- 2
- Compatible Bus Systems:
- free@home (TP)
- Product Range:
- free@home
- Mounting Type:
- Flush Mounted
- Number of Batteries:
- 0
- Application Function:
- Data Communication / Multimedia
Environmental
- Ambient Air Temperature:
- Operation -5 ... +45 °C
- Degree of Protection:
- IP20
- RoHS Status:
- Following EU Directive 2002/95/EC August 18, 2005 and amendment
- RoHS Information:
- 9AKK104295D8727
- REACH Declaration:
- 2CKA309999E9999
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 45mm
- Product Net Height:
- 45mm
- Product Net Depth / Length:
- 40mm
- Product Net Weight:
- 40.5g
- Built-In Depth (t2):
- 32 mm
Ordering
- Replaced Product ID (OLD):
- 6200-0-0106
Certificates and Declarations
- Declaration of Conformity - CE:
- 2CKA100000E3568
Classifications
- ETIM 8:
- EC000672 - Touch sensor for bus system
- ETIM 9:
- EC000672 - Touch sensor for bus system
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 8517 62 00
- eClass:
- V11.0 : 27143138
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CKA006200A0106 SU-F-1.0.PB.1-WL EN_2CKA006200A0106.pdf | 129 Kbytes |
|
