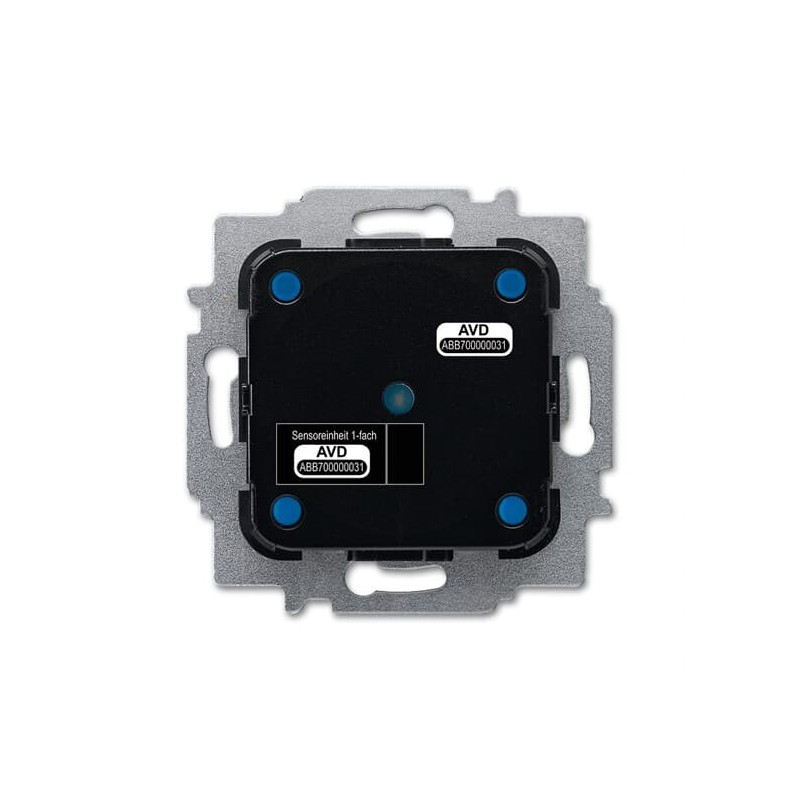

2CKA006200A0072 SU-F-1.0.1-WL NIESSEN Sensor 1 channel, WL
2CKA006200A0072
SU-F-1.0.1-WL
NIESSEN
Sensor 1 channel, WL
WL-Sensor Unit 1gang
Home Automation
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Mounting Type | Flush Mounted |
| Modular Components Included | Flush Mounted Insert with Control Element |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +45 °C |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 2CKA001473B9110 |
| Number of Buttons | 1 |
| Number of Actuation Points | 2 |
| Compatible Bus Systems | free@home wireless |
| Product Range | free@home |
| Number of Batteries | 0 |
| Electrical | |
| Rated Voltage (Ur) | 230 V |
| Auxiliary Voltage AC/DC | 230 V AC |
| Rated Frequency (f) | 50 / 60 Hz |
| Design | |
| Design Range | Platform 63 |
| Busch-Duro 2000 SI | |
| Reflex SI | |
| Busch-art linear | |
| future linear | |
| Busch-axcent | |
| solo | |
| Pure Stainless Steel | |
| carat | |
| Busch-Dynasty | |
| Design Range Variant | Busch-Duro 2000 SI |
| Busch-Duro 2000 SI Linear | |
| Reflex SI | |
| Reflex SI Linear | |
| Busch-art linear | |
| Busch-art linear - with Decor Ring | |
| Busch-art linear - pur | |
| future | |
| future linear | |
| Busch-axcent | |
| Busch-axcent pur | |
| Dimensions | |
| Product Net Width | 71 mm |
| Product Net Height | 71 mm |
| Product Net Depth / Length | 33 mm |
| Product Net Weight | 87 g |
| Built-In Depth (t2) | 32 mm |
| Engineering | |
| Building Information Modeling – BIM | 9AKK108471A9951 |
| 9AKK108470A7605 | |
| Ordering | |
| E-Number (Finland) | 2815610 |
| E-Number (Norway) | 4549650 |
| Material Compliance | |
| RoHS Declaration | 2CKA200000E7837 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CKA309999E9999 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230825 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CKA100000E2637 |
| External Classifications and Standards | |
| ETIM 9 | EC000672 - Touch sensor for bus system |
| ETIM 10 | EC000672 - Touch sensor for bus system |
| eClass | V11.0 : 27143138 |
| UNSPSC | 39121801 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CKA006200A0072 SU-F-1.0.1-WL EN_2CKA006200A0072.pdf | 106 Kbytes |
|
