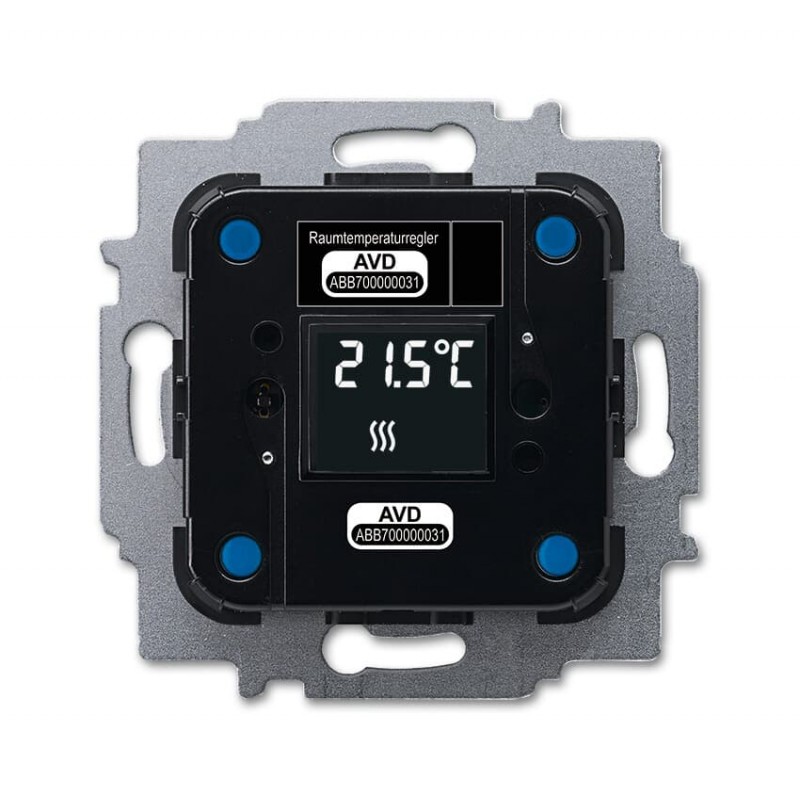

2CKA006200A0081 RTC-F-1-WL NIESSEN Termostato de empotrar, WL
2CKA006200A0081
RTC-F-1-WL
NIESSEN
Termostato de empotrar, WL
Recessed thermostat, WL
WL-Room thermostat
Home Automation
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Mounting Type | Flush Mounted |
| Modular Components Included | Flush Mounted Insert with Control Element |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +45 °C |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 2CKA001373B9196 |
| Compatible Bus Systems | free@home wireless |
| Product Range | free@home Wireless |
| free@home | |
| Transmission Standard | Wireless |
| Electrical | |
| Rated Voltage (Ur) | 230 V |
| Auxiliary Voltage AC/DC | 230 V AC/DC |
| Rated Frequency (f) | 50 / 60 Hz |
| Dimensions | |
| Product Net Width | 0.098 m |
| Product Net Height | 0.103 m |
| Product Net Depth / Length | 0.047 m |
| Product Net Weight | 98.7 g |
| Built-In Depth (t2) | 32 mm |
| Screen Size | 1 in |
| Engineering | |
| Building Information Modeling – BIM | 9AKK108470A7623 |
| Ordering | |
| E-Number (Finland) | 2815619 |
| E-Number (Norway) | 4549659 |
| E-Number (Sweden) | 1701233 |
| Material Compliance | |
| RoHS Declaration | 2CKA200000E4798 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 2CKA309999E9999 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| REACH Date | 20250901 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CKA200000E4798 |
| EU Data Act Compliance Declaration | 9AKK108471A4355 |
| EU Data Act Applicability and Compliance | Applicable - Compliant |
| External Classifications and Standards | |
| ETIM 9 | EC001101 - Room temperature controller for bus system |
| ETIM 10 | EC001101 - Room temperature controller for bus system |
| eClass | V11.0 : 27143133 |
| UNSPSC | 39121803 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CKA006200A0081 RTC-F-1-WL EN_2CKA006200A0081.pdf | 106 Kbytes |
|
