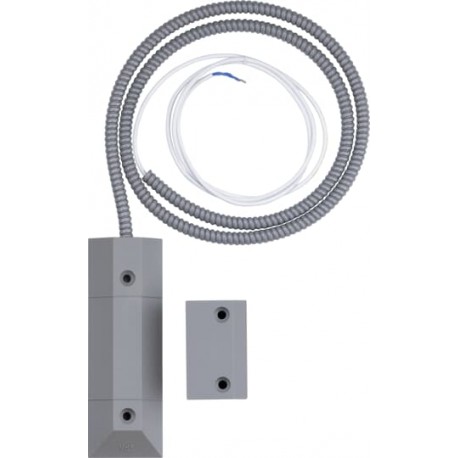

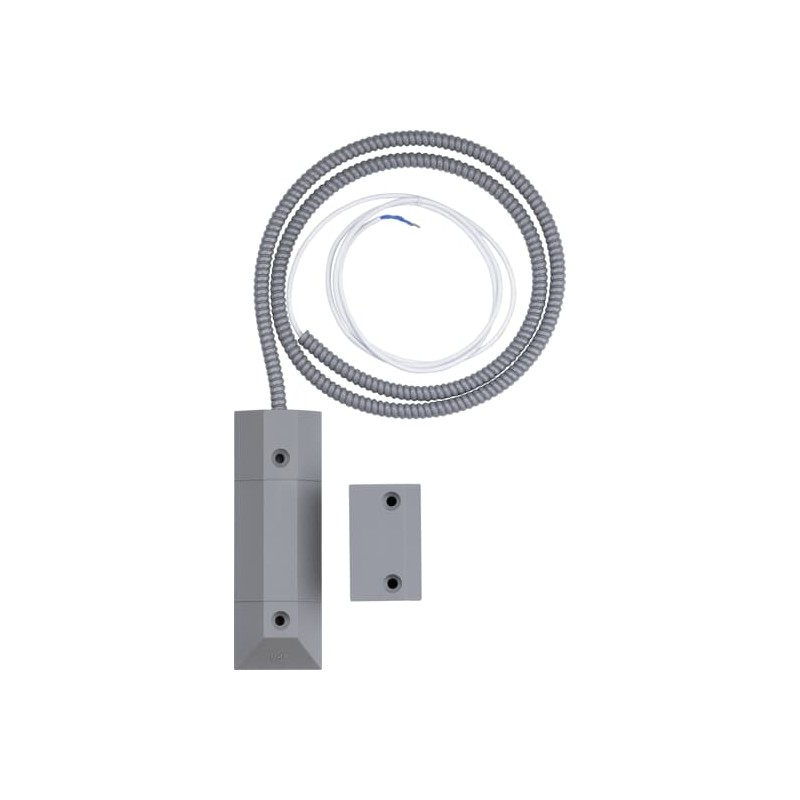

2CDG250006R0011 MC-C1.1 NIESSEN Set de Contacto Magnético para Puerta Giratoria
2CDG250006R0011
MC-C1.1
NIESSEN
Set de Contacto Magnético para Puerta Giratoria
Magnetic Contact Set for Revolving Door
MC-C1.1 Rolling Door Reed Contact,Gr. 2
Alarm installations, emergency call and signalling > Opening detector for intrusion detection system
KNX-EIB
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CDG941218P0001 |
| Wiring Diagram | 9AKK108469A6957 |
| Mounting Type | Surface Mounted |
| Environmental | |
| Degree of Protection | IP67 |
| Technical | |
| Data Sheet, Technical Information | 2CDC513083D0211 |
| Number of Digital Inputs | 0 |
| Manual Operation | No |
| Number of Batteries | 0 |
| Electrical | |
| Voltage Range | 10 ... 30 V DC |
| Power Loss | 0 W |
| Design | |
| Color | grey |
| Dimensions | |
| Product Net Width | 50 mm |
| Product Net Height | 16.5 mm |
| Product Net Depth / Length | 146 mm |
| Product Net Weight | 0.29 kg |
| Dimension Diagram | 9AKK108464A0857 |
| Material Compliance | |
| RoHS Declaration | 2CDK513086D2701 |
| RoHS Information | Following EU Directive 2011/65/EU |
| REACH Declaration | 9AKK108471A7754 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20251203 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CDK513086D2701 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC001761 - Opening detector for danger detection system |
| ETIM 10 | EC001761 - Opening detector for danger detection system |
| eClass | V11.0 : 27390312 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CDG250006R0011 MC-C1.1 EN_2CDG250006R0011.pdf | 85 Kbytes |
|
