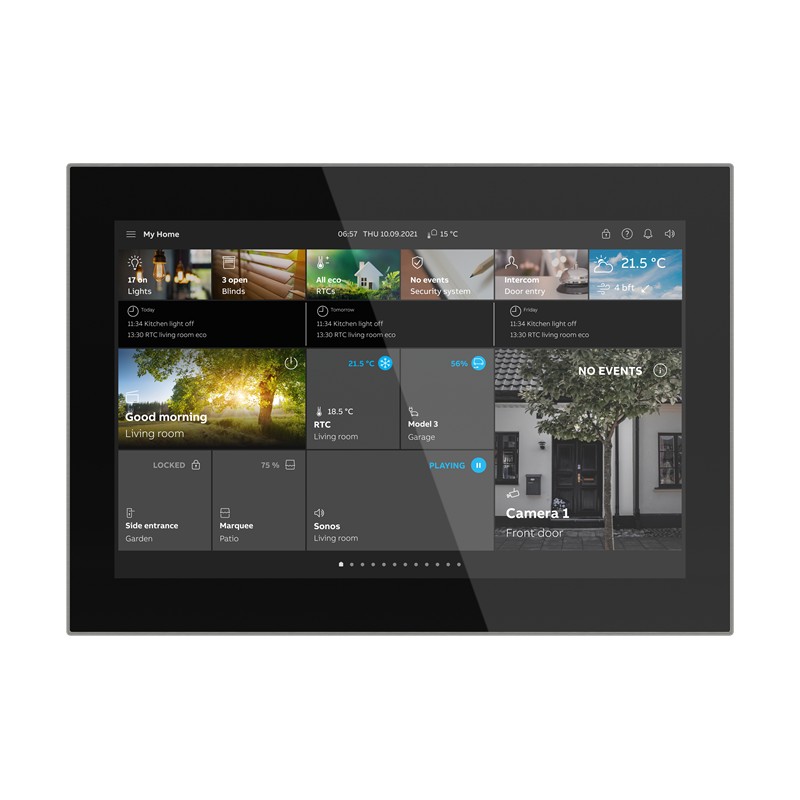

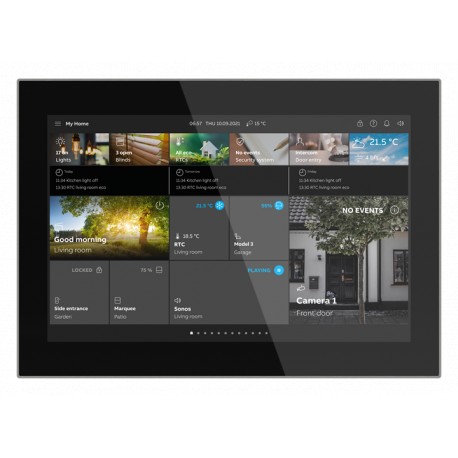

2TMA310051B0001 ST/U10.1.1-825 NIESSEN SmartTouch 10 NG/steel
2TMA310051B0001
ST/U10.1.1-825
NIESSEN
SmartTouch 10 NG/steel
Freely programmable Touch panel featuring a 10-inch IPS screen with 1280*800 resolution that combines smart home automation and door communication in one device for residential applications, hotels, and commercial buildings. SmartTouch 10 offers home control and monitoring of the free@home, or KNX system and the fully integrated functions of ABB Welcome®.Control, observe and manage your entire installation on one device: Switching - Dimming - Slider - Blind - RGBW control element - Step switch - Scene switch - Display element - Audio control element. With scene function, logic functions, presence simulation and time programs. SmartTouch® 10” can also be used as an end device for communication with the ABB-Welcome outdoor stations, and as part of the ABB-Welcome door communication system.FunctionsKNX: • A total of 450 control elements are displayed on a maximum of 25 pages. • 80 fault and alarm messages• 30 logic functions• 40 timers• presence simulation for 20 participants • 10 scene actuators • 3 object RTC• Equipped with a hearing loop for coupling the audio signal into hearing aids • Page display with a maximum of 18 touch surfaces on one page free@home:• Twisted pair connection provides a single page with a maximum of 18 controls. • Alternatively, for additional control, connection via wi-fi delivers the same amount of control and features as the free@home App.Welcome:• Integrated IP Gateway• Possibility to integrate ONVIF IP camerasExternal power supply: 20-32 VDC (SELV) or via the ABB-Welcome system controller. Display size: 25,4cm (10”): Display resolution: 1280*800 : Display screen: IPS displayDimensions (L x W x D): (180.2mm x 254.6mm x 17.5mm)Flush or wall mounted, mount for desktop installationThe flat design slim real metal frame sits almost flush with the wall (14mm) and is available in 4 colours (stainless steel, anthracite, gold and rose gold) and black or white glass.
Home Automation
* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
More info
▲- Extended Product Type:
- ST/U10.1.1-825
- Product ID:
- 2TMA310051B0001
- EAN:
- 6955891819443
- Catalog Description:
- ST/U10.1.1-825 SmartTouch 10 B/stainless
- Long Description:
- Freely programmable Touch panel featuring a 10-inch IPS screen with 1280*800 resolution that combines smart home automation and door communication in one device for residential applications, hotels, and commercial buildings. SmartTouch 10 offers home control and monitoring of the free@home, or KNX system and the fully integrated functions of ABB Welcome®.
Control, observe and manage your entire installation on one device: Switching - Dimming - Slider - Blind - RGBW control element - Step switch - Scene switch - Display element - Audio control element. With scene function, logic functions, presence simulation and time programs. SmartTouch® 10” can also be used as an end device for communication with the ABB-Welcome outdoor stations, and as part of the ABB-Welcome door communication system.
Functions
KNX:
• A total of 450 control elements are displayed on a maximum of 25 pages.
• 80 fault and alarm messages
• 30 logic functions
• 40 timers
• presence simulation for 20 participants
• 10 scene actuators
• 3 object RTC
• Equipped with a hearing loop for coupling the audio signal into hearing aids
• Page display with a maximum of 18 touch surfaces on one page
free@home:
• Twisted pair connection provides a single page with a maximum of 18 controls.
• Alternatively, for additional control, connection via wi-fi delivers the same amount of control and features as the free@home App.
Welcome:
• Integrated IP Gateway
• Possibility to integrate ONVIF IP cameras
External power supply: 20-32 VDC (SELV) or via the ABB-Welcome system controller.
Display size: 25,4cm (10”): Display resolution: 1280*800 : Display screen: IPS display
Dimensions (L x W x D): (180.2mm x 254.6mm x 17.5mm)
Flush or wall mounted, mount for desktop installation
The flat design slim real metal frame sits almost flush with the wall (14mm) and is available in 4 colours (stainless steel, anthracite, gold and rose gold) and black or white glass.
Accessories
| Identifier | Description | Type | Qty | Unit Of Measure |
|---|---|---|---|---|
| 2CKA008300A0478 | 83506-500 Desktop stand | 83506-500 | 1 | piece |
Installation
- Instructions and Manuals:
- 2CKA001473B5343
- Instructions and Manuals (Part 2):
- 2CKA001373B5343
Circular Value
- Circular Design Principles Recyclability Rate:
- Design for Closing Resource Loops - Standard EN45555 - 38.8 %
- Sustainable Material Content in Packaging:
- Recycled Cardboard - 93 %
- Offered with Extended Lifetime:
- Product Upgradability
- Offered with Takeback Services:
- Take Back for Recycling
Eco Transparency
- Environmental Product Declaration - EPD:
- 9AKK108469A0173
Technical
- Data Sheet, Technical Information:
- 2CKA001373B5351
- Rated Voltage (Ur):
- 20 ... 32 V
- Auxiliary Voltage AC/DC:
- 24 V DC
- Communication Interface:
- LAN
- Compatible Bus Systems:
- KNX (TP)
Welcome
free@home wireless
- Product Range:
- free@home
KNX
Welcome
- Display Type:
- TFT Touch Display
- Mounting Type:
- Flush Mounted
Surface Mounted
- Housing Material:
- Plastic
- Material:
- Glass
Plastic
Aluminium
- Manual Operation:
- Yes
- Mounting Position:
- horizontal
- Color:
- stainless steel
- Number of Batteries:
- 0
- Screen Size:
- 10 in
- Application Function:
- Blind / Shutter / Shading Control
Electrical Load and Light Control
Data Communication / Multimedia
Room Climate Control
Safety and Security
Environmental
- Ambient Air Temperature:
- Operation 0 ... +45 °C
- Degree of Protection:
- IP20
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information:
- 2CKA200000E7716
- REACH Declaration:
- 2CKA309999E9999
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 180.2mm
- Product Net Height:
- 17.5mm
- Product Net Depth / Length:
- 254.6mm
- Product Net Weight:
- 793g
Certificates and Declarations
- Declaration of Conformity - CE:
- 2CKA100000E4595
Classifications
- ETIM 8:
- EC000783 - Signalling and operation panel for bus system
- ETIM 9:
- EC000783 - Signalling and operation panel for bus system
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 8517 79 00
- eClass:
- V11.0 : 27143101
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF Catalogue Sky Niessen EN.pdf | 15 Mbytes |
|
| PDF Catalogue Zenit EN.pdf | 19 Mbytes |
|
| 2TMA310051B0001 ST/U10.1.1-825 EN_2TMA310051B0001.pdf | 941 Kbytes |
|
