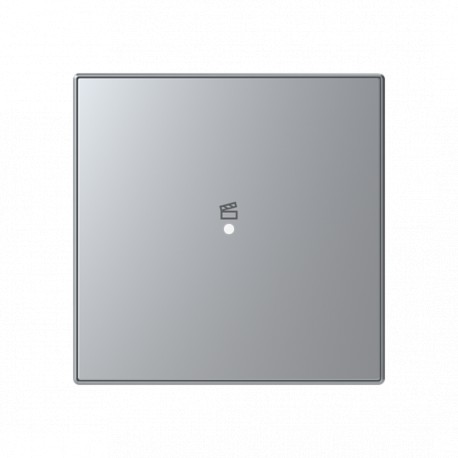

2CLA852627A1301 SRS-1-85PL NIESSEN Cover sensor F@H SKY 1 channel simb. Esc.
2CLA852627A1301
SRS-1-85PL
NIESSEN
Cover sensor F@H SKY 1 channel simb. Esc.
Sensor cover F@H Sky 1 can. Simb. esc. PL
Color: Silver.Cover plate for free@home sensors and sensor/actuators with 1-gang sensors code: SU-F-1.0.1, SSA-F-1.1.1, SDA-F-1.1.1, SBA-F-1.1.1, SU-F-1.0.1-WL, SSA-F-1.1.1-WL, SDA-F-1.1.1-WL, SBA-F-1.1.1-WL.Cover plate for KNX 1-gang sensors code: 6108/06-500.With Scene symbol.
Domestic switching devices > Control element/cover plate for domestic switching devices
Home Automation
* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
More info
▲- Extended Product Type:
- SRS-1-85PL
- Product ID:
- 2CLA852627A1301
- EAN:
- 8427238145068
- Catalog Description:
- Cover plate - free@home / KNX 1-gang sensors - Scene - Silver for Switch/push button Single push button Silver - Sky Niessen
- Long Description:
- Color: Silver.
Cover plate for free@home sensors and sensor/actuators with 1-gang sensors code: SU-F-1.0.1, SSA-F-1.1.1, SDA-F-1.1.1, SBA-F-1.1.1, SU-F-1.0.1-WL, SSA-F-1.1.1-WL, SDA-F-1.1.1-WL, SBA-F-1.1.1-WL.
Cover plate for KNX 1-gang sensors code: 6108/06-500.
With Scene symbol.
Installation
- Instructions and Manuals:
- 2CLX850009A1001
Popular Downloads
- Marketing Video:
- 9AKK106930A1594
9AKK108468A9590
Technical
- Data Sheet, Technical Information:
- 9AKK107046A0356
- Application:
- Switch/push button
- Product Range:
- free@home
- Design Range:
- Sky Niessen
- Type of Fastening:
- Clamp
- Surface Finishing:
- Decor
Matt
- Material:
- Plastic
Thermoplastic
- Legend:
- Scene symbol
- Model Number:
- Single push button
- Color:
- Silver
- Application Function:
- Electrical Load and Light Control
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Degree of Protection:
- IP20
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- RoHS Information:
- 2CLC852627A1301
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 0.073m
- Product Net Height:
- 0.033m
- Product Net Depth / Length:
- 0.073m
- Product Net Weight:
- 0.023kg
Certificates and Declarations
- Declaration of Conformity - CE:
- No declaration needed
Classifications
- ETIM 8:
- EC000011 - Control element/cover plate for domestic switching devices
- ETIM 9:
- EC000011 - Control element/cover plate for domestic switching devices
- WEEE Category:
- Product Not in WEEE Scope
- CN8:
- 85389099
- UNSPSC:
- 39121704
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 2CLA852627A1301 SRS-1-85PL EN_2CLA852627A1301.pdf | 287 Kbytes |
 |
