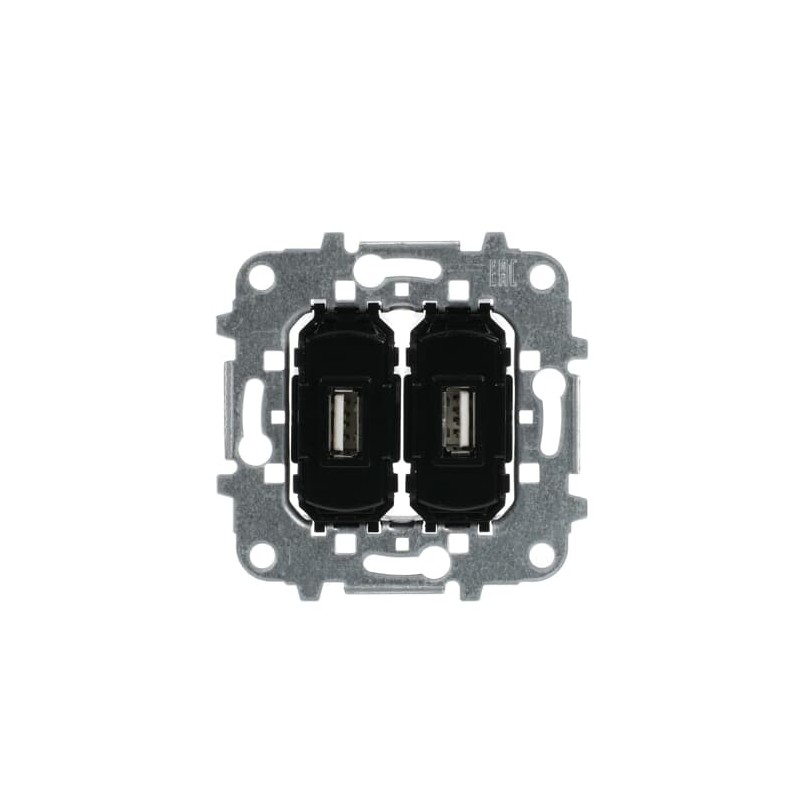

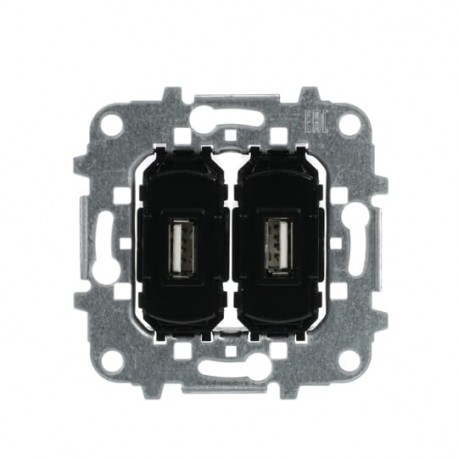

2CLA818530A1001 8185.3 NIESSEN Outlet USB charger 2 x 2A/5V
2CLA818530A1001
8185.3
NIESSEN
Outlet USB charger 2 x 2A/5V
USB charger socket 2 x 2A/5V
Voltage: 110-230V AC ± 10% Input frequency: 50 - 60Hz Input current: 0.20 A AC Output voltage: 5V DC +5 /-5% Output current: 2000 mA for each socket. Compatible with USB A connectors. Cap ref.: 8585.3
Domestic switching devices > USB power supply
Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲- Extended product type:
- 8185.3
- Product Code:
- 2CLA818530A1001
- EAN:
- 8427238163314
- Short description:
- USB Charger Socket 2 x 2A/5V Breakout cable with USB AA - Sky Niessen
- Long description:
- Voltage: 110-230V AC ± 10%
Input frequency: 50 - 60Hz
Input Current: 0.20 A AC
Output voltage: 5V DC +5 /-5%
Output current: 2000 mA for each socket.
Compatible with USB A connectors.
Cover ref.: 8585.3
Installation
- Instructions and manuals:
- 2CLX228519N1001
Technical
- Data sheet, technical information:
- 9AKK107046A0356
- Operating voltage:
- 100...240 V
- Output voltage (Uout):
- 5 V
- Maximum output current (Iout):
- 2000 mA
- Frequency (f):
- 50...60 Hz
- Nominal frequency (f):
- 50...60 Hz
- Number of outputs:
- 2
- Design Range:
- Sky Niessen
- Connection type:
- Push-In
- Mounting type:
- Flush Mounted
- Model Number:
- Breakout cable
- Number of batteries:
- 0
- App Function:
- Mobile Device Charging
Environment
- Ambient temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Degree of protection:
- IP20
- RoHS Status:
- Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
- Information about RoHS:
- 2CLC818530A1001
- REACH Declaration:
- 9AKK108467A7464
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product width:
- 0.070m
- Product height:
- 0.071m
- Product length:
- 0.043m
- Product Weight:
- 0.109kg
Certificates and Declarations (Document Number)
- Declaration of conformity - EC:
- 9AKK106930A1760
Classifications
- ETIM 8:
- EC002949 - USB power supply
- ETIM 9:
- EC002949 - USB power supply
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C/B2B:
- Business To Consumer
- CN8:
- 85043180
- UNSPSC:
- 39121406
