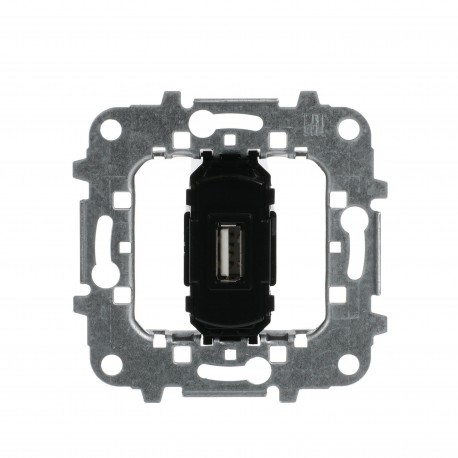

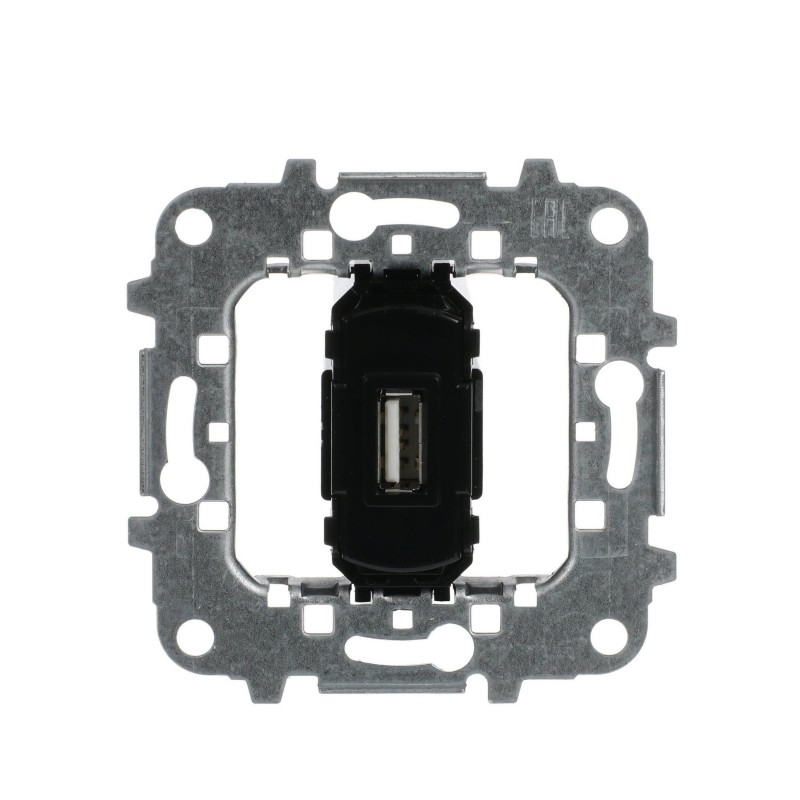

2CLA818520A1001 8185.2 NIESSEN Outlet USB charger 1 x 2A/5V
2CLA818520A1001
8185.2
NIESSEN
Outlet USB charger 1 x 2A/5V
USB charger socket 1 x 2A/5V
USB charger 2.000 mA, 1 outlet with USB A - Sky Niessen
Domestic switching devices > USB power supply
Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲| Installation | |
|---|---|
| Instructions and Manuals | 2CLX228519N1001 |
| Mounting Type | Flush Mounted |
| Environmental | |
| Ambient Air Temperature | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection | IP20 |
| Technical | |
| Data Sheet, Technical Information | 9AKK107046A0356 |
| Number of Outputs | 1 |
| Connection Type | Push-In |
| Accessories Available | Yes |
| Number of Batteries | 0 |
| USB Port Type | USB A |
| Electrical | |
| Operational Voltage | 100...240 V |
| Output Voltage (Uout) | 5 V |
| Output Current Maximum (Iout) | 2000 mA |
| Frequency (f) | 50...60 Hz |
| Rated Frequency (f) | 50...60 Hz |
| Design | |
| Design Range | Sky Niessen |
| Dimensions | |
| Product Net Width | 0.070 m |
| Product Net Height | 0.071 m |
| Product Net Depth / Length | 0.043 m |
| Product Net Weight | 0.078 kg |
| Material Compliance | |
| RoHS Declaration | 2CLC818520A1001 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Declaration | 9AKK108467A7464 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20230816 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B | Business To Consumer |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 9AKK106930A1760 |
| EU Data Act Applicability and Compliance | Not Applicable |
| External Classifications and Standards | |
| ETIM 9 | EC002949 - USB power supply |
| ETIM 10 | EC002949 - USB power supply |
| UNSPSC | 39121406 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CLA818520A1001 8185.2 EN_2CLA818520A1001.pdf | 144 Kbytes |
|
