2CLA815578A1001 8155.78 NIESSEN Connector VDI set 8155.7 + 8155.8
2CLA815578A1001
8155.78
NIESSEN

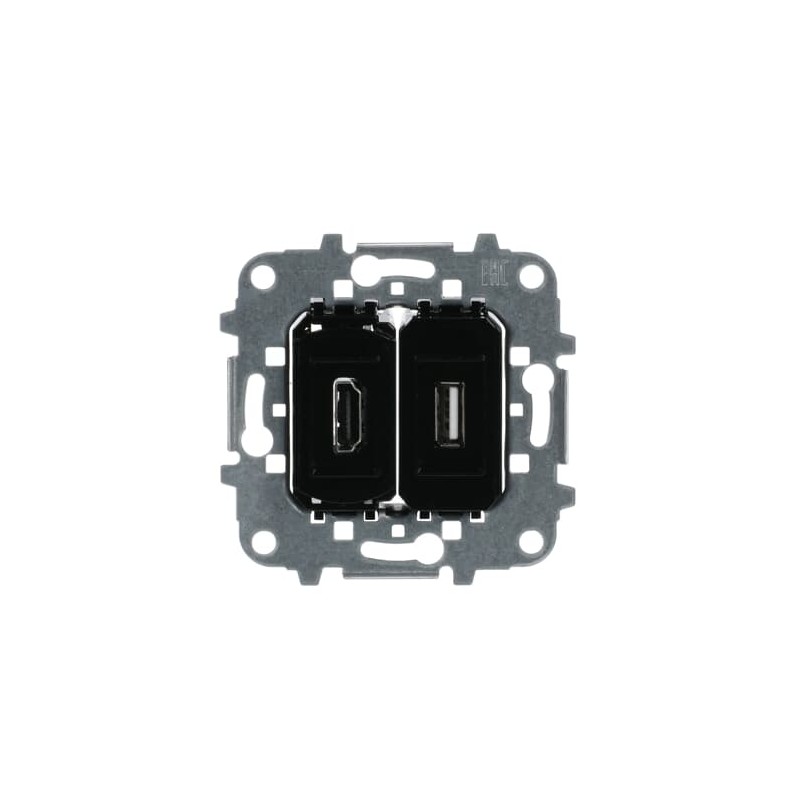

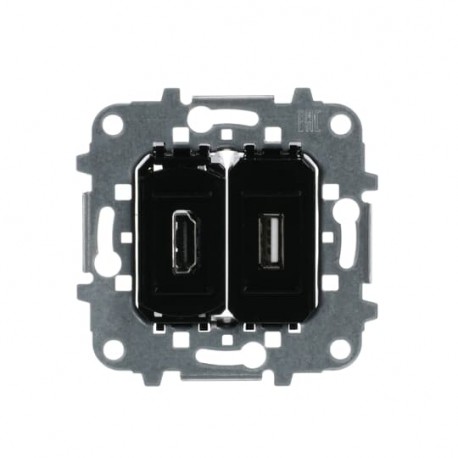

Connector VDI set 8155.7 + 8155.8
VDI Connector Set 8155.7 + 8155.8
Front: 1x HDMI connector (Type A connector) & 1xUSB 2.0 connector (Type A connector).Rear: 1x HDMI connector (Type A connector) fitted at 90º angle & USB screw terminals (5 wires).Supports HDMI 1.4 and 2.0Without fixing claws.Cover plate code: 8555.1.
Domestic switching devices > Insert/cover for communication technology
Industrial
* Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
More info
▲- Extended Product Type:
- 8155.78
- Product ID:
- 2CLA815578A1001
- EAN:
- 8427238172439
- Catalog Description:
- VDI connector 2gang No color
- Long Description:
- Front: 1x HDMI connector (Type A connector) & 1xUSB 2.0 connector (Type A connector).
Rear: 1x HDMI connector (Type A connector) fitted at 90º angle & USB screw terminals (5 wires).
Supports HDMI 1.4 and 2.0
Without fixing claws.
Cover plate code: 8555.1.
Installation
- Instructions and Manuals:
- No document needed
Technical
- Data Sheet, Technical Information:
- 9AKK107046A0356
- Design Range:
- Platform 8100
Alba
Sky Niessen
- Mounting Type:
- Flush Mounted
- Type of Fastening:
- Screw
- Outlet Orientation:
- Straight
- Color:
- No color
- Number of Batteries:
- 0
- Application Function:
- Data Communication / Multimedia
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Degree of Protection:
- IP20
- RoHS Status:
- Following EU Directive 2011/65/EU
- RoHS Information:
- 9AKK106930A1758
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 0.073m
- Product Net Height:
- 0.052m
- Product Net Depth / Length:
- 0.073m
- Product Net Weight:
- 0.072kg
Certificates and Declarations
- Declaration of Conformity - CE:
- No declaration needed
Classifications
- ETIM 8:
- EC000018 - Insert/cover for communication technology
- ETIM 9:
- EC000018 - Insert/cover for communication technology
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85369010
- UNSPSC:
- 39121463
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 2CLA815578A1001 8155.78 EN_2CLA815578A1001.pdf | 130 Kbytes |
 |
