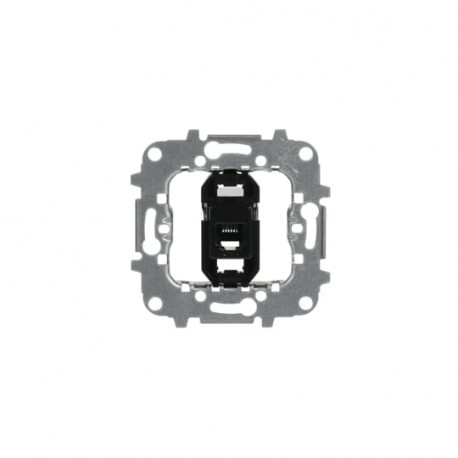

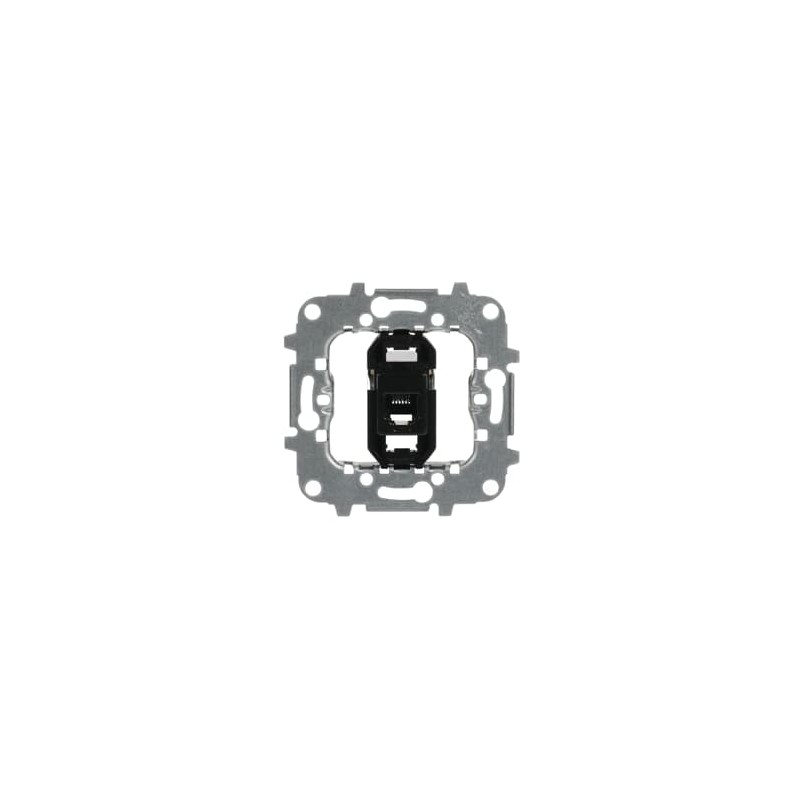

2CLA811700A1001 8117 NIESSEN Toma telefono 6 contactos
2CLA811700A1001
8117
NIESSEN
10
Toma telefono 6 contactos
Phone grab 6 contacts
Phone outlet Straight version For data connection housing 1gang No color
Domestic switching devices > Insert/cover for communication technology
Industrial
Brand new product in its original packaging covered by the warranties and certifications provided by NIESSEN
Best sellers
▲More info
▲- Extended Product Type:
- 8117
- Product ID:
- 2CLA811700A1001
- EAN:
- 8427238137872
- Catalog Description:
- Phone outlet For data connection housing 1gang No color
- Long Description:
- RJ12 type connector
6 contacts
Suitable for 2 (6P2C), 4 (6P4C) or 6 (6P6C) RJ11 and RJ12 jacks
Screw terminals
Without fixing claws
Cover plate code: 8517
Installation
- Instructions and Manuals:
- No document needed
Technical
- Data Sheet, Technical Information:
- 9AKK107046A0356
- Application:
- For data connection housing
- Design Range:
- Platform 8100
Alba
Sky Niessen
- Mounting Type:
- Flush Mounted
- Type of Fastening:
- Mounting with Screw
- Outlet Orientation:
- Straight
- Color:
- No color
- Number of Batteries:
- 0
- Application Function:
- Data Communication / Multimedia
Environmental
- Ambient Air Temperature:
- Operation -5 ... +35 °C
Storage -5 ... +50 °C
- Degree of Protection:
- IP20
- Conflict Minerals Reporting Template (CMRT):
- 9AKK108468A3363
Dimensions
- Product Net Width:
- 0.156m
- Product Net Height:
- 0.08m
- Product Net Depth / Length:
- 0.245m
- Product Net Weight:
- 0.046kg
Ordering
- Replaced Product ID (OLD):
- 2CL0811700
Certificates and Declarations
- Declaration of Conformity - CE:
- No declaration needed
Classifications
- ETIM 8:
- EC000018 - Insert/cover for communication technology
- ETIM 9:
- EC000018 - Insert/cover for communication technology
- WEEE Category:
- 5. Small Equipment (No External Dimension More Than 50 cm)
- WEEE B2C / B2B:
- Business To Consumer
- CN8:
- 85369010
- UNSPSC:
- 39121463
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE KNX & SOLUTION FOR BUILDINGS EN.pdf | 88 Mbytes |
|
| PDF CATALOGUE NIESSEN EN .pdf | 36 Mbytes |
|
| 2CLA811700A1001 8117 EN_2CLA811700A1001.pdf | 118 Kbytes |
|
